Electron Versus Hole Theory

2024-11-27 | By Jake Hertz

Two key concepts are central to understanding the behavior of materials in the study of semiconductors: electron theory and hole theory. Both deal with how charge carriers move through a semiconductor but approach the phenomenon from different perspectives. We will break down the core differences between these two theories, how they impact the behavior of materials, and their relevance in semiconductor technology.

Electron Theory: The Basics

Electron theory centers around the behavior of negatively charged electrons, which are responsible for current flow in conductive materials. In a pure semiconductor, such as intrinsic silicon, electrons fill the valence band, where they remain tightly bound to the atoms. When energy—whether from heat, light, or an external electric field—is applied, some of these electrons gain enough energy to break free from the valence band and transition into the conduction band.

Once in the conduction band, electrons become free charge carriers, capable of moving through the material and conducting current. This movement is vital to electrical conduction in n-type semiconductors, where the material is doped with donor atoms with more electrons than the host material. In this context, electrons are the primary charge carriers, and their mobility plays a formative role in determining the electrical characteristics of the semiconductor.

An important metric when discussing electron theory is electron mobility, which defines how quickly an electron can move through a material under the influence of an electric field. This mobility is determined by the interaction of electrons with the crystal lattice, impurities, and temperature. For instance, higher temperatures increase lattice vibrations (phonons), which impede the motion of electrons, reducing their mobility. Purity and defect levels in the material further influence how freely electrons can move, as impurities act as scattering centers that can trap or deflect electrons.

Hole Theory: The Complementary Perspective

While electron theory focuses on the physical movement of negatively charged particles, hole theory provides a complementary viewpoint.

When an electron vacates its position in the valence band and jumps to the conduction band, it leaves behind a vacancy. This absence of an electron is referred to as a "hole." Although it is not a physical particle, the hole behaves as though it carries a positive charge. For this reason, holes are often considered “quasiparticles.”

Electron Versus Hole Theory Holes and electrons in a P-N junction.

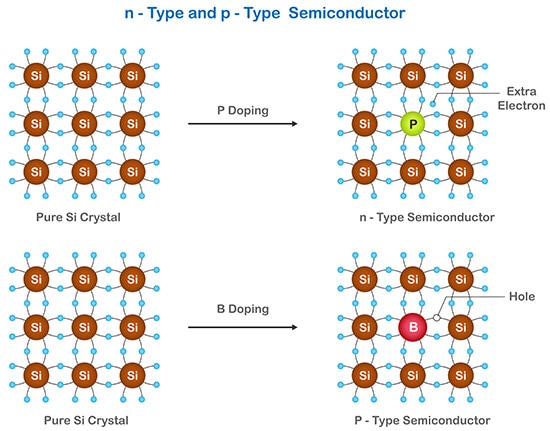

In p-type semiconductors, doping the material with acceptor atoms (which have fewer valence electrons than the host atoms) introduces more holes into the valence band. These holes act as the primary charge carriers. From a conceptual standpoint, current in p-type materials are carried by the movement of holes, though physically, this motion results from electrons filling vacancies in the valence band. As electrons jump between neighboring atoms to fill these holes, holes appear, moving in the opposite direction of the electron flow.

Hole mobility, while essential for p-type conduction, is generally lower than electron mobility due to the valence band’s nature. Electrons in the conduction band are free to move across the material, whereas holes depend on the less mobile valence band electrons shifting between atom sites. The crystal lattice structure and interactions within the valence band impose additional constraints on hole movement.

Comparing Electrons and Holes

Though both electrons and holes are responsible for current flow in semiconductors, they differ in several significant ways. First, electrons are actual particles with mass and negative charge, while holes are abstractions—essentially the absence of an electron—that behave as if they were positively charged particles. This distinction influences how each contributes to electrical conduction.

Electron mobility is typically much higher than hole mobility. Electrons, which move freely in the conduction band, are less affected by atomic interactions and impurities than holes, which rely on the constrained movement of valence electrons. As a result, devices that rely on electron flow (such as n-type semiconductors) tend to exhibit higher conductivity than those relying on holes (such as p-type semiconductors).

In a p-n junction, such as that found in diodes and transistors, both electrons and holes come into play. When a forward voltage is applied, electrons from the n-type region move toward the p-type region, where they recombine with holes. This recombination forms the basis for current flow in the device. In reverse bias, the depletion region formed between the n-type and p-type materials widens, preventing electron-hole recombination and effectively stopping current flow.

Practical Implications in Semiconductors

The distinction between electron and hole conduction impacts the design and operation of modern semiconductor devices.

In field-effect transistors (FETs), for example, the type of doping (n-type or p-type) dictates whether the majority carriers are electrons or holes. N-channel FETs rely on electrons as the primary charge carriers, while P-channel FETs depend on holes. Electron mobility being greater than hole mobility typically results in n-channel devices having faster switching speeds and higher efficiency, which is why they are more commonly used in high-performance applications.

LED photon emission occurs at a specific wavelength dependent on the semiconductor’s bandgap.

The interplay between electrons and holes also determines the performance characteristics of devices such as bipolar junction transistors (BJTs), where both charge carriers are needed for current amplification. In these devices, the behavior of electrons in the n-type regions and holes in the p-type regions must be carefully managed to ensure efficient operation.

Additionally, electron-hole pairs play an important role in optoelectronic devices like LEDs and solar cells. In LEDs, when electrons recombine with holes, they release energy in the form of light. In solar cells, the absorption of photons creates electron-hole pairs, which are then separated to generate electric current.

Conclusion

Electron and hole theory are two complementary concepts that provide a comprehensive understanding of charge transport in semiconductors. Electrons, as negative charge carriers, physically move through the conduction band, while holes, as conceptual positive carriers arise from vacancies in the valence band. The interaction of these charge carriers is at the heart of many semiconductor devices, from transistors to solar cells. By grasping the differences in their behavior and mobility, engineers can design and optimize materials and devices, from ultra-fast processors to highly efficient energy conversion systems.
