CLUE Metal Detector in CircuitPython

2024-06-24 | By Adafruit Industries

License: See Original Project Displays LCD / TFT Circuit Playground

Courtesy of Adafruit

Guide by Kevin Walters

Overview



This project creates a metal detector using an Adafruit CLUE with a ‎few common components and an easy-to-make coil.‎

The program is written in CircuitPython for version 5.1.0 or later. The ‎code also runs on the Circuit Playground Bluefruit (CPB) with the TFT ‎Gizmo screen. The program can be used without a screen on the ‎CPB in audio/light mode only.‎

Alligator clips to male jumpers can be used with or without the ‎Adafruit Dragontail to connect the CLUE and the coil to the ‎breadboard. The pictures feature alternate products.‎

This project was inspired by an old Ray Marston book featuring a ‎metal detector project and the Detectorists BBC TV series.‎

project_1

An Adafruit CLUE with a simple circuit on a breadboard detecting a metallised sticker with a coil.‎

Parts

CLUE version

Circuit Playground Bluefruit with TFT Gizmo version

Circuit Playground Bluefruit only version

Common

Design

design_2

Michael Faraday's experiment to demonstrate inductance in 1831, engraving from Magnetism and ‎Electricity by Arthur Poyser (1892).

Primary coil (A) attached to battery (on right), secondary coil (B) ‎attached to galvanometer (C).‎

Inductance is a key part of many technologies in daily life, for ‎example:‎

  • charging - electric toothbrushes, the latest smartphones and ‎some wireless, in-ear headphones;
  • heating - induction cooking with metal cookware;
  • communication - contactless smartcards using NFC, RFID tags ‎and traditional tuning circuits for radios;
  • power supplies - transformers reduce the mains AC voltage to a ‎more practical level;
  • metal detection - airport security, automatic car park exit gates, ‎pipe/cable finders and hunting for treasure.

Leon Theremin's The Thing is an interesting, minimalist example of a ‎resonant cavity microphone, the equivalent of using an inductor ‎for LC tuning, an application of band-pass filtering.‎

Inductance and Permeability

A current flowing produces a magnetic field around it. Inductors are ‎electrical components designed to store energy in that magnetic ‎field. These are typically coils and often wrapped around a core. The ‎magnetic field can be affected by:‎

  • the material it passes through, this property is referred to ‎as magnetic permeability
  • the presence of a conductor nearby changing the effective ‎inductance of the coil from the induced eddy currents in that ‎conductor creating their own magnetic field
  • other magnetic fields

These first two properties make the inductor useful for detecting ‎conductive objects.‎

MAKE Presents: The Inductor is an excellent video introduction to ‎inductors by Collin Cunningham.‎



Metal Detection

The effect of nearby conductors on an inductor makes them a useful ‎component for detecting metal. A classic implementation of this in ‎electronics uses heterodyning where the beat frequency from ‎mixing an inductor-based search oscillator with a reference oscillator ‎is output to headphones.‎

Beat Frequency from An Oscillator Pair

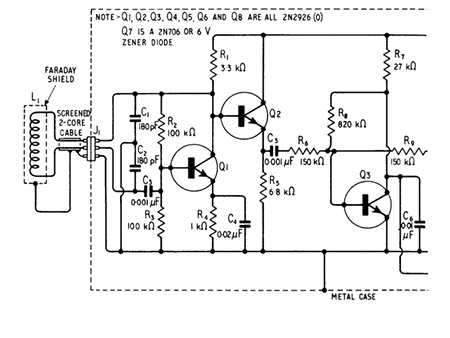

The schematic on the left from R.M. Marston's 20 Solid State Projects ‎For The Home (1969) shows a transistor-based detector with ‎two colpitts oscillators. One oscillator uses the search coil and the ‎other a tunable reference coil which the users adjust to reduce the ‎beat frequency audio output to near 0Hz away from the target ‎material.‎

beat_3

beat_4

RLC Filters

Filters can easily be created with a resistor (R), an inductor (L) and a ‎capacitor (C). There are a variety of configurations of RLC filters and ‎many of them could be used to filter the square wave output from a ‎microcontroller which could then be sampled to check the ‎attenuation of the filter which would vary with the inductance.‎

An initial test of this approach with an Adafruit CLUE and a low-pass ‎filter didn't yield promising results. The plots below show theoretical ‎plots for a band-stop (notch) filter made with a resistor and a parallel ‎LC circuit which might be worth exploring.‎

sensors_frames-rlc-bandstop-filter-response-magnitude

Bode plot for a band-stop (notch) passive R-LC filter. The different lines are for various resistor values. ‎The animation varies the inductance to show the frequency shift.‎

The lower resistor values might not be practical as they put a higher ‎current demand on the GPIO port.‎

The annotated linear plot below is better for seeing how this ‎attenuation could potentially be used to detect small variations in ‎inductance.‎

sensors_frames-rlc-bandstop-filter-response

A linear plot with an example measurement of signal magnitude at a specific frequency as the ‎inductance varies.‎

This would require sampling the 989Hz signal to determine the ‎attenuation by the filter. A high inductance is attractive here as it will ‎lower the frequency making the determination of the attenuation ‎more accurate.‎

A frequency sweeping approach is an alternative for finding the ‎frequency of the filter. This is likely to be slower, but it would be less ‎ambiguous. A simple measurement approach at one frequency, say ‎‎2.741V, corresponds to two frequencies and therefore two different ‎inductance values.‎

Charging a Capacitor with RLD

An Arduino-based project on Instructibles uses an RL circuit with the ‎output rectified with a diode which then charges a capacitor. The ‎steps in the measurement of the inductance are:‎

  1. A few pulses are output through the circuit to charge the ‎capacitor. A higher inductance will result in a higher final ‎voltage across the capacitor.
  2. An analogue input then measures the capacitor's voltage with ‎over-sampling aiming to improve the accuracy
  3. The analogue input is changed momentarily to output mode to ‎empty (sink) the charge from the capacitor.‎

A C++ program (sketch) on the Arduino Uno offers precise timing. ‎This is essential for this approach to give accurate results for the ‎inductance.‎

In CircuitPython, the pulseio library can be used for creating PWM ‎signals and pulse trains with microsecond precision. In general, as an ‎interpreted language with garbage collection, it does not offer ‎precise timing. The unpredictable delay between step 1 and step 2 is ‎likely to affect the final accuracy of the measurement causing ‎sporadic, spurious indications.‎

Continuous Charge/Discharge with RLD

The previous approach can be used in a continuous fashion where a ‎constant series of pulses flow through the RLD. A circuit diagram ‎from the Falstad Circuit Simulator is shown below.‎

sensors_circuit-sim-running-high-speed-current-one

Circuit simulation of the continuous charging approach. The 200-milliohm resistor represents the ‎parasitic resistance of the coil. The 400k is an estimate of the input impedance of the GPIO in analogue ‎input mode. (This is a short, animated loop hence the incorrect current flow on the right side of the ‎diode.)‎

This design could be considered as an RL filter with an envelope ‎detector.‎

The value of the capacitor affects how quickly it discharges. A tiny ‎capacitance will cause a rapid discharge causing a ripple which may ‎reduce the accuracy or complicate the voltage measurement. A ‎large capacitor value will take time to charge and discharge and this ‎could make the sensing unresponsive.‎

A value of 0.1uF (which can be written as 100nF) was chosen from ‎experimental testing. For comparison, a simulation with 100pF (top ‎left) shows a very undesirable 197mV of ripple whereas 0.1uF only ‎has ~1mV ripple.‎

design_5

design_6

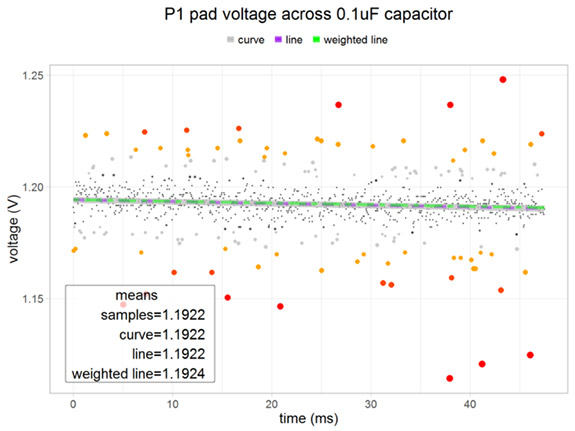

A small amount of steady voltage drops around 1mV is actually ‎useful here to ensure over-sampling is an effective technique to ‎improve the resolution. In the (unlikely) absence of noise or variation, ‎a theoretically perfect analogue to digital converter (ADC) would ‎output the same value repeatedly for a constant voltage. The ADC ‎Analysis page takes a closer look at this.‎

Two Coil Systems

Modern metal detectors using the induction balanced approach use ‎two, often partially overlapping search coils. One is used for ‎transmitting and one for receiving. A relatively small overlap will ‎create a section with increased sensitivity. These detectors can ‎discriminate to some extent between metals by reporting on ‎the phase difference between the transmitted and received signal. ‎This is typically presented to the user as a numerical value with ‎different ranges giving an approximate identification. Garrett's chart ‎for their AT Pro metal detector is shown below.‎

chart_7

Garrett AT Pro metal detector numeric target identifier chart.‎

CLUE Metal Detector

Some initial testing of the Continuous Charge/Discharge with ‎RLD approach worked well so this was selected for the project.‎

The CLUE has an onboard LIS3MDL, a triple-axis magnetometer. This ‎is a useful addition for finding magnets and magnetised items.‎

Microcontrollers vs Inductors

sensors_electroboom-inductor-3leds

Three LEDs with a combined forward voltage of approximately 9V lit by a 1.5V battery with an inductor in ‎series shown at 0.5x speed from Magic of Magnetism and Inductors by ElectroBOOM.‎

Microcontrollers vs Inductors

Inductors can generate high voltages which may exceed the desired ‎levels in a circuit. The video above shows a single-cell battery ‎connected to an inductor (top right) in series with three white LEDs. ‎The white LEDs require over 9V to illuminate but a mere 1.5V battery ‎is able to briefly illuminate them due to the inductor's effect.‎

In this case the red wire is being used to briefly short across the non-‎conducting LEDs to allow current to flow from the battery through ‎the inductor. The inductor is storing energy in its magnetic field and ‎this field products the momentary higher voltage as the red wire is ‎removed from the circuit. This demonstration of voltage spikes ‎suggests care is required when using inductors in circuits to keep ‎voltage levels at normal levels to avoid damaging sensitive ‎components.‎

TDK, a company founded on the invention of ferrite, offers an ‎explanation of this below with a parallel version of the circuit lighting ‎a 70V neon lamp from a 4.5V battery. This is from TDK's The ‎Wonders of Electromagnetism: Power Inductors in Mobile Phones.‎

explanation_8

Explanation of self-induction and generating voltage spikes with an inductor in parallel. Copyright TDK ‎Corporation.‎

GPIO Protection

The general-purpose input/output (GPIO) pins on microcontrollers ‎typically have some limited protection built-in for adverse voltages ‎often to deal with static electricity (ESD). The CLUE board uses ‎an nRF52 series chip and this has two internal diodes on each GPIO ‎pin. The partial schematic below shows an example of how these ‎two diodes are used for one pin.‎

partial_9

Partial schematic showing one example of a reverse-biased diode pair inside the nRF52840 ‎microcontroller protecting input and output against over/under voltage. The CLUE board's 1M resistor to ‎facilitate touch input is also shown.‎

The schematic shows the CLUE board's 1 Megaohm resistor. There's ‎one resistor per large pad used for the capacitive ‎touch implementation. The schematic also shows ‎an external resistor. This is another precaution that's typically used to ‎limit output current, but it will also reduce any current flowing ‎through these very small, protective diodes in the microcontroller.‎

The metal detector circuit on the next page uses a resistor primarily ‎to limit the current from the P1 output but it will also reduce any ‎adverse currents from under or over voltages caused by the inductor.‎

The square wave (3.3V pk-pk, 84% duty cycle) can be seen with and ‎without the inductor in the circuit here. The inductor does cause a ‎small negative voltage which briefly "peaks" at -0.6V on ‎the P1 pin/pad. The magnitude and brevity of this spike and the ‎current protection from the external 1k resistor mean the ‎microcontroller is not at risk.‎

circuit_9

circuit_10

Larger Coil Currents

If more current was being used through the coil, then an external ‎protection diode capable of handling this higher current would be a ‎wise precaution. The CLUE's nRF52840 can only supply low currents, ‎higher currents would need a separate power supply and switching ‎with a transistor. This could aid isolation of the GPIO from the ‎maleffects of the voltage spikes.‎

Diodes are commonly found across motors, relays and solenoids ‎protecting against back EMF and are sometimes referred to ‎as "flyback" diodes.‎

Circuit

version_11

Second version of coil, 28 turns around an 84mm (3.3in) diameter cylinder.‎

This page describes how the components are used on the ‎breadboard to make the circuit for the metal detector. It also ‎describes how to make and connect the coil.‎

Components

The components in the circuit are:‎

  • R1 - 1k resistor
  • D2 - 1N4148 signal diode (there is no D1)
  • C1 - 0.1uF (100nF) ceramic capacitor. These small capacitors are ‎often labelled "104"‎
  • L1 - home-made coil

The prototype was made with a 1N4004 rectifier diode and also ‎tested with a germanium diode from a crystal radio set, both worked ‎well and could be used as alternatives to the 1N4148 diode.‎

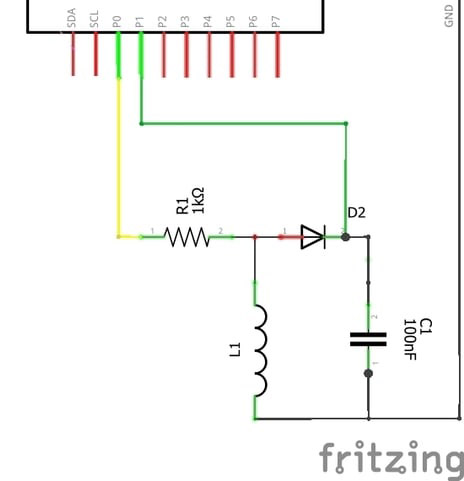

fritzing_12

Coil Construction

A coil with about 4-8m (13-26ft) is a good starting point to avoid ‎using too much wire. Insulated wire will work but "enamelled" ‎copper wire allows a more compact coil. The enamel is a misnomer, ‎the coating will be something like polyurethane varnish. This ‎insulation must be scraped or burnt off with a soldering iron at the ‎ends to expose the copper to connect it to the circuit.‎

The coil shown at the top of the page is enamelled 0.56mm wire ‎wrapped around an 84mm tube (3.3in). It has 12 coils then 9 more ‎coils over those then 7 coil more coils over those totalling 28. Placing ‎the coils close to the edge improves the effective search range but ‎care needs to be taken to ensure the coil does not fall off! A tiny ‎ridge has been made on end of the tube with masking tape to ‎reduce that risk.‎

The coil either needs to be very tight or held in place as movement ‎of the wire in the coil will subtly affect the inductance and parasitic ‎capacitance of the coil.‎

A prototype coil was also made (not shown) with 20 turns around a ‎core of a roll of masking tape with diameter 116mm (4.6in). This ‎worked well too.‎

Circuit Construction

The diagrams and pictures below show how the circuit can be ‎implemented on a breadboard for the three different configurations.‎

CLUE board

board_14

The breadboard showing the use of the Dragontail breakout board to connect CLUE's #0 (P0) and #1 (P1) ‎pads to circuit. The small inductor coil represents the large coil.‎

The coil needs to be connected to the breadboard. The options are:‎

  • Thick solid core wire may be directly inserted into the ‎breadboard. Tinning the end with solder will increase the ‎diameter of a wire and tame multi-strand wire.
  • A connector cable with male pins to alligator (crocodile) clips or ‎hooks (shown below). These will be needed for the Adafruit ‎enamelled wire.‎

breadboard_15

Breadboard for metal detector circuit. The CLUE is connected via a KItronik Edge Connector Breakout ‎Board out of shot. The blue and black leads at the bottom go to the coil. The diode is a 1N4148 signal ‎diode.‎

The CLUE board can be connected using the Dragontail or alligator ‎clips.‎

  • ‎#0 (P0) yellow wire - this is the square wave output.
  • #1 (P1) green wire - this is an analogue input measuring the ‎voltage across the capacitor.‎
  • GND black wire - this is only required if not using ‎the Dragontail. The Dragontail directly connects to the power ‎rails on one side of the breadboard.‎

It's best to insert or remove a CLUE board from an edge connector ‎with the power off to prevent inadvertent, transient short circuits.‎

Everything can be seen connected together in the picture below. ‎A Kitronik Edge Connector Breakout Board for BBC micro:bit (over ‎the top half of the breadboard) and Pimoroni IC hooks with ‎pigtails (to connect the coil) have been used for this implementation.‎

metal_16

Metal detector fully assembled. The blue and black wires/hooks to the inductor have been accidentally ‎swapped around for this photo - the electrons will not be concerned about this.‎

The circuit can only be tested once the CLUE has the CircuitPython ‎program on it. This is described on the next page.‎

If alligator clips are used, they need to be carefully placed in the ‎centre of the pad and protected from accidental nudges which ‎could cause the alligator clip to connect across the small pads either ‎side of #0, #1 or GND.‎

Circuit Playground Bluefruit with TFT Gizmo

The CPB board pads are not really accessible when the TFT Gizmo is ‎attached and most of them are used for the Gizmo. The Gizmo has 3-‎pin STEMMA connectors for accessing A1 and A2. A pair of STEMMA ‎‎3-Pin to male cables are required to connect this to the breadboard.‎

giz_17

The breadboard showing the Gizmo's STEMMA connections to the circuit. The small inductor coil ‎represents the large coil. Note: 1k resistor is not needed here.‎

The connections are:‎

  • A1 STEMMA (square wave output):
    • red - breadboard red (+) rail (not used).
    • white (yellow sleeves) - breadboard b22.‎
    • black - breadboard black (-) rail.‎
  • A2 STEMMA (analogue input):
    • red - breadboard red (+) rail (not used).‎
    • white (green sleeves) - breadboard e26.
    • black - breadboard black (-) rail.‎

assembled_18

Metal Detector fully assembled. The TFT Gizmo is mounted on a Circuit Playground Bluefruit. The ‎STEMMA cables have small sleeves on white signal cable to help distinguish them.‎

The TFT Gizmo has its own 1k resistors on the A1/A2 GPIO making the ‎resistor on the breadboard superfluous.‎

The red power lines are not used but plugging the pins into the ‎breadboard prevents them from accidentally contacting other ‎components or shorting to ground.‎

The red power lines from the STEMMA connector on the TFT Gizmo ‎are at VOUT level, i.e. 5V for USB power or the battery voltage.‎

Circuit Playground Bluefruit board only

The program still runs without a screen on a CPB board in ‎audio/light mode.‎

The connections are:‎

  • A1 (square wave output) - yellow wire - breadboard a18.‎
  • A2 (analogue input) - green wire - breadboard e26.‎
  • GND - black wire - breadboard black (-) rail.‎

connections_19

The breadboard showing the Circuit Playground Bluefruit connections to the circuit. The small inductor ‎coil represents the large coil. Note: 1k resistor is needed here.‎

CircuitPython on CLUE

CircuitPython is a derivative of MicroPython designed to simplify ‎experimentation and education on low-cost microcontrollers. It ‎makes it easier than ever to get prototyping by requiring no upfront ‎desktop software downloads. Simply copy and edit files on ‎the CIRCUITPY flash drive to iterate.‎

The following instructions will show you how to install CircuitPython. ‎If you've already installed CircuitPython but are looking to update it ‎or reinstall it, the same steps work for that as well!‎

Set up CircuitPython Quick Start!‎

Follow this quick step-by-step for super-fast Python power :)‎

Download the latest version of CircuitPython for CLUE from ‎circuitpython.org

Click the link above to download the latest version of ‎CircuitPython for the CLUE.‎

Download and save it to your desktop (or wherever is handy).‎

click_20

Plug your CLUE into your computer using a known-good USB cable.‎

A lot of people end up using charge-only USB cables and it is very ‎frustrating! So, make sure you have a USB cable you know is good ‎for data sync.‎

Double-click the Reset button on the top (magenta arrow) on your ‎board, and you will see the NeoPixel RGB LED (green arrow) turn ‎green. If it turns red, check the USB cable, try another USB port, ‎etc. Note: The little red LED next to the USB connector will pulse red. ‎That's ok!‎

If double-clicking doesn't work the first time, try again. Sometimes it ‎can take a few tries to get the rhythm right!‎

board_21

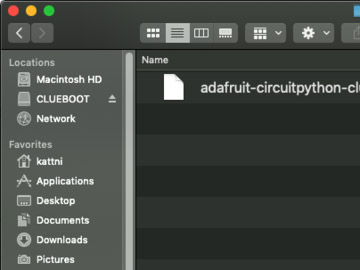

You will see a new disk drive appear called CLUEBOOT.‎

Drag the adafruit-circuitpython-clue-etc.uf2 file to CLUEBOOT.‎

drag_22

drag_23

The LED will flash. Then, the CLUEBOOT drive will disappear, and a ‎new disk drive called CIRCUITPY will appear.‎

If this is the first time, you're installing CircuitPython or you're doing ‎a completely fresh install after erasing the filesystem, you will have ‎two files - boot_out.txt, and code.py, and one folder - lib on ‎your CIRCUITPY drive.‎

If CircuitPython was already installed, the files present before ‎reloading CircuitPython should still be present on ‎your CIRCUITPY drive. Loading CircuitPython will not create new ‎files if there was already a CircuitPython filesystem present.‎

That's it, you're done! :)

flash_24

CircuitPython on Circuit Playground ‎Bluefruit

Install or Update CircuitPython

Follow this quick step-by-step to install or update CircuitPython on ‎your Circuit Playground Bluefruit.‎

Download the latest version of CircuitPython for this board via ‎circuitpython.org

Click the link above and download the latest UF2 file.

Download and save it to your Desktop (or wherever is handy).‎

download_25

Plug your Circuit Playground Bluefruit into your computer using a ‎known-good data-capable USB cable.‎

A lot of people end up using charge-only USB cables and it is very ‎frustrating! So, make sure you have a USB cable you know is good ‎for data sync.‎

Double-click the small Reset button in the middle of the CPB ‎‎(indicated by the red arrow in the image). The ten NeoPixel LEDs will ‎all turn red, and then will all turn green. If they turn all red and stay ‎red, check the USB cable, try another USB port, etc. The little red LED ‎next to the USB connector will pulse red - this is ok!‎

If double-clicking doesn't work the first time, try again. Sometimes it ‎can take a few tries to get the rhythm right!‎

‎(If double-clicking doesn't do it, try a single-click!)‎

plug_26

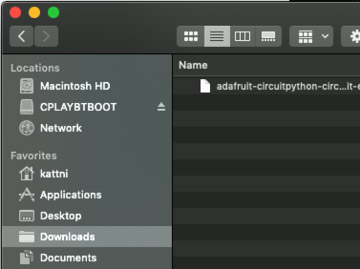

You will see a new disk drive appear called CPLAYBTBOOT.‎‎ ‎

‎Drag the adafruit_circuitpython_etc.uf2 file to CPLAYBTBOOT.‎

drive_27

drag_28

The LEDs will turn red. Then, the CPLAYBTBOOT drive will disappear, ‎and a new disk drive called CIRCUITPY will appear.‎

That's it, you're done! :)

appear_29

Metal Detector

screen_30

Metal detector start-up screen presenting the button guide shown on a TFT Gizmo attached to a Circuit ‎Playground Bluefruit (CPB).

Installing Project Code

To use with CircuitPython, you need to first install a few libraries, into ‎the lib folder on your CIRCUITPY drive. Then you need to ‎update code.py with the example script.‎

Thankfully, we can do this in one go. In the example below, click ‎the Download Project Bundle button below to download the ‎necessary libraries and the code.py file in a zip file. Extract the ‎contents of the zip file, open the ‎directory CLUE_Metal_Detector/ and then click on the directory that ‎matches the version of CircuitPython you're using and copy the ‎contents of that directory to your CIRCUITPY drive.‎

Your CIRCUITPY drive should now look similar to the following ‎image:‎

drive_31

Download Project Bundle

Copy Code
# SPDX-FileCopyrightText: 2020 Kevin J Walters for Adafruit Industries
#
# SPDX-License-Identifier: MIT

# clue-metal-detector v1.6
# A simple metal detector using a minimum number of external components

# Tested with an Adafruit CLUE (Alpha) and CircuitPython 5.2.0
# Tested with an Adafruit Circuit Playground Bluefruit with TFT Gizmo
# and CircuitPython 5.2.0

# CLUE: Pad P0 is an output and pad P1 is an input
# CPB: Pad/STEMMA A1 is an output and Pad/STEMMA A2 is an input

# copy this file to CLUE/CPB board as code.py

# MIT License

# Copyright (c) 2020 Kevin J. Walters

# Permission is hereby granted, free of charge, to any person obtaining a copy
# of this software and associated documentation files (the "Software"), to deal
# in the Software without restriction, including without limitation the rights
# to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
# copies of the Software, and to permit persons to whom the Software is
# furnished to do so, subject to the following conditions:

# The above copyright notice and this permission notice shall be included in all
# copies or substantial portions of the Software.

# THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
# IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
# FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
# AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
# LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
# OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
# SOFTWARE.

# pylint: disable=global-statement

import time
import math
import array
import os
import gc

import board
import pwmio
import analogio
import ulab

from displayio import Group, CIRCUITPYTHON_TERMINAL
import terminalio

# These imports works on CLUE, CPB (and CPX on 5.x)
from audiocore import RawSample
try:
from audioio import AudioOut
except ImportError:
from audiopwmio import PWMAudioOut as AudioOut

# displayio graphical objects
from adafruit_display_text.label import Label
from adafruit_display_shapes.rect import Rect
from adafruit_display_shapes.circle import Circle


# Assuming CLUE if it's not a Circuit Playround (Bluefruit)
clue_less = "Circuit Playground" in os.uname().machine

if clue_less:
# CPB with TFT Gizmo (240x240)
from adafruit_circuitplayground import cp
from adafruit_gizmo import tft_gizmo

# Outputs
display = tft_gizmo.TFT_Gizmo()
audio_out = AudioOut(board.SPEAKER)
min_audio_frequency = 100
max_audio_frequency = 4000
pixels = cp.pixels
board_pin_output = board.A1

# Enable the onboard amplifier for speaker
cp._speaker_enable.value = True # pylint: disable=protected-access

# Inputs
board_pin_input = board.A2
magnetometer = None # This indicates device is not present
button_left = lambda: cp.button_b
button_right = lambda: cp.button_a

else:
# CLUE with builtin screen (240x240)
from adafruit_clue import clue

# Outputs
display = board.DISPLAY
audio_out = AudioOut(board.SPEAKER)
min_audio_frequency = 100
max_audio_frequency = 5000
pixels = clue.pixel
board_pin_output = board.P0

# Inputs (buttons reversed as it is used upside-down with Gizmo)
board_pin_input = board.P1
magnetometer = lambda: clue.magnetic
button_left = lambda: clue.button_a
button_right = lambda: clue.button_b


# Globals variables used r/w in functions
last_frequency = 0
last_negbar_len = None
last_posbar_len = None
last_mag_radius = None
text_overlay_gob = None
voltage_barneg_dob = None
voltage_sep_dob = None
voltage_barpos_dob = None
magnet_circ_dob = None

# Globals
debug = 1
screen_height = display.height
screen_width = display.width
samples = []

# Other globals
quantize_tones = True
audio_on = True
screen_on = True
mu_output = False
neopixel_on = True

# Used to alternate/flash the NeoPixel
neopixel_alternate = True

# Some constants used in start_beep()
BASE_NOTE = 261.6256 # C4 (middle C)
QUANTIZE = 4 # determines the "scale"
POSTLOG_FACTOR = QUANTIZE / math.log(2)

AUDIO_MIDPOINT = 32768

# There's room for 80 pixels but 60 draws a bit quicker
VOLTAGE_BAR_WIDTH = 60
VOLTAGE_BAR_HEIGHT = 118
VOLTAGE_BAR_SEP_HEIGHT = 4
MAG_MAX_RADIUS = 50

VOLTAGE_FMT = "{:6.1f}"
MAG_FMT = "{:6.1f}"

INFO_FG_COLOR = 0x000080
INFO_BG_COLOR = 0xc0c000
BLACK_TUPLE = (0, 0, 0)

RED = 0xff0000
GREEN75 = 0x00c000
BLUE = 0x0000ff
WHITE75 = 0xc0c0c0

FONT_WIDTH, FONT_HEIGHT = terminalio.FONT.get_bounding_box()

# Thresholds below which audio is silent and NeoPixels are dark
threshold_voltage = 0.002
threshold_mag = 2.5


def d_print(level, *args, **kwargs):
"""A simple conditional print for debugging based on global debug level."""
if not isinstance(level, int):
print(level, *args, **kwargs)
elif debug >= level:
print(*args, **kwargs)


# Adapted and borrowed from clue-plotter v1.14
def wait_release(text_func, button_func, menu):
"""Calls button_func repeatedly waiting for it to return a false value
and goes through menu list as time passes.

The menu is a list of menu entries where each entry is a
two element list of time passed in seconds and text to display
for that period. Text is displayed by calling text_func(text).
The entries must be in ascending time order."""

start_t_ns = time.monotonic_ns()
menu_option = None
selected = False

for menu_option, menu_entry in enumerate(menu):
menu_time_ns = start_t_ns + int(menu_entry[0] * 1e9)
menu_text = menu_entry[1]
if menu_text:
text_func(menu_text)
while time.monotonic_ns() < menu_time_ns:
if not button_func():
selected = True
break
if menu_text:
text_func("")
if selected:
break

return (menu_option, (time.monotonic_ns() - start_t_ns) * 1e-9)


def popup_text(text_func, text, duration=1.0):
"""Place some text on the screen using info property of Plotter object
for duration seconds."""
text_func(text)
time.sleep(duration)
text_func(None)


def show_text(text):
"""Place text on the screen. Empty string or None clears it."""
global screen_group, text_overlay_gob

if text:
font_scale = 3
line_spacing = 1.25

text_lines = text.split("\n")
max_word_chars = max([len(word) for word in text_lines])
# If too large reduce the scale to 2 and hope!
if (max_word_chars * font_scale * FONT_WIDTH > screen_width
or (len(text_lines) * font_scale
* FONT_HEIGHT * line_spacing) > screen_height):
font_scale -= 1

text_overlay_gob = Label(terminalio.FONT,
text=text,
scale=font_scale,
background_color=INFO_FG_COLOR,
color=INFO_BG_COLOR)
# Centre the (left justified) text
text_overlay_gob.x = (screen_width
- font_scale * FONT_WIDTH * max_word_chars) // 2
text_overlay_gob.y = screen_height // 2
screen_group.append(text_overlay_gob)
else:
if text_overlay_gob is not None:
screen_group.remove(text_overlay_gob)
text_overlay_gob = None


def voltage_bar_set(volt_diff):
"""Draw a bar based on positive or negative values.
Width of 60 is performance compromise as more pixels take longer."""
global voltage_sep_dob, voltage_barpos_dob, voltage_barneg_dob
global last_negbar_len, last_posbar_len

if voltage_sep_dob is None:
voltage_sep_dob = Rect(160, VOLTAGE_BAR_HEIGHT,
VOLTAGE_BAR_WIDTH, VOLTAGE_BAR_SEP_HEIGHT,
fill=WHITE75)
screen_group.append(voltage_sep_dob)

if volt_diff < 0:
negbar_len = max(min(-round(volt_diff * 5e3),
VOLTAGE_BAR_HEIGHT), 1)
posbar_len = 1
else:
negbar_len = 1
posbar_len = max(min(round(volt_diff * 5e3),
VOLTAGE_BAR_HEIGHT), 1)

if posbar_len == last_posbar_len and negbar_len == last_negbar_len:
return

if voltage_barpos_dob is not None:
screen_group.remove(voltage_barpos_dob)
if posbar_len > 0:
voltage_barpos_dob = Rect(160, VOLTAGE_BAR_HEIGHT - posbar_len,
VOLTAGE_BAR_WIDTH, posbar_len,
fill=GREEN75)
screen_group.append(voltage_barpos_dob)
last_posbar_len = posbar_len

if voltage_barneg_dob is not None:
screen_group.remove(voltage_barneg_dob)
if negbar_len > 0:
voltage_barneg_dob = Rect(160,
VOLTAGE_BAR_HEIGHT + VOLTAGE_BAR_SEP_HEIGHT,
VOLTAGE_BAR_WIDTH, negbar_len,
fill=RED)
screen_group.append(voltage_barneg_dob)
last_negbar_len = negbar_len


def magnet_circ_set(mag_ut):
"""Display a filled circle to represent the magnetic value mag_ut in microteslas."""
global magnet_circ_dob
global last_mag_radius

# map microteslas to a radius with minimum of 1 and
# maximum of MAG_MAX_RADIUS
radius = min(max(round(math.sqrt(mag_ut) * 4), 1), MAG_MAX_RADIUS)

if radius == last_mag_radius:
return

if magnet_circ_dob is not None:
screen_group.remove(magnet_circ_dob)
magnet_circ_dob = Circle(60, 180, radius, fill=BLUE)
screen_group.append(magnet_circ_dob)


def manual_screen_refresh(disp):
"""Refresh the screen as immediately as is currently possibly with refresh method."""
refreshed = False
while True:
try:
# 1000fps is fastest library allows - this high value
# minimises any delays this refresh() method introduces
refreshed = disp.refresh(minimum_frames_per_second=0,
target_frames_per_second=1000)
except RuntimeError:
pass
if refreshed:
break


def neopixel_set(pix, d_volt, mag_ut):
"""Set all the NeoPixels to an alternating colour
based on voltage difference and
magnitude of magnetic flux density difference."""
global neopixel_alternate

np_r, np_g, np_b = BLACK_TUPLE
if neopixel_alternate:
# RGB values are 8bit, hence the cap of 255 using min()
if abs(d_volt) > threshold_voltage:
if d_volt < 0.0:
np_r = min(round(-d_volt * 8e3), 255)
else:
np_g = min(round(d_volt * 8e3), 255)
else:
if mag_ut > threshold_mag:
np_b = min(round(mag_ut * 6), 255)

pix.fill((np_r, np_g, np_b)) # Note: double brackets to pass tuple
neopixel_alternate = not neopixel_alternate


def start_beep(freq, wave, wave_idx):
"""Start playing a continous beep based on freq and waveform specified by wave_idx.
A frequency of 0 will stop the note playing.
This quantizes the notes into a scale to make beeping sound more pleasant.
This modifies the sample_rate property of the RawSample objects.
"""
global last_frequency
if freq == 0:
if last_frequency != 0:
audio_out.stop()
last_frequency = 0
return

if quantize_tones:
note_freq = BASE_NOTE * 2**((round(math.log(freq / BASE_NOTE)
* POSTLOG_FACTOR)) / QUANTIZE)
d_print(3, "Quantize", freq, note_freq)
else:
note_freq = freq

(waveform, wave_samples_n) = wave[wave_idx]
new_freq = round(note_freq * wave_samples_n)
# Only set the new frequency if it's not the same as last one
if new_freq != last_frequency:
waveform.sample_rate = new_freq
audio_out.play(waveform, loop=True)
last_frequency = new_freq


def make_sample_list(levels=10,
volume=32767,
range_l=24,
start_l=8):
"""Make a list of tuples of (RawSample, sample_length)
with a sine wave of varying resolution from high to low.
The lower resolutions sound crunchier and louder on the CLUE."""

# Make a range of sample lengths, default is between 32 and 8
sample_lens = [int((x*(range_l + .99)/(levels - 1)) + start_l)
for x in range(0, levels)]
sample_lens.reverse()

wavefs = []
for s_len in sample_lens:
raw_samples = array.array("H",
[round(volume * math.sin(2 * math.pi
* (idx / s_len)))
+ AUDIO_MIDPOINT
for idx in range(s_len)])
sound_samples = RawSample(raw_samples)
wavefs.append((sound_samples, s_len))

return wavefs


waveforms = make_sample_list()

# For testing the waveforms
if debug >= 4:
for idx in range(len(waveforms)):
start_beep(440, waveforms, idx)
time.sleep(0.1)
start_beep(0, waveforms, 0) # This silences it

# See https://forums.adafruit.com/viewtopic.php?f=60&t=164758 for
# a comparison and performance analysis of alternate techniques for this
def sample_sum(pin, num):
"""Sample the analogue value from pin num times and return the sum
of the values."""
global samples # Not strictly needed - indicative of r/w use
samples[:] = [pin.value for _ in range(num)]
return sum(samples)


# Initialise detector display
# The units are created as separate text objects as they are static
# and this reduces the amount of redrawing for the dynamic numbers
FONT_SCALE = 3

if magnetometer is not None:
magnet_value_dob = Label(font=terminalio.FONT,
text="----.-",
scale=FONT_SCALE,
color=0xc0c000)
magnet_value_dob.y = 90

magnet_units_dob = Label(font=terminalio.FONT,
text="uT",
scale=FONT_SCALE,
color=0xc0c000)
magnet_units_dob.x = len(magnet_value_dob.text) * FONT_WIDTH * FONT_SCALE
magnet_units_dob.y = magnet_value_dob.y

voltage_value_dob = Label(font=terminalio.FONT,
text="----.-",
scale=FONT_SCALE,
color=0x00c0c0)
voltage_value_dob.y = 30

voltage_units_dob = Label(font=terminalio.FONT,
text="mV",
scale=FONT_SCALE,
color=0x00c0c0)
voltage_units_dob.y = voltage_value_dob.y
voltage_units_dob.x = len(voltage_value_dob.text) * FONT_WIDTH * FONT_SCALE

screen_group = Group()
if magnetometer is not None:
screen_group.append(magnet_value_dob)
screen_group.append(magnet_units_dob)
screen_group.append(voltage_value_dob)
screen_group.append(voltage_units_dob)

# Initialise some displayio objects and append them
# The following four variables are set by these two functions
# voltage_barneg_dob, voltage_sep_dob, voltage_barpos_dob
# magnet_circ_dob
voltage_bar_set(0)
if magnetometer is not None:
magnet_circ_set(0)

# Start-up splash screen
display.root_group = screen_group

# Start-up splash screen
popup_text(show_text,
"\n".join(["Button Guide",
"Left: audio",
" 2secs: NeoPixel",
" 4s: screen",
" 6s: Mu output",
"Right: recalibrate"]), duration=10)

# P1 or A2 for analogue input
pin_input = analogio.AnalogIn(board_pin_input)
CONV_FACTOR = pin_input.reference_voltage / 65535

# Start pwm output on P0 or A1
# 400kHz and 55000 (84%) duty_cycle were chosen empirically to maximise
# the voltage and the voltage drop detecting a small pair of metal scissors
pwm = pwmio.PWMOut(board_pin_output, frequency=400 * 1000,
duty_cycle=0, variable_frequency=True)
pwm.duty_cycle = 55000


# Get a baseline value for magnetometer
totals = [0.0] * 3
mag_samples_n = 10
if magnetometer is not None:
for _ in range(mag_samples_n):
mx, my, mz = magnetometer()
totals[0] += mx
totals[1] += my
totals[2] += mz
time.sleep(0.05)

base_mx = totals[0] / mag_samples_n
base_my = totals[1] / mag_samples_n
base_mz = totals[2] / mag_samples_n

# Wait a bit for P1/A2 input to stabilise
_ = sample_sum(pin_input, 3000) / 3000 * CONV_FACTOR
base_voltage = sample_sum(pin_input, 1000) / 1000 * CONV_FACTOR
voltage_value_dob.text = "{:6.1f}".format(base_voltage * 1000.0)

# Auto refresh off
display.auto_refresh = False

# Store two previous values of voltage to make a simple
# filtered value
voltage_zm1 = None
voltage_zm2 = None
filt_voltage = None

# Initialise the magnitude of the
# magnetic flux density difference from its baseline
mag_mag = 0.0

# Keep some historical voltage data to calculate median for re-baselining
# aiming for about 10 reads per second so this gives
# 20 seconds
voltage_hist = ulab.numpy.zeros(20 * 10 + 1, dtype=ulab.numpy.float)
voltage_hist_idx = 0
voltage_hist_complete = False
voltage_hist_median = None

# Reduce the frequency of the more heavyweight graphical changes
update_basic_graphics_period = 2
update_complex_graphics_period = 4
update_median_period = 5

counter = 0
while True:
# Garbage collect now to reduce likelihood it occurs
# during sample reading
gc.collect()
if debug >=2:
d_print(2, "mem_free=" + str(gc.mem_free()))

screen_updates = 0 # Used to determine if the screen needs a refresh

# Take arithmetic mean of 500 samples but take a few more samples
# if the loop isn't doing other work
samples_to_read = 500 # About 23ms worth on CLUE
update_basic_graphics = (screen_on
and counter % update_basic_graphics_period == 0)
if not update_basic_graphics:
samples_to_read += 150
update_complex_graphics = (screen_on
and counter % update_complex_graphics_period == 0)
if not update_complex_graphics:
samples_to_read += 400
update_median = counter % update_median_period == 0
if not update_median:
samples_to_read += 50
# Read the analogue values from P1/A2
sample_start_time_ns = time.monotonic_ns()
voltage = (sample_sum(pin_input, samples_to_read)
/ samples_to_read * CONV_FACTOR)

# Store the previous two voltage values
voltage_zm2 = voltage_zm1
voltage_zm1 = voltage

if voltage_zm1 is None:
voltage_zm1 = voltage
if voltage_zm2 is None:
voltage_zm2 = voltage

filt_voltage = (voltage * 0.4
+ voltage_zm1 * 0.3
+ voltage_zm2 * 0.3)

update_basic_graphics = counter % update_basic_graphics_period == 0
update_complex_graphics = counter % update_complex_graphics_period == 0

# Update text
if update_basic_graphics:
voltage_value_dob.text = VOLTAGE_FMT.format(filt_voltage * 1000.0)
screen_updates += 1

# Read magnetometer
if magnetometer is not None:
mx, my, mz = magnetometer()
diff_x = mx - base_mx
diff_y = my - base_my
diff_z = mz - base_mz
# Use the z value as a crude measure as this is
# constant if the device is rotated and kept level
mag_mag = math.sqrt(diff_z * diff_z)
else:
mag_mag = 0.0

# Calculate a new audio frequency based on the absolute difference
# in voltage being read - turn small voltages into 0 for silence
# between 100Hz (won't be audible)
# and 5000 (loud on CLUE's miniscule speaker)
diff_v = filt_voltage - base_voltage
abs_diff_v = abs(diff_v)
if audio_on:
if abs_diff_v > threshold_voltage or mag_mag > threshold_mag:
frequency = min(min_audio_frequency + abs_diff_v * 5e5,
max_audio_frequency)
else:
frequency = 0 # silence
start_beep(frequency, waveforms,
min(int(mag_mag / 2), len(waveforms) - 1))

# Update the NeoPixel(s) if enabled
if neopixel_on:
neopixel_set(pixels, diff_v, mag_mag)

# Update voltage bargraph
if update_complex_graphics:
voltage_bar_set(diff_v)
screen_updates += 1

# Update the magnetometer text value and the filled circle representation
if magnetometer is not None:
if update_basic_graphics:
magnet_value_dob.text = MAG_FMT.format(mag_mag)
screen_updates += 1
if update_complex_graphics:
magnet_circ_set(mag_mag)
screen_updates += 1

# Update the screen with a refresh if needed
if screen_updates:
manual_screen_refresh(display)

# Send output to Mu in tuple format
if mu_output:
print((diff_v, mag_mag))

# Check for buttons and just for this section of code turn back on
# the screen auto-refresh so the menus actually appear!
display.auto_refresh = True
if button_left():
opt, _ = wait_release(show_text,
button_left,
[(2,
"Audio "
+ ("off" if audio_on else "on")),
(4,
"NeoPixel "
+ ("off" if neopixel_on else "on")),
(6,
"Screen "
+ ("off" if screen_on else "on")),
(8,
"Mu output "
+ ("off" if mu_output else "on"))
])
if not screen_on or opt == 2: # Screen toggle
screen_on = not screen_on
if screen_on:
display.root_group = screen_group
display.brightness = 1.0
else:
display.root_group = CIRCUITPYTHON_TERMINAL
display.brightness = 0.0
elif opt == 0: # Audio toggle
audio_on = not audio_on
if not audio_on:
start_beep(0, waveforms, 0) # Silence
elif opt == 1: # NeoPixel toggle
neopixel_on = not neopixel_on
if not neopixel_on:
neopixel_set(pixels, 0.0, 0.0)
else: # Mu toggle
mu_output = not mu_output

# Set new baseline voltage and magnetometer on right button press
if button_right():
wait_release(show_text,
button_right,
[(2, "Recalibrate")])
d_print(1, "Recalibrate")
base_voltage = voltage
voltage_hist_idx = 0
voltage_hist_complete = False
voltage_hist_median = None
if magnetometer is not None:
base_mx, base_my, base_mz = mx, my, mz

display.auto_refresh = False

# Add the current voltage to the historical list
voltage_hist[voltage_hist_idx] = voltage
if voltage_hist_idx >= len(voltage_hist) - 1:
voltage_hist_idx = 0
voltage_hist_complete = True
else:
voltage_hist_idx += 1

# Adjust the reference base_voltage to the median of historical values
if voltage_hist_complete and update_median:
voltage_hist_median = ulab.numpy.sort(voltage_hist)[len(voltage_hist) // 2]
base_voltage = voltage_hist_median

d_print(2, counter, sample_start_time_ns / 1e9,
voltage * 1000.0,
mag_mag,
filt_voltage * 1000.0, base_voltage, voltage_hist_median)

counter += 1

View on GitHub

Example Video



The video shows the CLUE version powered by a lithium polymer ‎battery similar to the Adafruit 1200mAh Lithium Ion Polymer battery. ‎Note: the CLUE and the CPB do not have an integrated charger.‎

In the video, when no object is being sensed, the voltage shown on ‎the screen is around 1474mV and magnitude of the magnetic flux ‎density difference is 0uT. The five hidden objects, in order, show the ‎following voltages:‎

  • Through a large hardback book
    • a large metallic sticker, 1467mV
  • Through a magazine
    • another Adafruit CLUE board, 1463mV
    • a ferrite core from an inductor, 1477mV (note the value ‎has increased);‎
    • a neodymium magnet, 1474mV and 28uT
    • a large silver coin 1469mV.‎

The voltage will vary based on the inductance of the coil created for ‎the metal detector. It will be about 300mV less if a rectifier diode like ‎a 1N1004 is used. The voltage is about 200mV less on the Circuit ‎Playground Bluefruit with TFT Gizmo for the same coil.‎

Troubleshooting

If the metal detector is not working, here's some tips based on ‎observing the voltage.‎

  • Around 2950mV: the coil is not connected, or the connection is ‎hampered by insulation left on the enamelled wire.‎
  • Around 0mV: diode may be the wrong way around or ‎something is not connected properly.‎
  • A few tens of mV: the yellow connection is probably from a high ‎‎(3.3V) pin.‎
  • Voltage jumps around: probably a loose connection and/or ‎ground is not attached. Wiggle and re-insert connections to ‎find problematic one. Using alternate holes/rows on the ‎breadboard can help sometimes.‎

Operation

The mV value across the capacitor is shown on screen. This value ‎represents the inductance value. The detection of metal is based on ‎a positive or negative change from the baseline value when no ‎object is being sensed. A difference is indicated by a beeping sound, ‎a bar graph with green for positive and red for negative and flashing ‎of the NeoPixel(s) with a matching colour. The baseline value is ‎assigned when the code first starts. It will also follow any changes ‎after about ten seconds.‎

The uT reading (CLUE board only) is the magnitude of the difference ‎between the magnetometer's z component only and the first value ‎measured at start-up. This value is also shown as a filled blue circle, a ‎slightly different beeping sound and flashing of the NeoPixel(s) in ‎blue alternating with any mV related colour.‎

The use of the z component only is a crude approach to make the ‎detector ignore the Earth's magnetic field. This allows the detector to ‎be rotated as this changes the x and y values but not the z value. ‎Tilting the device, as seen in the video when the metal detector is at ‎the top of the screen, will unfortunately increase the value slightly.‎

The right button can be used to immediately reset the baseline for ‎the voltage and the magnetic flux density. The left button toggles ‎the audio, NeoPixel(s), screen and Mu output on and off depending ‎on the duration of the button press.‎

Magnets at close proximity can permanently magnetise ‎components on the CLUE board affecting the magnetometer! Keep ‎them at least 10cm (4in) away from the CLUE.‎

Code

A code discussion follows the code.‎

Download Project Bundle‎

Copy Code
# SPDX-FileCopyrightText: 2020 Kevin J Walters for Adafruit Industries
#
# SPDX-License-Identifier: MIT

# clue-metal-detector v1.6
# A simple metal detector using a minimum number of external components

# Tested with an Adafruit CLUE (Alpha) and CircuitPython 5.2.0
# Tested with an Adafruit Circuit Playground Bluefruit with TFT Gizmo
# and CircuitPython 5.2.0

# CLUE: Pad P0 is an output and pad P1 is an input
# CPB: Pad/STEMMA A1 is an output and Pad/STEMMA A2 is an input

# copy this file to CLUE/CPB board as code.py

# MIT License

# Copyright (c) 2020 Kevin J. Walters

# Permission is hereby granted, free of charge, to any person obtaining a copy
# of this software and associated documentation files (the "Software"), to deal
# in the Software without restriction, including without limitation the rights
# to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
# copies of the Software, and to permit persons to whom the Software is
# furnished to do so, subject to the following conditions:

# The above copyright notice and this permission notice shall be included in all
# copies or substantial portions of the Software.

# THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
# IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
# FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
# AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
# LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
# OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
# SOFTWARE.

# pylint: disable=global-statement

import time
import math
import array
import os
import gc

import board
import pwmio
import analogio
import ulab

from displayio import Group, CIRCUITPYTHON_TERMINAL
import terminalio

# These imports works on CLUE, CPB (and CPX on 5.x)
from audiocore import RawSample
try:
from audioio import AudioOut
except ImportError:
from audiopwmio import PWMAudioOut as AudioOut

# displayio graphical objects
from adafruit_display_text.label import Label
from adafruit_display_shapes.rect import Rect
from adafruit_display_shapes.circle import Circle


# Assuming CLUE if it's not a Circuit Playround (Bluefruit)
clue_less = "Circuit Playground" in os.uname().machine

if clue_less:
# CPB with TFT Gizmo (240x240)
from adafruit_circuitplayground import cp
from adafruit_gizmo import tft_gizmo

# Outputs
display = tft_gizmo.TFT_Gizmo()
audio_out = AudioOut(board.SPEAKER)
min_audio_frequency = 100
max_audio_frequency = 4000
pixels = cp.pixels
board_pin_output = board.A1

# Enable the onboard amplifier for speaker
cp._speaker_enable.value = True # pylint: disable=protected-access

# Inputs
board_pin_input = board.A2
magnetometer = None # This indicates device is not present
button_left = lambda: cp.button_b
button_right = lambda: cp.button_a

else:
# CLUE with builtin screen (240x240)
from adafruit_clue import clue

# Outputs
display = board.DISPLAY
audio_out = AudioOut(board.SPEAKER)
min_audio_frequency = 100
max_audio_frequency = 5000
pixels = clue.pixel
board_pin_output = board.P0

# Inputs (buttons reversed as it is used upside-down with Gizmo)
board_pin_input = board.P1
magnetometer = lambda: clue.magnetic
button_left = lambda: clue.button_a
button_right = lambda: clue.button_b


# Globals variables used r/w in functions
last_frequency = 0
last_negbar_len = None
last_posbar_len = None
last_mag_radius = None
text_overlay_gob = None
voltage_barneg_dob = None
voltage_sep_dob = None
voltage_barpos_dob = None
magnet_circ_dob = None

# Globals
debug = 1
screen_height = display.height
screen_width = display.width
samples = []

# Other globals
quantize_tones = True
audio_on = True
screen_on = True
mu_output = False
neopixel_on = True

# Used to alternate/flash the NeoPixel
neopixel_alternate = True

# Some constants used in start_beep()
BASE_NOTE = 261.6256 # C4 (middle C)
QUANTIZE = 4 # determines the "scale"
POSTLOG_FACTOR = QUANTIZE / math.log(2)

AUDIO_MIDPOINT = 32768

# There's room for 80 pixels but 60 draws a bit quicker
VOLTAGE_BAR_WIDTH = 60
VOLTAGE_BAR_HEIGHT = 118
VOLTAGE_BAR_SEP_HEIGHT = 4
MAG_MAX_RADIUS = 50

VOLTAGE_FMT = "{:6.1f}"
MAG_FMT = "{:6.1f}"

INFO_FG_COLOR = 0x000080
INFO_BG_COLOR = 0xc0c000
BLACK_TUPLE = (0, 0, 0)

RED = 0xff0000
GREEN75 = 0x00c000
BLUE = 0x0000ff
WHITE75 = 0xc0c0c0

FONT_WIDTH, FONT_HEIGHT = terminalio.FONT.get_bounding_box()

# Thresholds below which audio is silent and NeoPixels are dark
threshold_voltage = 0.002
threshold_mag = 2.5


def d_print(level, *args, **kwargs):
"""A simple conditional print for debugging based on global debug level."""
if not isinstance(level, int):
print(level, *args, **kwargs)
elif debug >= level:
print(*args, **kwargs)


# Adapted and borrowed from clue-plotter v1.14
def wait_release(text_func, button_func, menu):
"""Calls button_func repeatedly waiting for it to return a false value
and goes through menu list as time passes.

The menu is a list of menu entries where each entry is a
two element list of time passed in seconds and text to display
for that period. Text is displayed by calling text_func(text).
The entries must be in ascending time order."""

start_t_ns = time.monotonic_ns()
menu_option = None
selected = False

for menu_option, menu_entry in enumerate(menu):
menu_time_ns = start_t_ns + int(menu_entry[0] * 1e9)
menu_text = menu_entry[1]
if menu_text:
text_func(menu_text)
while time.monotonic_ns() < menu_time_ns:
if not button_func():
selected = True
break
if menu_text:
text_func("")
if selected:
break

return (menu_option, (time.monotonic_ns() - start_t_ns) * 1e-9)


def popup_text(text_func, text, duration=1.0):
"""Place some text on the screen using info property of Plotter object
for duration seconds."""
text_func(text)
time.sleep(duration)
text_func(None)


def show_text(text):
"""Place text on the screen. Empty string or None clears it."""
global screen_group, text_overlay_gob

if text:
font_scale = 3
line_spacing = 1.25

text_lines = text.split("\n")
max_word_chars = max([len(word) for word in text_lines])
# If too large reduce the scale to 2 and hope!
if (max_word_chars * font_scale * FONT_WIDTH > screen_width
or (len(text_lines) * font_scale
* FONT_HEIGHT * line_spacing) > screen_height):
font_scale -= 1

text_overlay_gob = Label(terminalio.FONT,
text=text,
scale=font_scale,
background_color=INFO_FG_COLOR,
color=INFO_BG_COLOR)
# Centre the (left justified) text
text_overlay_gob.x = (screen_width
- font_scale * FONT_WIDTH * max_word_chars) // 2
text_overlay_gob.y = screen_height // 2
screen_group.append(text_overlay_gob)
else:
if text_overlay_gob is not None:
screen_group.remove(text_overlay_gob)
text_overlay_gob = None


def voltage_bar_set(volt_diff):
"""Draw a bar based on positive or negative values.
Width of 60 is performance compromise as more pixels take longer."""
global voltage_sep_dob, voltage_barpos_dob, voltage_barneg_dob
global last_negbar_len, last_posbar_len

if voltage_sep_dob is None:
voltage_sep_dob = Rect(160, VOLTAGE_BAR_HEIGHT,
VOLTAGE_BAR_WIDTH, VOLTAGE_BAR_SEP_HEIGHT,
fill=WHITE75)
screen_group.append(voltage_sep_dob)

if volt_diff < 0:
negbar_len = max(min(-round(volt_diff * 5e3),
VOLTAGE_BAR_HEIGHT), 1)
posbar_len = 1
else:
negbar_len = 1
posbar_len = max(min(round(volt_diff * 5e3),
VOLTAGE_BAR_HEIGHT), 1)

if posbar_len == last_posbar_len and negbar_len == last_negbar_len:
return

if voltage_barpos_dob is not None:
screen_group.remove(voltage_barpos_dob)
if posbar_len > 0:
voltage_barpos_dob = Rect(160, VOLTAGE_BAR_HEIGHT - posbar_len,
VOLTAGE_BAR_WIDTH, posbar_len,
fill=GREEN75)
screen_group.append(voltage_barpos_dob)
last_posbar_len = posbar_len

if voltage_barneg_dob is not None:
screen_group.remove(voltage_barneg_dob)
if negbar_len > 0:
voltage_barneg_dob = Rect(160,
VOLTAGE_BAR_HEIGHT + VOLTAGE_BAR_SEP_HEIGHT,
VOLTAGE_BAR_WIDTH, negbar_len,
fill=RED)
screen_group.append(voltage_barneg_dob)
last_negbar_len = negbar_len


def magnet_circ_set(mag_ut):
"""Display a filled circle to represent the magnetic value mag_ut in microteslas."""
global magnet_circ_dob
global last_mag_radius

# map microteslas to a radius with minimum of 1 and
# maximum of MAG_MAX_RADIUS
radius = min(max(round(math.sqrt(mag_ut) * 4), 1), MAG_MAX_RADIUS)

if radius == last_mag_radius:
return

if magnet_circ_dob is not None:
screen_group.remove(magnet_circ_dob)
magnet_circ_dob = Circle(60, 180, radius, fill=BLUE)
screen_group.append(magnet_circ_dob)


def manual_screen_refresh(disp):
"""Refresh the screen as immediately as is currently possibly with refresh method."""
refreshed = False
while True:
try:
# 1000fps is fastest library allows - this high value
# minimises any delays this refresh() method introduces
refreshed = disp.refresh(minimum_frames_per_second=0,
target_frames_per_second=1000)
except RuntimeError:
pass
if refreshed:
break


def neopixel_set(pix, d_volt, mag_ut):
"""Set all the NeoPixels to an alternating colour
based on voltage difference and
magnitude of magnetic flux density difference."""
global neopixel_alternate

np_r, np_g, np_b = BLACK_TUPLE
if neopixel_alternate:
# RGB values are 8bit, hence the cap of 255 using min()
if abs(d_volt) > threshold_voltage:
if d_volt < 0.0:
np_r = min(round(-d_volt * 8e3), 255)
else:
np_g = min(round(d_volt * 8e3), 255)
else:
if mag_ut > threshold_mag:
np_b = min(round(mag_ut * 6), 255)

pix.fill((np_r, np_g, np_b)) # Note: double brackets to pass tuple
neopixel_alternate = not neopixel_alternate


def start_beep(freq, wave, wave_idx):
"""Start playing a continous beep based on freq and waveform specified by wave_idx.
A frequency of 0 will stop the note playing.
This quantizes the notes into a scale to make beeping sound more pleasant.
This modifies the sample_rate property of the RawSample objects.
"""
global last_frequency
if freq == 0:
if last_frequency != 0:
audio_out.stop()
last_frequency = 0
return

if quantize_tones:
note_freq = BASE_NOTE * 2**((round(math.log(freq / BASE_NOTE)
* POSTLOG_FACTOR)) / QUANTIZE)
d_print(3, "Quantize", freq, note_freq)
else:
note_freq = freq

(waveform, wave_samples_n) = wave[wave_idx]
new_freq = round(note_freq * wave_samples_n)
# Only set the new frequency if it's not the same as last one
if new_freq != last_frequency:
waveform.sample_rate = new_freq
audio_out.play(waveform, loop=True)
last_frequency = new_freq


def make_sample_list(levels=10,
volume=32767,
range_l=24,
start_l=8):
"""Make a list of tuples of (RawSample, sample_length)
with a sine wave of varying resolution from high to low.
The lower resolutions sound crunchier and louder on the CLUE."""

# Make a range of sample lengths, default is between 32 and 8
sample_lens = [int((x*(range_l + .99)/(levels - 1)) + start_l)
for x in range(0, levels)]
sample_lens.reverse()

wavefs = []
for s_len in sample_lens:
raw_samples = array.array("H",
[round(volume * math.sin(2 * math.pi
* (idx / s_len)))
+ AUDIO_MIDPOINT
for idx in range(s_len)])
sound_samples = RawSample(raw_samples)
wavefs.append((sound_samples, s_len))

return wavefs


waveforms = make_sample_list()

# For testing the waveforms
if debug >= 4:
for idx in range(len(waveforms)):
start_beep(440, waveforms, idx)
time.sleep(0.1)
start_beep(0, waveforms, 0) # This silences it

# See https://forums.adafruit.com/viewtopic.php?f=60&t=164758 for
# a comparison and performance analysis of alternate techniques for this
def sample_sum(pin, num):
"""Sample the analogue value from pin num times and return the sum
of the values."""
global samples # Not strictly needed - indicative of r/w use
samples[:] = [pin.value for _ in range(num)]
return sum(samples)


# Initialise detector display
# The units are created as separate text objects as they are static
# and this reduces the amount of redrawing for the dynamic numbers
FONT_SCALE = 3

if magnetometer is not None:
magnet_value_dob = Label(font=terminalio.FONT,
text="----.-",
scale=FONT_SCALE,
color=0xc0c000)
magnet_value_dob.y = 90

magnet_units_dob = Label(font=terminalio.FONT,
text="uT",
scale=FONT_SCALE,
color=0xc0c000)
magnet_units_dob.x = len(magnet_value_dob.text) * FONT_WIDTH * FONT_SCALE
magnet_units_dob.y = magnet_value_dob.y

voltage_value_dob = Label(font=terminalio.FONT,
text="----.-",
scale=FONT_SCALE,
color=0x00c0c0)
voltage_value_dob.y = 30

voltage_units_dob = Label(font=terminalio.FONT,
text="mV",
scale=FONT_SCALE,
color=0x00c0c0)
voltage_units_dob.y = voltage_value_dob.y
voltage_units_dob.x = len(voltage_value_dob.text) * FONT_WIDTH * FONT_SCALE

screen_group = Group()
if magnetometer is not None:
screen_group.append(magnet_value_dob)
screen_group.append(magnet_units_dob)
screen_group.append(voltage_value_dob)
screen_group.append(voltage_units_dob)

# Initialise some displayio objects and append them
# The following four variables are set by these two functions
# voltage_barneg_dob, voltage_sep_dob, voltage_barpos_dob
# magnet_circ_dob
voltage_bar_set(0)
if magnetometer is not None:
magnet_circ_set(0)

# Start-up splash screen
display.root_group = screen_group

# Start-up splash screen
popup_text(show_text,
"\n".join(["Button Guide",
"Left: audio",
" 2secs: NeoPixel",
" 4s: screen",
" 6s: Mu output",
"Right: recalibrate"]), duration=10)

# P1 or A2 for analogue input
pin_input = analogio.AnalogIn(board_pin_input)
CONV_FACTOR = pin_input.reference_voltage / 65535

# Start pwm output on P0 or A1
# 400kHz and 55000 (84%) duty_cycle were chosen empirically to maximise
# the voltage and the voltage drop detecting a small pair of metal scissors
pwm = pwmio.PWMOut(board_pin_output, frequency=400 * 1000,
duty_cycle=0, variable_frequency=True)
pwm.duty_cycle = 55000


# Get a baseline value for magnetometer
totals = [0.0] * 3
mag_samples_n = 10
if magnetometer is not None:
for _ in range(mag_samples_n):
mx, my, mz = magnetometer()
totals[0] += mx
totals[1] += my
totals[2] += mz
time.sleep(0.05)

base_mx = totals[0] / mag_samples_n
base_my = totals[1] / mag_samples_n
base_mz = totals[2] / mag_samples_n

# Wait a bit for P1/A2 input to stabilise
_ = sample_sum(pin_input, 3000) / 3000 * CONV_FACTOR
base_voltage = sample_sum(pin_input, 1000) / 1000 * CONV_FACTOR
voltage_value_dob.text = "{:6.1f}".format(base_voltage * 1000.0)

# Auto refresh off
display.auto_refresh = False

# Store two previous values of voltage to make a simple
# filtered value
voltage_zm1 = None
voltage_zm2 = None
filt_voltage = None

# Initialise the magnitude of the
# magnetic flux density difference from its baseline
mag_mag = 0.0

# Keep some historical voltage data to calculate median for re-baselining
# aiming for about 10 reads per second so this gives
# 20 seconds
voltage_hist = ulab.numpy.zeros(20 * 10 + 1, dtype=ulab.numpy.float)
voltage_hist_idx = 0
voltage_hist_complete = False
voltage_hist_median = None

# Reduce the frequency of the more heavyweight graphical changes
update_basic_graphics_period = 2
update_complex_graphics_period = 4
update_median_period = 5

counter = 0
while True:
# Garbage collect now to reduce likelihood it occurs
# during sample reading
gc.collect()
if debug >=2:
d_print(2, "mem_free=" + str(gc.mem_free()))

screen_updates = 0 # Used to determine if the screen needs a refresh

# Take arithmetic mean of 500 samples but take a few more samples
# if the loop isn't doing other work
samples_to_read = 500 # About 23ms worth on CLUE
update_basic_graphics = (screen_on
and counter % update_basic_graphics_period == 0)
if not update_basic_graphics:
samples_to_read += 150
update_complex_graphics = (screen_on
and counter % update_complex_graphics_period == 0)
if not update_complex_graphics:
samples_to_read += 400
update_median = counter % update_median_period == 0
if not update_median:
samples_to_read += 50
# Read the analogue values from P1/A2
sample_start_time_ns = time.monotonic_ns()
voltage = (sample_sum(pin_input, samples_to_read)
/ samples_to_read * CONV_FACTOR)

# Store the previous two voltage values
voltage_zm2 = voltage_zm1
voltage_zm1 = voltage

if voltage_zm1 is None:
voltage_zm1 = voltage
if voltage_zm2 is None:
voltage_zm2 = voltage

filt_voltage = (voltage * 0.4
+ voltage_zm1 * 0.3
+ voltage_zm2 * 0.3)

update_basic_graphics = counter % update_basic_graphics_period == 0
update_complex_graphics = counter % update_complex_graphics_period == 0

# Update text
if update_basic_graphics:
voltage_value_dob.text = VOLTAGE_FMT.format(filt_voltage * 1000.0)
screen_updates += 1

# Read magnetometer
if magnetometer is not None:
mx, my, mz = magnetometer()
diff_x = mx - base_mx
diff_y = my - base_my
diff_z = mz - base_mz
# Use the z value as a crude measure as this is
# constant if the device is rotated and kept level
mag_mag = math.sqrt(diff_z * diff_z)
else:
mag_mag = 0.0

# Calculate a new audio frequency based on the absolute difference
# in voltage being read - turn small voltages into 0 for silence
# between 100Hz (won't be audible)
# and 5000 (loud on CLUE's miniscule speaker)
diff_v = filt_voltage - base_voltage
abs_diff_v = abs(diff_v)
if audio_on:
if abs_diff_v > threshold_voltage or mag_mag > threshold_mag:
frequency = min(min_audio_frequency + abs_diff_v * 5e5,
max_audio_frequency)
else:
frequency = 0 # silence
start_beep(frequency, waveforms,
min(int(mag_mag / 2), len(waveforms) - 1))

# Update the NeoPixel(s) if enabled
if neopixel_on:
neopixel_set(pixels, diff_v, mag_mag)

# Update voltage bargraph
if update_complex_graphics:
voltage_bar_set(diff_v)
screen_updates += 1

# Update the magnetometer text value and the filled circle representation
if magnetometer is not None:
if update_basic_graphics:
magnet_value_dob.text = MAG_FMT.format(mag_mag)
screen_updates += 1
if update_complex_graphics:
magnet_circ_set(mag_mag)
screen_updates += 1

# Update the screen with a refresh if needed
if screen_updates:
manual_screen_refresh(display)

# Send output to Mu in tuple format
if mu_output:
print((diff_v, mag_mag))

# Check for buttons and just for this section of code turn back on
# the screen auto-refresh so the menus actually appear!
display.auto_refresh = True
if button_left():
opt, _ = wait_release(show_text,
button_left,
[(2,
"Audio "
+ ("off" if audio_on else "on")),
(4,
"NeoPixel "
+ ("off" if neopixel_on else "on")),
(6,
"Screen "
+ ("off" if screen_on else "on")),
(8,
"Mu output "
+ ("off" if mu_output else "on"))
])
if not screen_on or opt == 2: # Screen toggle
screen_on = not screen_on
if screen_on:
display.root_group = screen_group
display.brightness = 1.0
else:
display.root_group = CIRCUITPYTHON_TERMINAL
display.brightness = 0.0
elif opt == 0: # Audio toggle
audio_on = not audio_on
if not audio_on:
start_beep(0, waveforms, 0) # Silence
elif opt == 1: # NeoPixel toggle
neopixel_on = not neopixel_on
if not neopixel_on:
neopixel_set(pixels, 0.0, 0.0)
else: # Mu toggle
mu_output = not mu_output

# Set new baseline voltage and magnetometer on right button press
if button_right():
wait_release(show_text,
button_right,
[(2, "Recalibrate")])
d_print(1, "Recalibrate")
base_voltage = voltage
voltage_hist_idx = 0
voltage_hist_complete = False
voltage_hist_median = None
if magnetometer is not None:
base_mx, base_my, base_mz = mx, my, mz

display.auto_refresh = False

# Add the current voltage to the historical list
voltage_hist[voltage_hist_idx] = voltage
if voltage_hist_idx >= len(voltage_hist) - 1:
voltage_hist_idx = 0
voltage_hist_complete = True
else:
voltage_hist_idx += 1

# Adjust the reference base_voltage to the median of historical values
if voltage_hist_complete and update_median:
voltage_hist_median = ulab.numpy.sort(voltage_hist)[len(voltage_hist) // 2]
base_voltage = voltage_hist_median

d_print(2, counter, sample_start_time_ns / 1e9,
voltage * 1000.0,
mag_mag,
filt_voltage * 1000.0, base_voltage, voltage_hist_median)

counter += 1

‎View on GitHub

Code Discussion

The high-level design is straightforward.‎

  1. Output a square wave on a pin.‎‎
  2. Store a baseline value from the other pin configured as an ‎analogue input which is measuring the voltage across the ‎capacitor.‎‎
  3. Store a baseline value for the z component of the ‎magnetometer (if present).
  4. Take the difference from the current analogue input and the ‎baseline and present this value to the user.‎‎
  5. Take the magnitude of the difference from the ‎current z component of the magnetometer and the baseline ‎and present this value to the user.‎‎
  6. Check the two buttons for user inputs.
  7. Go to step 4.‎

Only the buttons are used for the user interface on the CLUE. There ‎is one spare touch capable pad, but this isn't really accessible if an ‎edge connector is used.‎

Voltage from ADC Values

The ADC values are easily read in CircuitPython using ‎an AnalogIn object's value property. This value ranges from 0 to 65535 ‎‎(a 16bit value) regardless of the number of bits returned by the ADC. ‎The nRF52840 is configured in 12bit ADC mode by the CircuitPython ‎interpreter. This means values will always be multiples of 16.‎

One surprise is these values can vary even with a stable voltage ‎source like a battery. An extreme example from some real data for ‎consecutive values is:‎

  1. ‎25152 = 1266.5mV‎
  2. ‎28848 = 1452.6mV
  3. ‎28608 = 1440.5mV‎

In the case of this metal detector, a 3mV difference represents a ‎small metallic object, but the ADC is infrequently producing output ‎which hugely deviates from the actual value. Even the second and ‎third values have a 12.1mV difference.‎

A common approach is to take multiple samples and then take the ‎average (arithmetic mean) of those values with the aim of reducing ‎the effect of this variance. The sample_sum() function below does most of ‎this job, it leaves the division by num to the caller.‎

Download File

Copy Code
def sample_sum(pin, num):
"""Sample the analogue value from pin num times and return the sum
of the values."""
global samples
samples[:] = [pin.value for _ in range(num)]
return sum(samples)

This is one of the most efficient ways to read multiple samples with a ‎rate of around 21-22 thousand samples per second (ksps) on an ‎nRF52840. It also stores them in case further data analysis is ‎required. The use of global here isn't strictly required but arguably it's ‎useful to indicate the function changes the global list samples. The ‎values are intentionally processed here as int and not float to improve ‎the performance. The use of slice assignment is an attempt. ‎probably unsuccessful, to stop the interpreter generating a ‎temporary list to store all the sample values.‎

The performance of different approaches to reading many samples ‎is shown in Adafruit Forums: Analogue Sampling at high rates plus ‎ulab.‎

The validity of using the average of a number of consecutive ‎samples to accurately represent the real voltage is examined on the ‎next page.‎

Using Global Variables in Python

In Python, global must be used inside a function (or method) to ‎declare usage of a variable if assignment occurs. This prevents ‎Python from creating a new local variable. An example from the ‎program is shown below.‎

Download File

Copy Code
def magnet_circ_set(mag_ut):
"""Display a filled circle to represent the magnetic value mag_ut in microteslas."""
global magnet_circ_dob
global last_mag_radius

radius = min(max(round(math.sqrt(mag_ut) * 4),
1),
MAG_MAX_RADIUS)

if radius == last_mag_radius:
return

if magnet_circ_dob is not None:
screen_group.remove(magnet_circ_dob)
magnet_circ_dob = Circle(60, 180, radius, fill=BLUE)
screen_group.append(magnet_circ_dob)

Pylint picks up on use of global and issues a W0603: Using the global statement ‎‎(global-statement) warning. Variables with a large scope which are not ‎truly constant can make a program difficult to understand and lead ‎to bugs - global variables are the most extreme version of this. In a ‎small program they tend not to be problematic but small programs ‎can gradually become much larger ones. In the above case the ‎variables have:‎

  • a clear, specific, semi-documented purpose
  • and a very low probability of being used elsewhere in the code ‎in the future.‎

The current code does limit the display to a single circle/value. If the ‎program was likely to grow over time or there was a potential need ‎to display multiple circles/values then creating a new class would be ‎an attractive option to encapsulate this data replacing the use of ‎global variables.‎

In other languages, global variables can cause limitations or bugs ‎from ill-considered use due to multi-threading or re-entrancy issues. ‎The evolution of errno is one important example of a global variable ‎used by UNIX libraries which had to be enhanced to support true ‎multi-threading by conversion into a function.‎

Positional Arguments

The majority of programming languages use positional arguments ‎‎(parameters) to functions. An example from the code is show below ‎with the body of the procedure not shown for brevity.‎

Download File

Copy Code
def neopixel_set(pix, d_volt, mag_ut):
"""Set all the NeoPixels to an alternating colour
based on voltage difference and
magnitude of magnetic flux density difference."""

The three values are clearly very different:‎

  1. pix - an object for the NeoPixels, the fill() method is used on ‎it.‎‎
  2. d_volt - a difference value which may be positive or negative ‎in volts.‎‎
  3. mag_ut - a magnetic value in microteslas which happens to be a ‎magnitude of a difference value so is always non-negative.‎

A scientist would clearly see there are two quantities with very ‎different units. Python traditionally didn't have any typing that would ‎indicate if the procedure was used with the arguments in the wrong ‎order and during development the numerical arguments were ‎briefly reversed by accident. The use of keyword (named) arguments ‎can make this less likely to occur, particularly with functions which ‎take a huge number of arguments. Keyword arguments are only ‎mandatory in Python after * in the argument list.‎

CircuitPython supports type hints (PEP-484) which improves the ‎results from static analysis tools like pylint. This can reduce bugs in ‎this area but will not eliminate them.‎

Practical Issues with displayio Graphics

Drawing items on the TFT LCD screen on these boards is a slow ‎process compared to a modern desktop computer. This is ‎particularly noticeable when drawing large objects using ‎the adafruit_display_shapes library.‎

The program uses a variety of techniques to try and keep the main ‎loop executing at a reasonable and approximately constant rate ‎both especially when a significant object is detected.‎

  1. The default automatic screen refresh is replaced by a manual ‎refresh once per loop to CPU cycles are not spent on interim, ‎fruitless, partial screen updates.‎‎
  2. The MAG_MAX_RADIUS seen in the magnet_circ_set() procedure above ‎serves to ensure the filled circle fits on screen. It's set slightly ‎smaller than the screen area it occupies to reduce the ‎performance impact of drawing very large circles.
  3. Screen objects which are slow to update are reduced in ‎frequency with an "only every N time" approach in the main ‎loop.
  4. The number of samples read adapts to other balance other ‎activity in the loop to keep the execution rate more constant.
  5. Graphical objects are not updated if the screen has been ‎turned off in the program by the user.‎‎
  6. The numerical values on screen are split into two Label objects ‎to separate the dynamic value and the static units ‎‎("uT" and "mV").‎

The third, fourth and fifth optimisations are shown in an excerpt ‎below from the main loop.‎

Download File

Copy Code
# An excerpt from main loop
samples_to_read = 500 # About 23ms worth on CLUE
update_basic_graphics = (screen_on
and counter % update_basic_graphics_period == 0)
if not update_basic_graphics:
samples_to_read += 150
update_complex_graphics = (screen_on
and counter % update_complex_graphics_period == 0)
if not update_complex_graphics:
samples_to_read += 400
update_median = counter % update_median_period == 0
if not update_median:
samples_to_read += 50

This is setting ‎three boolean variables, update_basic_graphics, update_complex_graphics and update_median, which are used to selectively execute certain computationally ‎expensive parts of the loop and to increase the amount of sample ‎reading if those operations are not taking place to balance the loop ‎time and make practical use of this time. The first two values are ‎calculated using screen_on to ensure they are False if the screen is not ‎being used.‎

The displayio library has a builtin optimisation. Only areas of the ‎screen which have been changed are sent to the TFT LCD screen. ‎Internally these are processed as rectangular areas and marked as ‎‎"dirty" when they've been changed to indicate the need to send ‎them to the screen on the next refresh.‎

Filters with and without ulab Library

The main loop also has an extra level of filtering to try to further ‎reduce any brief, transient variations of voltage - these could give a ‎distracting, false indication. The simple code below shows how two ‎previous voltage values can be stored in simple variables. The _zm1 suffix ‎refers to z-1 which represents the unit delay in digital filter ‎implementations.‎‎ ‎

Download File

Copy Code
# Store the previous two voltage values
voltage_zm2 = voltage_zm1
voltage_zm1 = voltage

These are then used to make a "filtered" version of the voltage by a ‎multiplication by weights (coefficients) and summation.‎

Download File

Copy Code
# Make a filtered voltage from three values
filt_voltage = (voltage * 0.4
+ voltage_zm1 * 0.3
+ voltage_zm2 * 0.3)

This tiny low-pass, causal filter was improvised rather than designed ‎but appears to work reasonably well to reduce the effect of transient ‎spikes without introducing obvious delay.‎

CircuitPython 5.1.0 introduced the ulab library for boards with larger ‎CPUs like the nRF52840 on the CLUE/CPB. This library is a cut-down ‎version of numpy, providing very fast vector operations and efficient, ‎flexible storage for arrays. The ulab approach for this can be seen ‎on Low pass filtering: Measuring barometric Pressure. This type of ‎filter is know as a Finite Impulse Response (FIR) filter. There is also ‎a convolve function in ulab which can be used to perform this type of ‎filtering across arrays.‎

The program does make some use of ulab. The unfiltered voltage values ‎are continually stored in a fixed size 201 element float-‎based ulab ndarray. This is used in the style of a circular buffer storing ‎the most recent 201 values. These values are then used to calculate ‎the median voltage with the code shown below.‎

Download File

Copy Code
# Adjust the reference base_voltage to the median of historical values
if voltage_hist_complete and update_median:
voltage_hist_median = ulab.numpy.sort(voltage_hist)[len(voltage_hist) // 2]
base_voltage = voltage_hist_median

The code is updating the baseline voltage used as the datum for ‎calculating the voltage difference used to indicate metal. This allows ‎the code to deal with gradual shifts in the voltage level. An inevitable ‎side-effect of this approach is the detector will incorrectly adjust the ‎baseline if held over a metal object constantly for about ten seconds.‎

Magnetometer Baseline and Code Reviews

An informal code review by Jeff Epler highlighted an inconsistency in ‎the program for setting the baseline value for the magnetometer. ‎The code which initialises the values is shown below.‎

Download File

Copy Code
# Get a baseline value for magnetometer
totals = [0.0] * 3
mag_samples_n = 10
if magnetometer is not None:
for _ in range(mag_samples_n):
mx, my, mz = magnetometer()
totals[0] += mx
totals[1] += my
totals[2] += mz
time.sleep(0.05)

base_mx = totals[0] / mag_samples_n
base_my = totals[1] / mag_samples_n
base_mz = totals[2] / mag_samples_n

The code used within the loop if the user pressed the right button to ‎‎"Recalibrate" is a much simpler affair, shown below.‎

Download File

Copy Code
# Excerpt from main loop inside if button_right():
if magnetometer is not None:
base_mx, base_my, base_mz = mx, my, mz

The issues here could be summarised as:‎

  • There's no explanation in comments or documentation for this ‎inconsistency
  • There's no explanation for the 0.05 (50ms) pause in the for loop
  • A developer working on this code in the future is left to guess ‎the reasons for this and possibly duplicate them without being ‎able to justify the difference

The actual reason for the difference is the calibration feature was ‎added very late in the development process and was not part of any ‎initial design. The metal detector automatically adjusts the baseline ‎for the voltage which represents the inductance and presence of ‎metal. It does not do this for the magnetometer as this is a more ‎stable value. In testing it turned out to be useful sometimes to set a ‎new baseline for the magnetometer, so this was added as a feature ‎initiated by pressing the right button.‎

The small delay in the first code sample was based on prior ‎observations whilst developing the code for CLUE Sensor Plotter in ‎CircuitPython. The magnetometer issues duplicate values if read as ‎fast as possible (~230Hz) in CircuitPython. This suggests it has a fixed ‎rate for producing new values and the library does not wait (block) ‎for a new value to be produced. The adafruit_lis3mdl library shows a ‎set of different rates but does not document the default (the code ‎shows it as 155Hz). The adafruit_clue library does not set an explicit rate ‎which explains the duplication of results.‎

There's no particular reason for the difference in the number of ‎samples. This is worth checking particularly on power-up to see if the ‎sensor takes time to stabilise. The use case for user-initiated ‎recalibration may specify it occurs within a certain amount of time - ‎that would limit how many samples could be taken. In practical use, ‎the magnetometer value is fairly stable for tenths of microteslas (uT).‎

This could be enhanced with:‎

  • A concise explanation in the comments and any ‎documentation
  • For both uses, call a single function which includes a parameter ‎for the number of samples. This also ensures any future ‎modifications (software maintenance) to the code are applied ‎to both

ADC Analysis

adc_32

The normal distribution, also known as a Bell Curve, is a favourite of statisticians. The image is an ‎engraving of second Big Ben Bell from The Illustrated News of the World (1858).‎

The CLUE and Circuit Playground Bluefruit boards both use the ‎nRF52840 System on a Chip (SoC). This includes an analogue-to-‎digital converter (ADC) using the successive approximation design. ‎This is used in this project to measure the voltage across a capacitor. ‎CircuitPython configures this ADC in 12bit mode making each bit ‎equivalent to 0.806mV.‎

This page explores the consistency of the ADC and the distribution of ‎noise to determine if an average value (arithmetic mean) over a ‎certain number of samples is a valid approach to calculate an ‎accurate voltage.‎

Voltage across Capacitor in the Metal ‎Detector

The graph below shows 1000 successive samples from the same ‎function used in the program.‎

graph_33

The samples are shown as dots which grow in size and are coloured ‎relative to their distance from a fitted (straight) line. This visualisation ‎appears useful in confirming:‎

  • most values are near the line,
  • the distribution looks fairly even above and below the line(s),
  • a few values are significantly above or below the line, but these ‎also look reasonably evenly distributed either side for this ‎number of samples.‎

A second weighted line is also shown - this is a refinement created ‎by weighting the points based on their distance from the first line on ‎a scale of 4 to 1. This reduces the large effect that outliers have using ‎the least squares approach to line fitting. There's only a 0.2mV ‎difference between this potentially more accurate line's arithmetic ‎mean value and the samples suggesting a basic, quick-to-calculate ‎mean value gives a voltage with good accuracy. If the sampling was ‎reduced to, say 50 samples (over 2.4ms), then this looks more risky ‎for an outlier having a pronounced, adverse effect on the calculated ‎mean voltage.‎

The curve fitting is an unnecessary leftover from when this graphing ‎analysis code was used previously on a capacitor discharging. In this ‎case the capacitor is charging and discharging at a 400kHz rate. The ‎samples here have been gathered over ~47ms which covers over 18 ‎thousand charge cycles. This means the voltage will be largely ‎constant with a miniscule amount of ripple.‎

In this case, it's possible these outliers are genuine, but it seems ‎unlikely that the voltage is really jumping around because the:‎

  1. difference is so great,‎‎
  2. there's not an obvious "trail" of dots joining the spikes and
  3. there's a capacitor involved.‎

The use of weighting for this analysis means they are not ignored, ‎just downplayed based on the previous justification. Statistics by ‎Jim has a useful guide on distinguishing outliers and deciding what ‎to do with them. Discarding inconvenient results is not a good ‎justification!‎

This is a zoomed-in look at the lines. The scale exaggerates the tiny ‎gradient. The discrete ADC levels from 12bit sampling can be see ‎with the clearly defined rows of samples.‎

The P-P plot and Q-Q plot are common plots for visually comparing ‎the data to another distribution, in this case the normal distribution. ‎A matching distribution will overlap the straight line.‎

The histogram here is more of a bar chart as it's carefully aligned ‎with the quantized sample values. Only the central portion of values ‎is shown on this bar chart. This could show any ADC peculiarities ‎particularly with more graphs of samples. There's nothing that jumps ‎out as concerning here.‎

bar_34

bar_35

bar_36

bar_37

The choice of bucket size (width) for a histogram can have a large ‎effect on the visual representation of the data. If the data is ‎quantised in some way, then this effect can be more pronounced. ‎Checking and presenting varying bucket sizes is one way to avoid ‎creating misleading charts. The animated graph below shows ‎different bucket sizes across the full range of sample values ‎‎(voltages) with the data presented with the mean subtracted ‎making the central voltage 0mV.‎

sensors_md100nFcap4-fitted-line-residuals-histogram

A steady voltage reference source like a battery is a better test to ‎look at the ADC. The results for two 1000 sample runs against an old ‎alkaline AAA battery are very similar to the graphs above.‎

These tests were all conducted with the CLUE board powered by ‎USB power from a desktop computer. Some further testing would be ‎useful, like:‎

  1.  Powering the CLUE from battery power with USB power ‎removed to examine any adverse effects on the ADC from noise ‎on the power supply.
  2. Comparing multiple CLUE boards and other boards based on ‎the nRF52840.‎‎
  3. Checking the distribution on the samples when ‎measuring GND and 3.3V.‎‎
  4. Checking different ADC acquisition times - this requires use of ‎C++/Arduino.‎‎
  5. Comparing software over-sampling with nRF52840 hardware ‎over-sampling - this requires use of C++/Arduino.‎‎
  6. Looking at the sample data in the frequency domain to look for ‎any periodic peculiarities. This will be imperfect as the code in ‎CircuitPython is not taking samples at a precise rate and ‎the jitter will muddy everything except the very low ‎frequencies.‎

Going Further

Ideas for Areas to Explore

  • Vary the coil size and windings to see how this affects the ‎sensitivity.
  • Improve the magnetometer value as it currently only makes ‎use of the z dimension.
  • Add a recent peak feature to the voltage bar graph and ‎magnetometer circle.
  • If you are using the CPB without a screen:‎
    • Add some audio cues as time passes when the left button ‎is depressed to give an indication of the current menu ‎option.
    • Conditionally disable the screen update code for a faster ‎main loop or for better voltage stability from increased ‎sampling. The TFT Gizmo screen is not designed to be ‎detectable but the approach outlined in Adafruit Forums: ‎Is it possible to detect presence of Gizmo? is likely to work.‎

Related Projects

Further Reading

制造商零件编号 4500
CLUE NRF52840 EXPRESS
Adafruit Industries LLC
¥365.90
Details
制造商零件编号 3695
DRAGONTAIL FOR MICRO:BIT
Adafruit Industries LLC
¥72.85
Details
制造商零件编号 4333
CIRCUIT PLAYGROUND BLUEFRUIT BLE
Adafruit Industries LLC
¥203.09
Details
制造商零件编号 4367
CIRCUIT PLAYGROUND TFT GIZMO
Adafruit Industries LLC
¥168.09
Details
制造商零件编号 3893
JST PH 3PIN TO MALE HEADER CABLE
Adafruit Industries LLC
¥10.18
Details
制造商零件编号 592
CABLE A PLUG TO MCR B PLUG 3'
Adafruit Industries LLC
¥24.01
Details
制造商零件编号 64
BREADBOARD TERM STRIP 3.40X2.20"
Adafruit Industries LLC
¥41.71
Details
制造商零件编号 759
JUMPER WIRE M/M 2.950" 1PC
Adafruit Industries LLC
¥32.15
Details
制造商零件编号 3522
ENAMELED COPPER MAGNET WIRE 11
Adafruit Industries LLC
¥8.41
Details
制造商零件编号 727
BATTERY HOLDER AAA 3 CELL LEADS
Adafruit Industries LLC
¥17.27
Details
制造商零件编号 5601B
EDGE CONNECTOR BREAKOUT BOARD FO
Kitronik Ltd.
¥46.93
Details
制造商零件编号 CAB-09741
TEST LEAD HOOK TO TIP PLUG 2.5"
SparkFun Electronics
¥48.50
Details
制造商零件编号 2241
ADDRESS LED STRIP SERIAL RGB 1M
Adafruit Industries LLC
¥420.87
Details
Add all DigiKey Parts to Cart
TechForum

Have questions or comments? Continue the conversation on TechForum, DigiKey's online community and technical resource.

Visit TechForum
