MWS65-Slide6

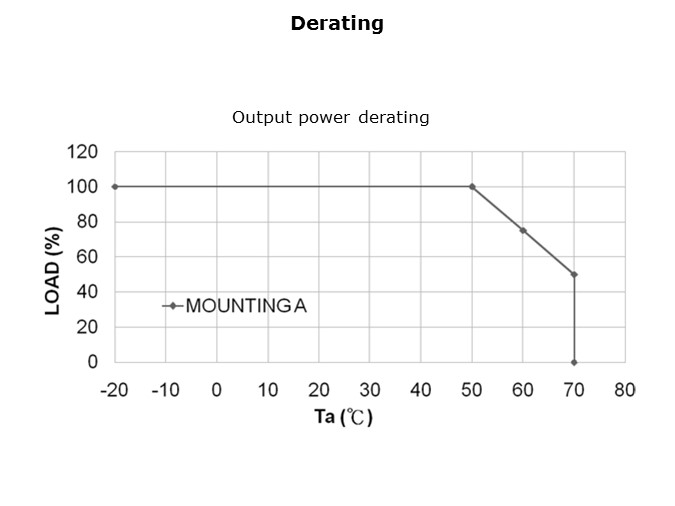

As shown on this slide, the units will deliver full power up to 50°C, derating to 50% load at 70°C. "Mounting A" refers to horizontal placement. Refer to the installation manual for other mounting orientations.
