Get in Touch with a World Without Buttons

Extreme front panel makeover - Serious Integrated Graphic Front Panel Solution Powered by Renesas

Designed for easy integration, Serious Integrated Modules (SIMs) are complete, intelligent graphic/touch panel modules. That means you get to prototypes in hours and production in weeks. Accelerate time to revenue. No supply-chain hassles.

Overcome the GUI software challenge with ease. And speed. Choose native C-based development with world-class, out-of-the-box RTOSs and BSPs. The Serious Human Interface™ Platform (SHIP) and the SHIPTide™ Rapid GUI Design Tool help you develop GUIs in remarkably short time with minimal coding.

View YLCDRX63N product page link

Embedded GUI Solution Kit with Serious Integrated

GUI Solution Kit

The Embedded GUI Solution kit provides a quick and easy way to add a low-cost LCD touchscreen to any embedded designs. With the tremendous growth of LCD touchscreens in smart phones and tablets, it is only natural for other markets like industrial, medical and appliances to migrate towards similar interfaces. The hardware is based on RX Direct Drive LCD (DDLCD) technology providing the performance required to handle the GUI as well as other functions at the same time.

  • 100 MHz RX63N with 2 MB Flash and 128 KB RAM
  • 4.3 WQVGA (480 x 272) color TFT-LCD touch screen display
  • 16 MB SDRAM, 16 MB serial Flash and 2 Kbit EEPROM
  • 24-pin I/O (GPIO, +5V, RESET#, UART) and RMII interface
  • JTAG debugger with USB cable

Discover just how easy it is to put the power of touch in your next design

Part Number Description
YLCDRX63N LCD SOLUTION KIT FOR RX63N YLCDRX63N datasheet link View YLCDRX63N product page link
Associated Products
SIM231-A01-R32ALM-01 DISPLAY RES TOUCH 4.3" WQVGA SGT SIM231-A01-R32ALM-01 datasheet link View SIM231-A01-R32ALM-01 product page link
SIM231-A01-DEV-01 DEV KIT +SPA200 SIM231-A01-R32AL SIM231-A01-DEV-01 datasheet link View SIM231-A01-DEV-01 product page link
RX63N RENESAS RX63N MICROCONTROLLERS RX63N datasheet link View RX63N product page link
RX631 RENESAS RX631 MICROCONTROLLERS RX631 datasheet link View RX631 product page link

Specifications:

  • Embedded: Yes, MCU, 32-Bit
  • Main Purpose: Displays, LCD Display
  • Supplied Contents: Board
  • Utilized IC / Part: RX63N

The Embedded GUI Solution Kit supports software from a wide variety of sources to provide you with the most flexibility in the development process. Current options include the following:





Perfect Touch Software Design Options

Rapid GUI DevelopmentMicrium

The choice is yours. Develop your GUI fast and with minimal coding using the Serious Human Interface™ Platform. Or, try your hand at traditional C-based GUI development.

  • SHIPTide - The Serious Human Interface™ Platform Total IDE is a rapid GUI development tool that enables you to create GUI files usable on Serious Integrated modules running the embedded SHIPEngine software.
  • SHIPEngine - SHIPEngine is the embedded runtime GUI engine for Serious Integrated Modules (SIMs) that turns cargo files created by SHIPTide into functioning, interactive GUIs.
  • C-Based GUI Development - Download SHIPWare source code from Serious to start creating your

Start coding today

Micriµm

Renesas has partnered with Micriµm, a leader in embedded software components, to deliver solutions that meet the core challenges facing designers today. Renesas customers receive free Micriµm RTOS and middleware license and support to achieve faster time-to-market with RX and RL MCUs.

Learn more about µC/GUI software from Micriµm | Download Trial

IAR

Get full support for entire range of Renesas MCUs

Get Serious About Touch Technology

Serious Integrated provides cost-effective, production-ready, directly embeddable graphics/touch front panel modules supported by a comprehensive integrated development environment. Designed for easy integration by OEM design teams and custom electronics design shops, Serious Integrated modules are complete, intelligent graphic/touch front panel modules.

Part Number Description
SIM231-A01-R32ALM-01 DISPLAY RES TOUCH 4.3" WQVGA SGT SIM231-A01-R32ALM-01 datasheet link View SIM231-A01-R32ALM-01 product page link
SIM231-A01-DEV-01 DEV KIT +SPA200 SIM231-A01-R32AL SIM231-A01-DEV-01 datasheet link View SIM231-A01-DEV-01 product page link

SIM231 Module 4.3" WQVGA Graphic/Touch Module Family

Micrium4.3" WQVGA 480×272 color TFT display

  • Various touch panel options
  • Color depths from 16 to 24-bit
  • Serious Gatling™ Technology for rapid-fire pixel delivery to the LCD with minimal CPU intervention

100MHz 32-bit Renesas RX631/RX63N MCU

  • 128 KB RAM, 512 KB - 2 MB FLASH
  • Integrated temp sensor & RTCC
  • Ethernet RMII available on expansion connector on some variants

On Module Memory

  • 8-16 MB SDRAM
  • 8-16 MB serial FLASH + 4 kbit EEPROM

Extensive I/O

  • 60-pin Expansion Connector (GPIO, +5V, RESET#, I2C, SPI, UART; RMII on 63N-based units)
  • Serious system-to-system 16-pin Power/Communications Connector
  • SHIP Programming Port for rapid GUI/Firmware programming
  • USB Micro B Device Connector
  • USB A Host Connector
  • Tag-Connect JTAG Port

PCB operating temperatures as wide as -40 to 85°C; LCD option may restrict operating range.

RX63N and RX631 Microcontrollers

Renesas Electronics is committed to developing a wide range of technology that enables you to design smart new products. Focused on concrete and readily available solutions, like our new Renesas Embedded GUI Solution Kit, our goal is to give you a competitive advantage by eliminating headaches, accelerating time-to-GUI and reducing cost.

Part Number Description
RX63N RENESAS RX63N MICROCONTROLLERS RX63N datasheet link View RX63N product page link
RX631 RENESAS RX631 MICROCONTROLLERS RX631 datasheet link View RX631 product page link

Renesas RX600

Renesas RX63NRX631

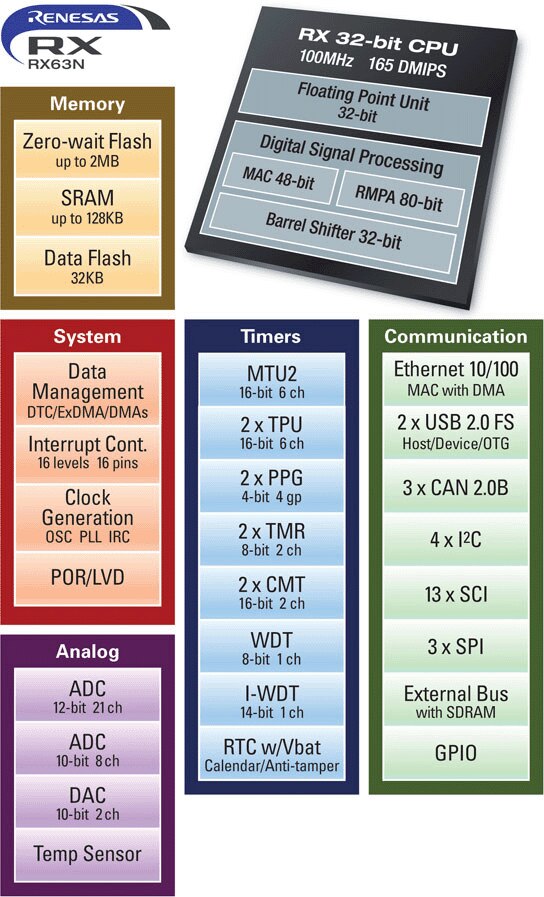

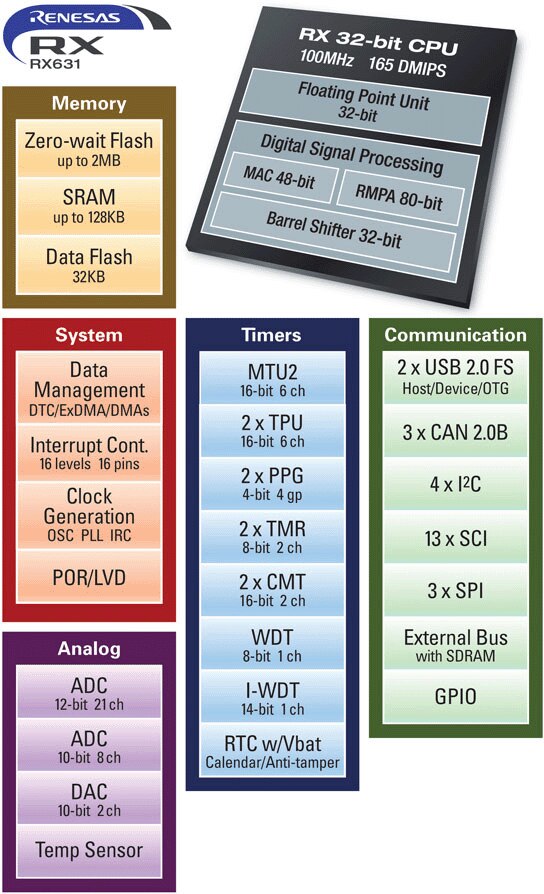

63N Block Diagram 631 Block Diagram
