RX Low Voltage Detection and Reset Sources

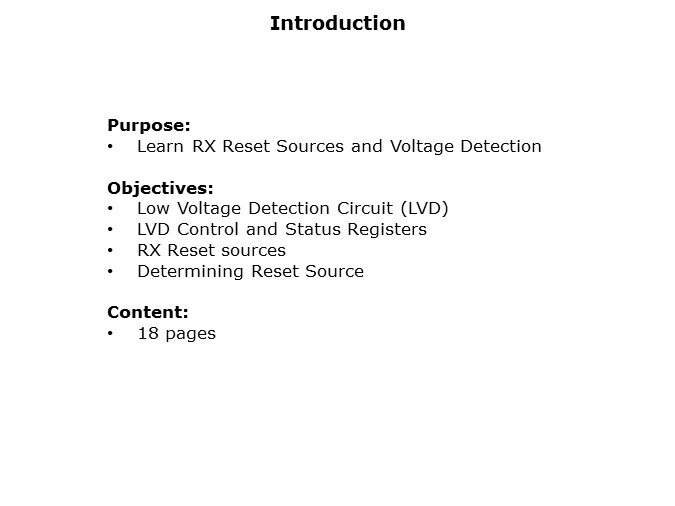

Welcome to the Renesas Low Voltage Detection and Reset Sources product training module. The purpose of this interactive course is to provide a basic understanding of the RX voltage detection circuit and sources of reset. This presentation will cover the low voltage detection circuit (LVD), the LVD control and status registers, sources of reset in the RX as well as how to determine which source was the cause of a reset.
