LT3798-Slide6

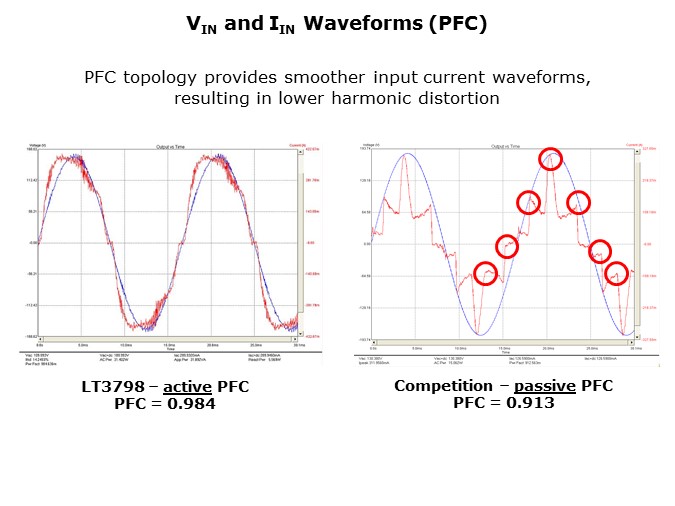

This slide compares what the input current looks when using the LT3798 compared to an alternative passive PFC design. An LT3798 based design produces a 0.98 power factor, whereas a passive PFC circuit has a 0.91 power factor and has current spikes, making it more difficult to pass EMI standards.

PTM Published on: 2012-07-12
