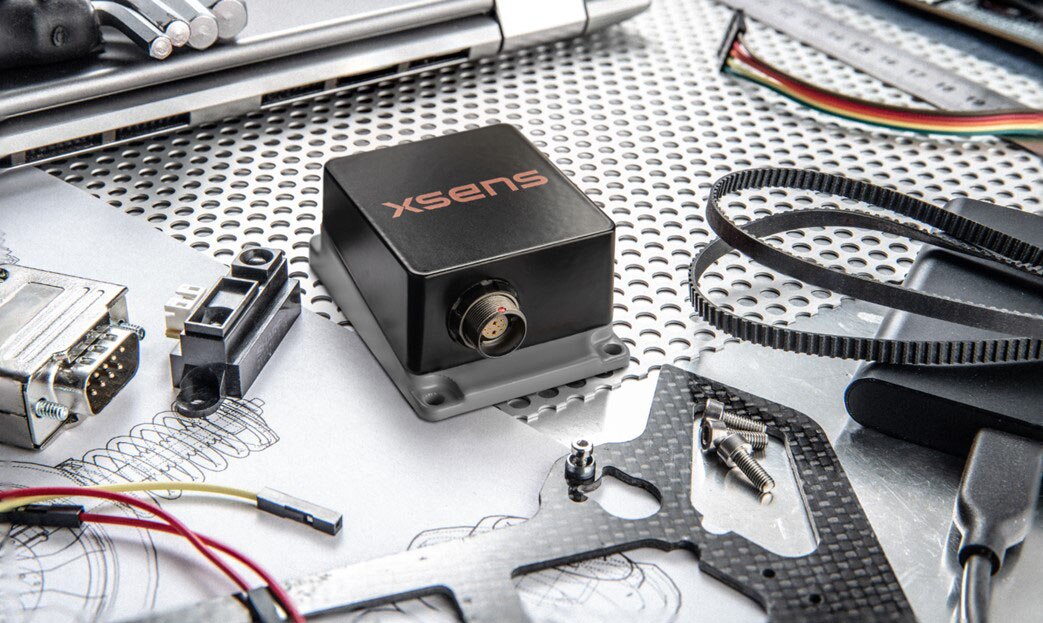

Sirius Rugged Modules
Xsens/Movella industrial sensors are available in IMU, VRU, and AHRS variations
The Xsens/Movella Sirius rugged modules are the successors of the Xsens/Movella MTi-100 series, suitable for high-volume industrial applications. The Sirius rugged modules feature vibration and shock-resistant signal pipelines and offer high-quality calibrated inertial and orientation data (roll, pitch, yaw), even in extreme environments over long periods. With Xsens/Movella technology inside, the all-in-one sensor system supports optimized temperature calibration, high-frequency output, robustness against magnetic disturbances, and configurable output settings for synchronization with any third-party device.
Features
- Vibration and shock-resistant
- High-performance strapdown integration (SDI)
- Flexible interfaces and protocols for seamless integration
- Specifications
- 56.5 mm x 40.9 mm x 24.75 mm
- Interfaces: RS232, RS422, CAN
- Certifications: CE, FCC, RoHS, MIL-STD-202, ITAR free
- Power consumption: <1 W
- 0.2° roll/pitch accuracy (AHRS/VRU)
- <1° yaw/heading accuracy (AHRS)
- 4.5 V to 24 V input voltage range
- Achieve new levels of accuracy with high-quality calibrated roll, pitch, and yaw data
- Rugged, IP68 rated, military standard certified
- Gyroscope
- ±300°/sec standard full range
- 400 Hz bandwidth
- Accelerometer
- ±8 G standard full range
- 470 Hz bandwidth
- Magnetometer
- ±8 G standard full range
- 1 mG total RMS noise
- 0.2% non-linearity
- 0.25 mG resolution
Applications
- Outdoor mobile robots
- Marine ROV/AUVs
- Training/simulation
- Ag tech
- Autonomous ground vehicles
- Automotive
- Mapping/surveying
Sirius Rugged Modules
| 图片 | 制造商零件编号 | 描述 | 可供货数量 | 价格 | 查看详情 | |
|---|---|---|---|---|---|---|
 | S1M43A | PRODUCT NAME: XSENS SIRIUS IMU R | 0 - 立即发货 | $15,615.43 | 查看详情 | |
| S1M43B | PRODUCT NAME: XSENS SIRIUS IMU R | 0 - 立即发货 | $13,220.14 | 查看详情 | |
| S1V43A | PRODUCT NAME: XSENS SIRIUS VRU R | 0 - 立即发货 | $17,017.50 | 查看详情 | |
| S1V43B | PRODUCT NAME: XSENS SIRIUS VRU R | 0 - 立即发货 | $15,889.51 | 查看详情 | |
| S1A43A | PRODUCT NAME: XSENS SIRIUS AHRS | 0 - 立即发货 | $20,014.30 | 查看详情 | |
| S1A43B | PRODUCT NAME: XSENS SIRIUS AHRS | 0 - 立即发货 | $19,561.52 | 查看详情 | |
| S1A43A-DK | EVAL BOARD FOR S1A43A | 0 - 立即发货 | $22,015.73 | 查看详情 | |
| S1A43B-DK | EVAL BOARD FOR S1A43B | 0 - 立即发货 | $19,850.67 | 查看详情 |
