Raltron

晶体谐振器工程设计套件

Raltron 的晶体谐振器设计套件涵盖了常用的晶体频率、规格和封装尺寸

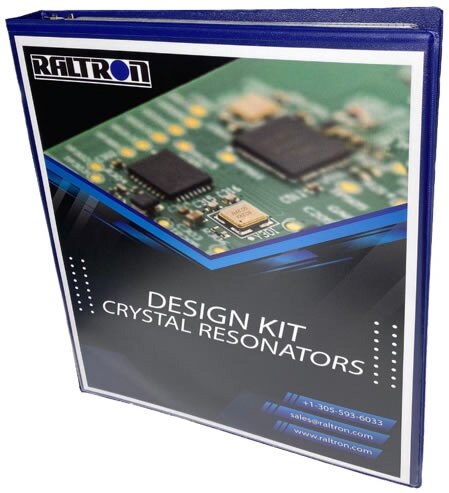

Raltron 的晶体谐振器工程设计套件图片Raltron 的晶体谐振器设计套件涵盖了当今电子设备中常用的晶体频率、规格和封装尺寸。该套件包含 60 多种频率、负载电容和封装尺寸的组合，这些组合常见于市场上最流行的 IC 中。样件包括：5032 至 1210 的陶瓷封装尺寸，频率为 8 MHz 至 50 MHz；3215 至 1210 尺寸封装，频率为 32.768 kHz。

特性

  • 包含 66 个不同件号的样件
  • 5032 至 1210 的陶瓷封装尺寸，频率为 8 MHz 至 50 MHz
  • 3215 至 1210 尺寸封装，频率为 32.768 kHz

资源

Crystal Resonators Engineering Design Kit

图片制造商零件编号描述安装类型包括的封装可供货数量价格查看详情
CRYSTAL KIT 66 INDV XTALS 5PC EACRYSTAL KITCRYSTAL KIT 66 INDV XTALS 5PC EA表面贴装型-3 - 立即发货$1,173.88查看详情

Frequency: 32.768 kHz

图片制造商零件编号描述频率频率稳定性负载电容可供货数量价格查看详情
CRYSTAL 32.7680KHZ 12.5PF SMDRT1610-32.768-12.5-TRCRYSTAL 32.7680KHZ 12.5PF SMD32.768 kHz-12.5pF0 - 立即发货$5.29查看详情
CRYSTAL 32.7680KHZ 9PF SMDRT1610-32.768-9-TRCRYSTAL 32.7680KHZ 9PF SMD32.768 kHz-9pF0 - 立即发货$6.35查看详情
CRYSTAL 32.7680KHZ 6PF SMDRT2012-32.768-6-TRCRYSTAL 32.7680KHZ 6PF SMD32.768 kHz-6pF67372 - 立即发货$5.70查看详情
CRYSTAL 32.7680KHZ 12.5PF SMDRT2012-32.768-12.5-EXT-TRCRYSTAL 32.7680KHZ 12.5PF SMD32.768 kHz-12.5pF3467 - 立即发货$4.31查看详情
CRYSTAL 32.7680KHZ 9PF SMDRT2012-32.768-9-20-EXT-TRCRYSTAL 32.7680KHZ 9PF SMD32.768 kHz-9pF10169 - 立即发货$5.62查看详情
CRYSTAL 32.7680KHZ 7PF SMDRT2012-32.768-7-TRCRYSTAL 32.7680KHZ 7PF SMD32.768 kHz-7pF11204 - 立即发货$4.72查看详情
CRYSTAL 32.7680KHZ 12.5PF SMDRT3215-32.768-12.5-TRCRYSTAL 32.7680KHZ 12.5PF SMD32.768 kHz-12.5pF83601 - 立即发货$3.74查看详情
CRYSTAL 32.7680KHZ 6PF SMDRT3215-32.768-6-EXT-TRCRYSTAL 32.7680KHZ 6PF SMD32.768 kHz-6pF4967 - 立即发货$4.88查看详情
CRYSTAL 32.7680KHZ 9PF SMDRT3215-32.768-9-TR-10PPMCRYSTAL 32.7680KHZ 9PF SMD32.768 kHz-9pF0 - 立即发货$5.54查看详情

Size: 1.2 mm x 1.0 mm, Frequency: 32.000 MHz to 38.400 MHz

图片制造商零件编号描述频率稳定性负载电容ESR（等效串联电阻）可供货数量价格查看详情
CRYSTAL 38.4MHZ 10PF SMDR1210-38.400-10-F-2020-TRCRYSTAL 38.4MHZ 10PF SMD±20ppm10pF150 Ohms1972 - 立即发货$10.34查看详情
CRYSTAL 32.0MHZ 5PF SMDR1210-32.000-5-F-0720-TRCRYSTAL 32.0MHZ 5PF SMD±20ppm5pF150 Ohms2978 - 立即发货$10.34查看详情

Size: 1.6 mm x 1.2 mm, Frequency: 24.000 MHz to 48.000 MHz

图片制造商零件编号描述负载电容ESR（等效串联电阻）工作模式可供货数量价格查看详情
CRYSTAL 32.0000MHZ 8PF SMDR1612-32.000-8-F-1010-TR-NS2CRYSTAL 32.0000MHZ 8PF SMD8pF150 Ohms基谐2164 - 立即发货$5.86查看详情
CRYSTAL 24.0000MHZ 8PF SMDR1612-24.000-8-1020-TR-NS1CRYSTAL 24.0000MHZ 8PF SMD8pF150 Ohms基谐3000 - 立即发货$3.66查看详情
CRYSTAL 48.0MHZ 10PF SMDR1612-48.000-10-F-1010-TRCRYSTAL 48.0MHZ 10PF SMD10pF80 Ohms基谐2949 - 立即发货$5.86查看详情
CRYSTAL 27.0000MHZ 8PF SMDR1612-27.000-8-F-1530-TRCRYSTAL 27.0000MHZ 8PF SMD8pF150 Ohms基谐3000 - 立即发货$5.37查看详情
CRYSTAL 37.7MHZ 16PF SMDR1612-37.400-16-F-1010-TR-NS2CRYSTAL 37.7MHZ 16PF SMD16pF80 Ohms基谐3000 - 立即发货$5.86查看详情
CRYSTAL 26.0000MHZ 10PF SMDR1612-26.000-10-F-1010-TR-NS1CRYSTAL 26.0000MHZ 10PF SMD10pF150 Ohms基谐2280 - 立即发货$3.66查看详情
CRYSTAL 38.4000MHZ 10PF SMDR1612-38.400-10-F-1010-TR-NS1CRYSTAL 38.4000MHZ 10PF SMD10pF150 Ohms基谐2994 - 立即发货$5.37查看详情
CRYSTAL 25.0000MHZ 9PF SMDR1612-25.000-9-F-1010-TRCRYSTAL 25.0000MHZ 9PF SMD9pF150 Ohms基谐2827 - 立即发货$5.86查看详情
CRYSTAL 40.0000MHZ 8PF SMDR1612-40.000-8-F-2020-TR-NS1CRYSTAL 40.0000MHZ 8PF SMD8pF150 Ohms基谐2968 - 立即发货$5.37查看详情
CRYSTAL 27.1200MHZ 8PF SMDR1612-27.120-8-F-3030-EXT-TRCRYSTAL 27.1200MHZ 8PF SMD8pF150 Ohms基谐2931 - 立即发货$5.37查看详情

Size: 2.0 mm x 1.6 mm, Frequency: 16.000 MHz to 50.000 MHz

图片制造商零件编号描述负载电容ESR（等效串联电阻）可供货数量价格查看详情
CRYSTAL 25.0000MHZ 20PF SMDR2016-25.000-20-F-1515-EXT-TRCRYSTAL 25.0000MHZ 20PF SMD20pF120 Ohms443 - 立即发货$3.99查看详情
CRYSTAL 50.0MHZ 8PF SMDR2016-50.000-8-F-1020-TRCRYSTAL 50.0MHZ 8PF SMD8pF60 Ohms2999 - 立即发货$3.42查看详情
CRYSTAL 38.4000MHZ 10PF SMDR2016-38.400-10-F-1010-TRCRYSTAL 38.4000MHZ 10PF SMD10pF100 Ohms3009 - 立即发货$4.56查看详情
CRYSTAL 48.0000MHZ 8PF SMDR2016-48.000-8-F-1515-EXT-TRCRYSTAL 48.0000MHZ 8PF SMD8pF60 Ohms1369 - 立即发货$9.69查看详情
CRYSTAL 27.1200MHZ 10PF SMDR2016-27.120-10-F-1010-TR-NS4CRYSTAL 27.1200MHZ 10PF SMD10pF100 Ohms20062 - 立即发货$2.69查看详情
CRYSTAL 24.0000MHZ 10PF SMDR2016-24.000-10-1010-TR-NS1CRYSTAL 24.0000MHZ 10PF SMD10pF120 Ohms5990 - 立即发货$3.50查看详情
CRYSTAL 16.0000MHZ 10PF SMDR2016-16.000-10-1015-TR-NS1CRYSTAL 16.0000MHZ 10PF SMD10pF200 Ohms0 - 立即发货$2.93查看详情
CRYSTAL 27.0000MHZ 8PF SMDR2016-27.000-8-F-1010-EXT-TRCRYSTAL 27.0000MHZ 8PF SMD8pF100 Ohms767 - 立即发货$4.56查看详情
CRYSTAL 30.0000MHZ 8PF SMDR2016-30.000-8-F-1010-TR-NS1CRYSTAL 30.0000MHZ 8PF SMD8pF100 Ohms2942 - 立即发货$4.56查看详情
CRYSTAL 26.0000MHZ 10PF SMDR2016-26.000-10-F-1010-TRCRYSTAL 26.0000MHZ 10PF SMD10pF100 Ohms2805 - 立即发货$4.56查看详情
CRYSTAL 40.0000MHZ 8PF SMDR2016-40.000-8-F-1515-TR-NS1CRYSTAL 40.0000MHZ 8PF SMD8pF100 Ohms2765 - 立即发货$4.15查看详情
CRYSTAL 20.0000MHZ 10PF SMDR2016-20.000-10-3030-EXT-TRCRYSTAL 20.0000MHZ 10PF SMD10pF200 Ohms2856 - 立即发货$3.26查看详情

Size: 2.5 mm x 2.0 mm, Frequency: 12.000 MHz to 40.000 MHz

图片制造商零件编号描述负载电容ESR（等效串联电阻）可供货数量价格查看详情
CRYSTAL 20.0000MHZ 10PF SMDR2520-20.000-10-1010-TR-NS1CRYSTAL 20.0000MHZ 10PF SMD10pF150 Ohms2624 - 立即发货$3.26查看详情
CRYSTAL 16.0000MHZ 10PF SMDR2520-16.000-10-1020-EXT-TRCRYSTAL 16.0000MHZ 10PF SMD10pF150 Ohms2372 - 立即发货$2.93查看详情
CRYSTAL 25.0000MHZ 10PF SMDR2520-25.000-10-F-2020-TR-NS3CRYSTAL 25.0000MHZ 10PF SMD10pF100 Ohms2237 - 立即发货$2.69查看详情
CRYSTAL 12.0000MHZ 10PF SMDR2520-12.000-10-3030-TRCRYSTAL 12.0000MHZ 10PF SMD10pF180 Ohms0 - 立即发货$2.85查看详情
CRYSTAL 26.0000MHZ 10PF SMDR2520-26.000-10-F-1010-EXT-TRCRYSTAL 26.0000MHZ 10PF SMD10pF100 Ohms1950 - 立即发货$2.85查看详情
CRYSTAL 38.4MHZ 10PF SMDR2520-38.400-10-F-1020-TRCRYSTAL 38.4MHZ 10PF SMD10pF60 Ohms879 - 立即发货$2.36查看详情
CRYSTAL 32.0000MHZ 10PF SMDR2520-32.000-10-F-1010-TR-B1BCRYSTAL 32.0000MHZ 10PF SMD10pF60 Ohms3450 - 立即发货$3.01查看详情
CRYSTAL 24.0000MHZ 10PF SMDR2520-24.000-10-1010-TR-NS4CRYSTAL 24.0000MHZ 10PF SMD10pF100 Ohms12608 - 立即发货$1.87查看详情
CRYSTAL 27.1200MHZ 10PF SMDR2520-27.120-10-F-1515-TR-NS1CRYSTAL 27.1200MHZ 10PF SMD10pF100 Ohms0 - 立即发货$2.69查看详情
CRYSTAL 30.0000MHZ 10PF SMDR2520-30.000-10-F-1010-TR-NS3CRYSTAL 30.0000MHZ 10PF SMD10pF100 Ohms1160 - 立即发货$3.26查看详情
CRYSTAL 40.0000MHZ 10PF SMDR2520-40.000-10-F-1010-EXT-TRCRYSTAL 40.0000MHZ 10PF SMD10pF60 Ohms0 - 立即发货$2.85查看详情

Size: 3.2 mm x 2.5 mm, Frequency: 8.000 MHz to 50.000 MHz

图片制造商零件编号描述负载电容ESR（等效串联电阻）可供货数量价格查看详情
CRYSTAL 18.4320MHZ 18PF SMDRH100-18.432-18-2030-EXT-TRCRYSTAL 18.4320MHZ 18PF SMD18pF70 Ohms2497 - 立即发货$1.95查看详情
CRYSTAL 20.0000MHZ 18PF SMDRH100-20.000-18-2020-TRCRYSTAL 20.0000MHZ 18PF SMD18pF70 Ohms818 - 立即发货$2.20查看详情
CRYSTAL 27.0000MHZ 12PF SMDRH100-27.000-12-F-1010-TRCRYSTAL 27.0000MHZ 12PF SMD12pF60 Ohms1 - 立即发货$2.44查看详情
CRYSTAL 14.7456MHZ 18PF SMDRH100-14.7456-18-TRCRYSTAL 14.7456MHZ 18PF SMD18pF80 Ohms1845 - 立即发货$2.36查看详情
CRYSTAL 27.1200MHZ 10PF SMDRH100-27.120-10-F-3030-TRCRYSTAL 27.1200MHZ 10PF SMD10pF60 Ohms1778 - 立即发货$2.20查看详情
CRYSTAL 40.0000MHZ 10PF SMDRH100-40.000-10-F-1010-TRCRYSTAL 40.0000MHZ 10PF SMD10pF50 Ohms1363 - 立即发货$2.52查看详情
CRYSTAL 14.31818MHZ 18PF SMDRH100-14.31818-18-3030-EXT-TRCRYSTAL 14.31818MHZ 18PF SMD18pF80 Ohms235 - 立即发货$2.20查看详情
CRYSTAL 50.0000MHZ 10PF SMDRH100-50.000-10-F-1015-EXT-TRCRYSTAL 50.0000MHZ 10PF SMD10pF50 Ohms2062 - 立即发货$2.36查看详情
CRYSTAL 24.0000MHZ 20PF SMDRH100-24.000-20-1010-TRCRYSTAL 24.0000MHZ 20PF SMD20pF60 Ohms5421 - 立即发货$1.87查看详情
CRYSTAL 12.0000MHZ 10PF SMDRH100-12.000-10-2020-EXT-TRCRYSTAL 12.0000MHZ 10PF SMD10pF100 Ohms2390 - 立即发货$1.71查看详情
CRYSTAL 16.0000MHZ 18PF SMDRH100-16.000-18-2030-EXT-TRCRYSTAL 16.0000MHZ 18PF SMD18pF70 Ohms5 - 立即发货$1.87查看详情
CRYSTAL 25.0000MHZ 18PF SMDRH100-25.000-18-F-1010-TRCRYSTAL 25.0000MHZ 18PF SMD18pF60 Ohms9035 - 立即发货$2.52查看详情
CRYSTAL 8.0000MHZ 20PF SMDRH100-8.000-20-3050-EXT-TRCRYSTAL 8.0000MHZ 20PF SMD20pF800 Ohms4269 - 立即发货$3.42查看详情
CRYSTAL 10.0000MHZ 10PF SMDRH100-10.000-10-5050-TRCRYSTAL 10.0000MHZ 10PF SMD10pF250 Ohms5128 - 立即发货$1.87查看详情
CRYSTAL 48.0000MHZ 10PF SMDRH100-48.000-10-F-1015-EXT-TRCRYSTAL 48.0000MHZ 10PF SMD10pF50 Ohms12321 - 立即发货$2.12查看详情
CRYSTAL 26.0000MHZ 10PF SMDRH100-26.000-10-F-1010-EXT-TRCRYSTAL 26.0000MHZ 10PF SMD10pF60 Ohms1970 - 立即发货$1.71查看详情
CRYSTAL 32.0000MHZ 10PF SMDRH100-32.000-10-F-1010-TRCRYSTAL 32.0000MHZ 10PF SMD10pF50 Ohms5737 - 立即发货$2.20查看详情
CRYSTAL 38.4000MHZ 10PF SMDRH100-38.400-10-F-1010-TRCRYSTAL 38.4000MHZ 10PF SMD10pF50 Ohms3284 - 立即发货$1.71查看详情
CRYSTAL 30.0000MHZ 10PF SMDRH100-30.000-10-F-1010-TRCRYSTAL 30.0000MHZ 10PF SMD10pF50 Ohms8511 - 立即发货$1.87查看详情

Size: 5.0 mm x 3.2 mm, Frequency: 8.000 MHz

图片制造商零件编号描述负载电容ESR（等效串联电阻）可供货数量价格查看详情
CRYSTAL 8.0000MHZ 18PF SMDH130B-8.000-18-3030-EXT-TRCRYSTAL 8.0000MHZ 18PF SMD18pF85 Ohms0 - 立即发货$3.66查看详情
发布日期： 2021-09-27
