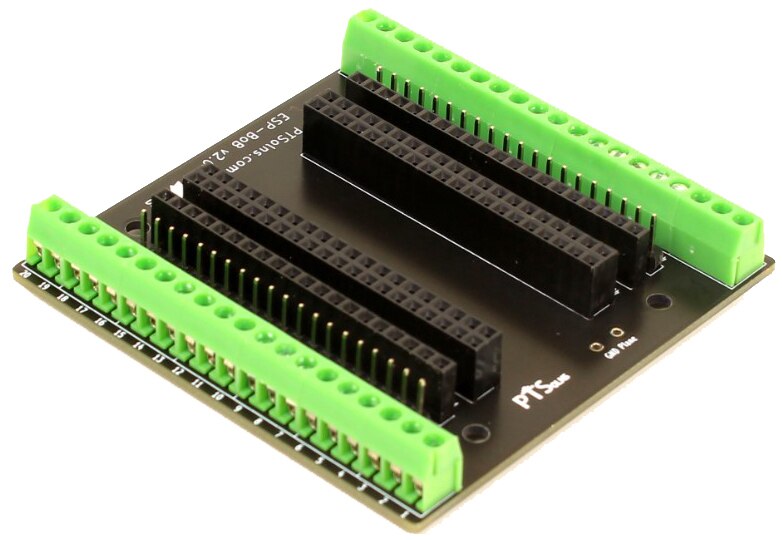

Breakout Board (BoB) for Common ESP-Based MCUs

The PTSolns ESP-BoB kit is an unassembled kit designed to interface with ESP development boards, and other similarly sized boards.

The central double-row female headers can accept many of the common microcontrollers, up to 20 rows in length and between 8 to 10 row spacings in width (20.32 mm, 22.86 mm, 25.40 mm). The breakouts on both sides include a footprint for a row of female header, a row of male header, and a row of screw terminals.
