General Purpose SAR ADCs

Analog Devices' successive approximation register (SAR) ADC portfolio offers a broad mix of devices from the industry-leading 20-bit LTC2378-20 family with unrivaled 0.5 ppm INL, to devices like the 16-bit, 5 Msps LTC2323 family with wide common mode input range and Nyquist sampling bandwidth. The portfolio consists of resolutions from 8 bits up to our industry-leading 24-bit ADCs, fast no-latency sampling up to 15 Msps, single channel and multiplexed/simultaneous sampling ADCs, and choices of parallel or serial interfaces that offer CMOS or LVDS options.

Featured General Purpose SAR ADCs

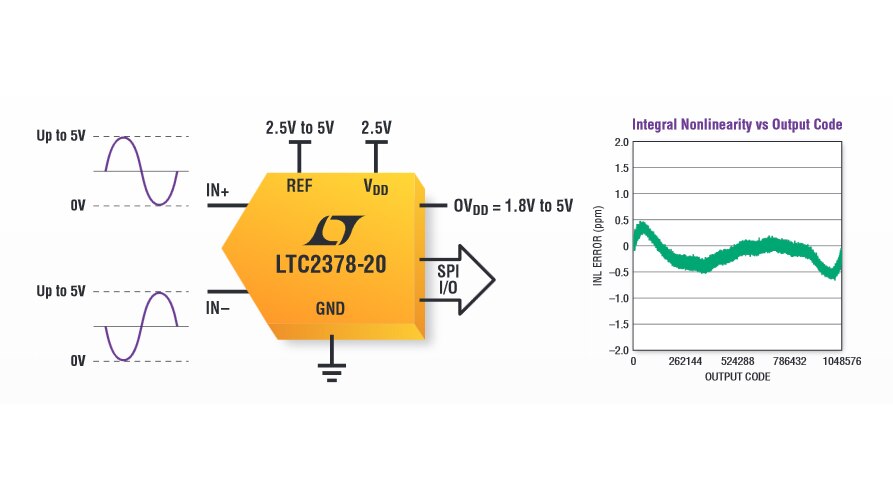

Click to expand	20-Bit, 1 Msps, Low Power SAR ADC with 0.5 ppm INL
	±0.5 ppm INL (Typ) Guaranteed 20-Bit No Missing Codes Low Power: 21 mW at 1 Msps, 21 μW at 1 ksps	104 dB SNR (Typ) at fIN = 2 kHz –125 dB THD (Typ) at fIN = 2 kHz No Pipeline Delay, No Cycle Latency

• General Purpose SAR ADC Product Table
• General Purpose SAR ADC Comparison Chart

Bits:	8 10 12 14 16 18 20
Channels:	1 2 4 8

Product	Bits	Ch.	Speed (Msps)	I/O	Supply Voltage Range	Input Drive	SINAD (dB)	Internal Reference
LTC1403	12	1	2800	Serial SPI	3V	Differential, Single-Ended	70.5	Yes
LTC1403-1	12	1	2800	Serial SPI	3V	Differential, Single-Ended	70.5	Yes
LTC1403A	14	1	2800	Serial SPI	3V	Differential, Single-Ended	73.5	Yes
LTC1403A-1	14	1	2800	Serial SPI	3V	Differential, Single-Ended	73.5	Yes
LTC1407	12	2	3000	Serial SPI	3V	Differential, Single-Ended	70.5	Yes
LTC1407-1	12	2	3000	Serial SPI	3V	Differential, Single-Ended	70.5	Yes
LTC1407A	14	2	3000	Serial SPI	3V	Differential, Single-Ended	73.5	Yes
LTC1407A-1	14	2	3000	Serial SPI	3V	Differential, Single-Ended	73.5	Yes
LTC1408	14	6	600	Serial SPI	2.7V to 3.6V	Differential, Single-Ended	76	Yes
LTC1408-12	12	6	600	Serial SPI	3V	Differential, Single-Ended	72	Yes
LTC1417	14	1	400	Serial SPI	5V, ±5V	Differential, Single-Ended	81	Yes
LTC1419	14	1	800	Parallel	±5V	Differential, Single-Ended	81.5	Yes
LTC1594	12	4	16.8	Serial SPI	5V	Single-Ended	71	No
LTC1594L	12	4	10.5	Serial SPI	3V	Single-Ended	68	No
LTC1598	12	8	16.8	Serial SPI	5V	Single-Ended	71	No
LTC1598L	12	8	10.5	Serial SPI	3V	Single-Ended	68	No
LTC1604	16	1	333	Parallel	±5V	Differential, Single-Ended	90	Yes
LTC1605	16	1	100	Parallel	5V	Single-Ended	87	Yes
LTC1605-1	16	1	100	Parallel	5V	Single-Ended	87	Yes
LTC1605-2	16	1	100	Parallel	5V	Single-Ended	87	Yes
LTC1606	16	1	250	Parallel	5V	Single-Ended	90	Yes
LTC1608	16	1	500	Parallel	±5V	Differential, Single-Ended	90	Yes
LTC1609	16	1	200	Serial SPI	5V	Single-Ended	87.5	Yes
LTC1850	10	8	1250	Parallel	5V	Differential, Single-Ended	61	Yes
LTC1851	12	8	1250	Parallel	5V	Differential, Single-Ended	71	Yes
LTC1852	10	8	400	Parallel	2.7V to 5.5V	Differential, Single-Ended	72.5	Yes
LTC1853	12	8	400	Parallel	2.7V to 5.5V	Differential, Single-Ended	72.5	Yes
LTC1854	12	8	100	Serial SPI	4.75V to 5.25V	Differential, Single-Ended	74	Yes
LTC1856	16	8	100	Serial SPI	4.75V to 5.25V	Differential, Single-Ended	87	Yes
LTC1857	12	8	100	Serial SPI	5V	Differential, Single-Ended	74	Yes
LTC1858	14	8	100	Serial SPI	5V	Differential, Single-Ended	83	Yes
LTC1859	16	8	100	Serial SPI	5V	Differential, Single-Ended	87	Yes
LTC1860	12	1	250	Serial SPI	5V	Differential, Single-Ended	71	No
LTC1860L	12	1	150	Serial SPI	3V	Differential, Single-Ended	72	No
LTC1861	12	2	250	Serial SPI	5V	Differential, Single-Ended	72	No
LTC1861L	12	2	150	Serial SPI	3V	Differential, Single-Ended	72	No
LTC1863	12	8	200	Serial SPI	5V	Differential, Single-Ended	73.5	Yes
LTC1863L	12	8	175	Serial SPI	2.7V to 6V	Differential, Single-Ended	73	Yes
LTC1864	16	1	250	Serial SPI	5V	Differential, Single-Ended	87	No
LTC1864L	16	1	150	Serial SPI	3V	Differential, Single-Ended	82	No
LTC1865	16	2	250	Serial SPI	5V	Differential, Single-Ended	87	No
LTC1865L	16	2	150	Serial SPI	3V	Differential, Single-Ended	82	No
LTC1867	16	8	200	Serial SPI	5V	Differential, Single-Ended	88	Yes
LTC1867L	16	8	175	Serial SPI	2.7V to 3.6V	Differential, Single-Ended	83.1	Yes
LTC2301	12	1	14	Serial I2C	5V	Differential	73.4	Yes
LTC2302	12	1	500	Serial SPI	5V	Differential	72.8	No
LTC2305	12	2	14	Serial I2C	5V	Differential, Single-Ended	73.4	Yes
LTC2306	12	2	500	Serial SPI	5V	Differential, Single-Ended	72.8	No
LTC2308	12	8	500	Serial SPI	5V	Differential, Single-Ended	73.3	Yes
LTC2309	12	8	14	Serial I2C	5V	Differential, Single-Ended	73.3	Yes
LTC2314-14	14	1	4500	Serial SPI	2.7V to 5.5V	Single-Ended	77	Yes
LTC2315-12	12	1	5000	Serial SPI	2.7V to 5.5V	Single-Ended	72.6	Yes
LTC2351-12	12	6	1500	Serial SPI	3V	Differential, Single-Ended	72	Yes
LTC2351-14	14	6	1500	Serial SPI	3V	Differential, Single-Ended	75	Yes
LTC2355-12	12	1	3500	Serial SPI	3.3V	Differential, Single-Ended	71.1	Yes
LTC2355-14	14	1	3500	Serial SPI	3.3V	Differential, Single-Ended	74.2	Yes
LTC2356-12	12	1	3500	Serial SPI	3.3V	Differential, Single-Ended	71.1	Yes
LTC2356-14	14	1	3500	Serial SPI	3.3V	Differential, Single-Ended	74.1	Yes
LTC2364-16	16	1	250	Serial SPI	2.5V	Pseudo-Differential	94.7	No
LTC2364-18	18	1	250	Serial SPI	2.5V	Pseudo-Differential	97	No
LTC2367-16	16	1	500	Serial SPI	2.5V	Pseudo-Differential	94.7	No
LTC2367-18	18	1	500	Serial SPI	2.5V	Pseudo-Differential	97	No
LTC2368-16	16	1	1000	Serial SPI	2.5V	Pseudo-Differential	94.7	No
LTC2368-18	18	1	1000	Serial SPI	2.5V	Pseudo-Differential	97	No
LTC2369-18	18	1	1600	Serial SPI	2.5V	Pseudo-Differential	96.5	No
LTC2370-16	16	1	2000	Serial SPI	2.5V	Pseudo-Differential	93.9	No
LTC2376-16	16	1	250	Serial SPI	2.5V	Differential	97	No
LTC2376-18	18	1	250	Serial SPI	2.5V	Differential	102	No
LTC2376-20	20	1	250	Serial SPI	2.5V	Differential	104	No
LTC2377-16	16	1	500	Serial SPI	2.5V	Differential	97	No
LTC2377-18	18	1	500	Serial SPI	2.5V	Differential	102	No
LTC2377-20	20	1	500	Serial SPI	2.5V	Differential	104	No
LTC2378-16	16	1	1000	Serial SPI	2.5V	Differential	97	No
LTC2378-18	18	1	1000	Serial SPI	2.5V	Differential	102	No
LTC2378-20	20	1	1000	Serial SPI	2.5V	Differential	104	No
LTC2379-18	18	1	1600	Serial SPI	2.5V	Differential	101	No
LTC2380-16	16	1	2000	Serial SPI	2.5V	Differential	96	No
LTC2381-16	16	1	250	Serial SPI	2.5V	Differential	92	No
LTC2382-16	16	1	500	Serial SPI	2.5V	Differential	92	No
LTC2383-16	16	1	1000	Serial SPI	2.5V	Differential	92	No
LTC2389-16	16	1	2500	Serial SPI, Parallel	5V	Differential, Pseudo-Differential, Single-Ended	96	Yes
LTC2389-18	18	1	2500	Serial SPI, Parallel	5V	Differential, Pseudo-Differential, Single-Ended	99.7	Yes
LTC2391-16	16	1	250	Parallel, Serial SPI	5V	Differential	93.5	Yes
LTC2392-16	16	1	500	Parallel, Serial SPI	5V	Differential	93.5	Yes
LTC2393-16	16	1	1000	Parallel, Serial SPI	5V	Differential	94	Yes
LTC1090	10	8	30	Serial SPI	5V, ±5V	Pseudo-Differential, Single-Ended		no
LTC1091	10	2	31	Serial SPI	5V	Pseudo-Differential, Single-Ended		no
LTC1092	10	1	38	Serial SPI	5V	Pseudo-Differential, Single-Ended		no
LTC1093	10	6	26	Serial SPI	5V, ±5V	Pseudo-Differential, Single-Ended		no
LTC1094	10	8	26	Serial SPI	5V, ±5V	Pseudo-Differential, Single-Ended		no
LTC1096	8	1	33	Serial SPI	5V	Pseudo-Differential, Single-Ended	43.3	no
LTC1096A	8	1	33	Serial SPI	5V	Pseudo-Differential, Single-Ended	43.3	no
LTC1096L	8	1	16.5	Serial SPI	3V	Pseudo-Differential, Single-Ended	43.3	no
LTC1098	8	2	33	Serial SPI	5V	Pseudo-Differential, Single-Ended	43.3	no
LTC1098A	8	2	33	Serial SPI	5V	Pseudo-Differential, Single-Ended	43.3	no
LTC1098L	8	2	16.5	Serial SPI	3V	Pseudo-Differential, Single-Ended	43.3	no
LTC1099	8	1	400	Parallel	5V	Single-Ended	47	no
LTC1196-1	8	1	1000	Serial SPI	3V, 5V	Single-Ended, Pseudo-Differential	47	no
LTC1196-2	8	1	800	Serial SPI	3V, 5V	Single-Ended, Pseudo-Differential	47	no
LTC1197	10	1	500	Serial SPI	5V	Single-Ended, Pseudo-Differential	60	no
LTC1197L	10	1	250	Serial SPI	3V	Single-Ended, Pseudo-Differential	58	no
LTC1198-1	8	2	750	Serial SPI	3V, 5V	Single-Ended, Pseudo-Differential	47	no
LTC1198-2	8	2	600	Serial SPI	3V, 5V	Single-Ended, Pseudo-Differential	47	no
LTC1199	10	2	450	Serial SPI	5V	Single-Ended, Pseudo-Differential	60	no
LTC1199L	10	2	210	Serial SPI	3V	Single-Ended, Pseudo-Differential	58	no
LTC1272-3	12	1	250	Parallel	5V	Single-Ended	72	yes
LTC1272-8	12	1	110	Parallel	5V	Single-Ended	72	yes
LTC1273	12	1	300	Parallel	5V	Single-Ended	70	yes
LTC1274	12	1	100	Parallel	5V, ±5V	Single-Ended	72.5	yes
LTC1275	12	1	300	Parallel	±5V	Single-Ended	70	yes
LTC1276	12	1	300	Parallel	±5V	Single-Ended	70	yes
LTC1277	12	1	100	Parallel	5V, ±5V	Single-Ended, Pseudo-Differential	72.5	yes
LTC1278-4	12	1	400	Parallel	5V, ±5V	Single-Ended	72	yes
LTC1278-5	12	1	500	Parallel	5V, ±5V	Single-Ended	72	yes
LTC1279	12	1	600	Parallel	5V, ±5V	Single-Ended	72	yes
LTC1282	12	1	140	Parallel	3V, ±3V	Single-Ended	69	yes
LTC1283	10	8	15	Serial SPI	3.3V, ±3.3V	Pseudo-Differential, Single-Ended		no
LTC1285	12	1	7.5	Serial SPI	3V	Single-Ended, Pseudo-Differential	67	no
LTC1286	12	1	12.5	Serial SPI	5V	Pseudo-Differential, Single-Ended	71	no
LTC1287	12	1	30	Serial SPI	3.3V, ±3.3V	Pseudo-Differential, Single-Ended		no
LTC1288	12	2	6.6	Serial SPI	3V	Pseudo-Differential, Single-Ended	67	no
LTC1289	12	8	25	Serial SPI	3.3V, ±3.3V	Pseudo-Differential, Single-Ended		no
LTC1290	12	8	50	Serial SPI	5V, ±5V	Pseudo-Differential, Single-Ended	73.3	no
LTC1291	12	2	54	Serial SPI	5V	Pseudo-Differential, Single-Ended		no
LTC1292	12	1	60	Serial SPI	5V	Pseudo-Differential, Single-Ended	73	no
LTC1293	12	6	46.5	Serial SPI	5V, ±5V	Pseudo-Differential, Single-Ended	72.7	no
LTC1294	12	8	46	Serial SPI	5V, ±5V	Pseudo-Differential, Single-Ended	72.7	no
LTC1296	12	8	46	Serial SPI	5V, ±5V	Pseudo-Differential, Single-Ended	72.7	no
LTC1297	12	1	50	Serial SPI	5V	Pseudo-Differential, Single-Ended	73	no
LTC1298	12	2	11.1	Serial SPI	5V	Pseudo-Differential, Single-Ended	71	no
LTC1400	12	1	400	Serial SPI	5V, ±5V	Single-Ended	72	yes
LTC1401	12	1	200	Serial SPI	3V	Single-Ended	68	yes
LTC1402	12	1	2200	Serial SPI	5V, ±5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	72.5	yes
LTC1409	12	1	800	Parallel	±5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	72.5	yes
LTC1410	12	1	1250	Parallel	±5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	71	yes
LTC1411	14	1	2500	Parallel	5V	Single-Ended, Pseudo-Differential	80	yes
LTC1412	12	1	3000	Parallel	±5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	72.5	yes
LTC1414	14	1	2200	Parallel	±5V	Single-Ended, Pseudo-Differential	78	yes
LTC1415	12	1	1250	Parallel	5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	72	yes
LTC1416	14	1	400	Parallel	±5V	Single-Ended, Pseudo-Differential	80.5	yes
LTC1418	14	1	200	Serial SPI, Parallel	5V, ±5V	Single-Ended, Pseudo-Differential	81.5	yes
LTC1603	16	1	250	Parallel	±5V	Single-Ended, Pseudo-Differential	90	yes
LTC1604A	16	1	333	Parallel	±5V	Single-Ended, Pseudo-Differential, Fully Differential	90	yes
LTC2312-12	12	1	500	Serial SPI	3V, 5V	Single-Ended	72.7	yes
LTC2312-14	14	1	500	Serial SPI	3V, 5V	Single-Ended	77	yes
LTC2313-12	12	1	2500	Serial SPI	3V, 5V	Single-Ended	72.6	yes
LTC2313-14	14	1	2500	Serial SPI	3V, 5V	Single-Ended	77	yes
LTC2321-12	12	2	2000	Serial SPI	3.3V, 5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	72.8	yes
LTC2321-14	14	2	2000	Serial SPI	3.3V, 5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	80	yes
LTC2321-16	16	2	2000	Serial SPI	3.3V, 5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	80	yes
LTC2323-12	12	2	5000	Serial SPI	3.3V, 5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	72.9	yes
LTC2323-14	14	2	5000	Serial SPI	3.3V, 5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	79	yes
LTC2323-16	16	2	5000	Serial SPI	3.3V, 5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	79	yes
LTC2326-16	16	1	250	Serial SPI	5V	Pseudo-Differential	90.4	yes
LTC2326-18	18	1	250	Serial SPI	5V	Pseudo-Differential	91	yes
LTC2327-16	16	1	500	Serial SPI	5V	Pseudo-Differential	90.4	yes
LTC2327-18	18	1	500	Serial SPI	5V	Pseudo-Differential	91	yes
LTC2328-16	16	1	1000	Serial SPI	5V	Pseudo-Differential	90.4	yes
LTC2328-18	18	1	1000	Serial SPI	5V	Pseudo-Differential	91	yes
LTC2336-18	18	1	250	Serial SPI	5V	Fully Differential	101	yes
LTC2337-18	18	1	500	Serial SPI	5V	Fully Differential	101	yes
LTC2338-18	18	1	1000	Serial SPI	5V	Fully Differential	101	yes
LTC2348-18	18	8	200	Serial SPI	5V	Differential with wide input common mode,  Pseudo-Differential	96.5	yes
LTC2360	12	1	100	Serial SPI	2.35V to 3.6V	Single-Ended	72	no
LTC2361	12	1	250	Serial SPI	2.35V to 3.6V	Single-Ended	72	no
LTC2362	12	1	500	Serial SPI	2.35V to 3.6V	Single-Ended	72	no
LTC2365	12	1	1000	Serial SPI	2.35V to 3.6V	Single-Ended	72	no
LTC2366	12	1	3000	Serial SPI	2.35V to 3.6V	Single-Ended	71	no
LTC2372-16	16	8	500	Serial SPI	5V	Pseudo-Differential, Fully Differential	96	yes
LTC2372-18	18	8	500	Serial SPI	5V	Pseudo-Differential, Fully Differential	99.8	yes
LTC2373-16	16	8	1000	Serial SPI	5V	Pseudo-Differential, Fully Differential	96	yes
LTC2373-18	18	8	1000	Serial SPI	5V	Pseudo-Differential, Fully Differential, Pseudo-Differential, Fully Differential	99.5	yes
LTC2380-24	24	1	2000	Serial SPI	2.5V	Fully Differential	100	no
LTC2368-24	24	1	1000	Serial SPI	2.5V	Pseudo-Differential, Single-Ended	98	no
LTC2387-18	18	1	15000	Serial LVDS	5V, 2.5V	Fully Differential	95.7	yes
LTC2386-18	18	1	10000	Serial LVDS	5V, 2.5V	Fully Differential	96	yes
LTC2345-18	18	8	200	Serial SPI, Serial LVDS	5V	Differential with wide input common mode, Fully Differential	91.8	yes
LTC2387-16	16	1	15000	Serial LVDS	5V, 2.5V	Fully Differential	93.9	yes
LTC2386-16	16	1	10000	Serial LVDS	5V, 2.5V	Fully Differential	93.9	yes
LTC2348-16	16	8	200	Serial SPI	5V	Differential with wide input common mode,  Pseudo-Differential	94.3	yes
LTC1855	14	8	100	Serial SPI	5V	Single-Ended, Pseudo-Differential	83	yes
LTC2335-18	18	8	1000	Serial SPI, Serial LVDS	5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	96.5	yes
LTC2335-16	16	8	1000	Serial SPI, Serial LVDS	5V	Differential with wide input common mode, Single-Ended, Pseudo-Differential, Fully Differential	94.3	yes

Click on a part number to view available products.

• 10-Bit to 14-Bit Resolution, 6ksps to 5Msps
• 16-Bit to 20-Bit Resolution, 100ksps Up to 5Msps

10-Bit to 14-Bit Resolution, 6ksps to 5Msps

		6.6ksps to 75ksps		100ksps to 210ksps		250ksps to 450ksps		500ksps to 800ksps		1Msps to 1.5Msps		2Msps to 2.8Msps		3Msps to 3.5Msps		4.5Msps to 5Msps
								2312-14				2313-14				2314-14
												1403A	1403A-1	2355-14	2356-14
				1418 P		1417	1416 P	1419 P				1414 P
										1407A	1407A-1	2321-14				2323-14
				1408-14		2351-14
				1855	1858
								2312-12				2313-12				2315-12
		2301				1400		1404	1409 P	1410 P		1402		1412 P
		1286	1285	1860L		1860		2302		1415 P		1403	1403-1	2355-12	2356-12
		2305						2306		1407	1407-1	2321-12				2323-12
		1288	1298	1861L		1861
		1594	1594L
				1408-12		2351-12
		2309	1290	1854	1857			2308
		1598	1598L	1863L	1863	1853 P				1851 P
		1092				1197L		1197
		1091		1199L		1199
		1093
		1094	1090			1852 P				1850 P

---

	3V/5V Supply μPower ADCs		5V I2C/SPI ADCs Unipolar/Bipolar Inputs		0V to 4.096V, ±2.048V Unipolar/Bipolar Inputs		±2.5V True Bipolar Inputs		0V to 5V, ±5V Unipolar/Bipolar Inputs	P = Parallel Interface
	3V/5V Supply Pin-Compatible ADCs		±10V True Bipolar Input ADCs		3V/5V Supply Pin-Compatible ADCs with Reference in TSOT-8		Simultaneous Sampling ADCs		0V to 2.5V, ±1.25V Unipolar/Bipolar Inputs

16-Bit to 20-Bit Resolution, 100ksps Up to 15Msps

		100ksps to 200ksps		250ksps to 400ksps			500ksps to 600ksps		1Msps		1.6Msps	2Msps to 5Msps		10Msps	15Msps
						2376-20		2377-20		2378-20
					2364-18	2376-18	2367-18	2377-18	2368-18	2378-18	2369-18	2389-18			2387-18
					2326-18	2336-18	2327-18	2337-18	2328-18	2338-18	2379-18
			2348-18					2372-18		2373-18
					2364-16	2376-16	2367-16	2377-16	2368-16	2378-16		2370-16	2380-16		2387-16
		1864L		1864	2326-16		2327-16		2328-16
		1605-1	1609			2391-16		2392-16		2393-16		2389-16
		1605-2	1605	1606	1603	1604	1608						2311-16
		1865L		1865								2321-16	2323-16
			2348-16
		1856	1859
		1867L	1867					2372-16		2373-16

---

Serial				Serial/Paraleel		Parallel
	Pseudo- or Fully Differential Pin-Compatible ADCs		3V/5V Supply μPower ADCs		Pseudo- or Fully Differential Pin-Compatible ADCs		±10V True Bipolar Inputs		±2.5V True Bipolar Inputs
	±10V True Bipolar Inputs		3.3V/5V Supply Flexible Input ADCs		Fully Differential Pin-Compatible ADCs		0V to 4V, ±4V Unipolar/True Bipolar Inputs
	8-Channel MUX'd Input ADCs		±10V SoftSpan Simultaneous Sampling ADCs
	High-Speed High-Resolution ADCs		Low-Power ADCs with Digital Filter
