Nearby Bluetooth Devices Scanner M5Stack Core ESP32
2023-07-31 | By M5Stack
License: General Public License Bluetooth / BLE Arduino M5Stack
* Thanks for the source code and project information provided by @ronfrtek
Story

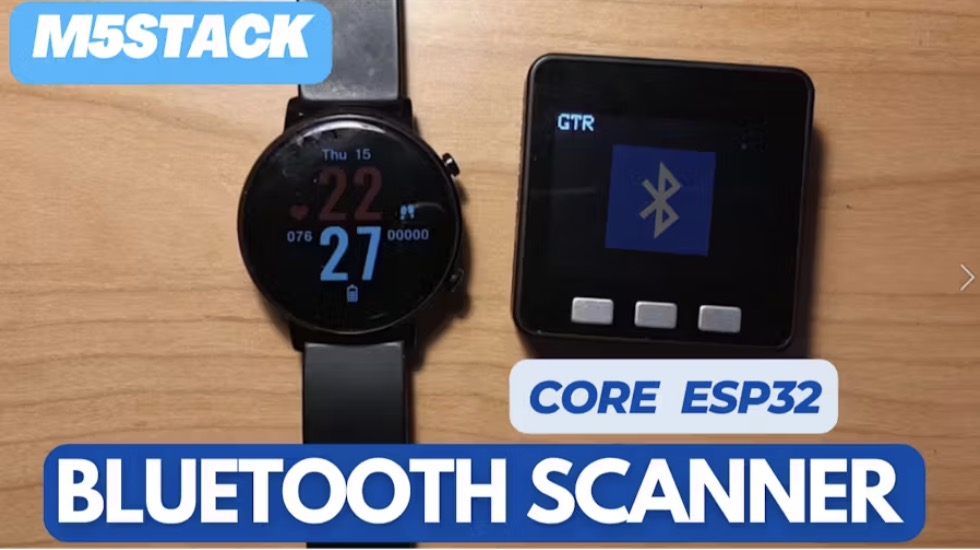

In this tutorial we will learn how to make a Bluetooth Scanner using M5Stack Core ESP32 and Visuino, to Scan & Display the Nearby Bluetooth Devices.
Watch the video!
Step 1: What You Will Need
- M5Stack Core ESP32 more info here
- Visuino program: Download Visuino
Step 2: Start Visuino, and Select the M5 Stack Core Board Type
Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "M5 Stack Core" as shown on Picture 2
Step 3: In Visuino Add & Set Components
- Add "Digital Multi Source" component

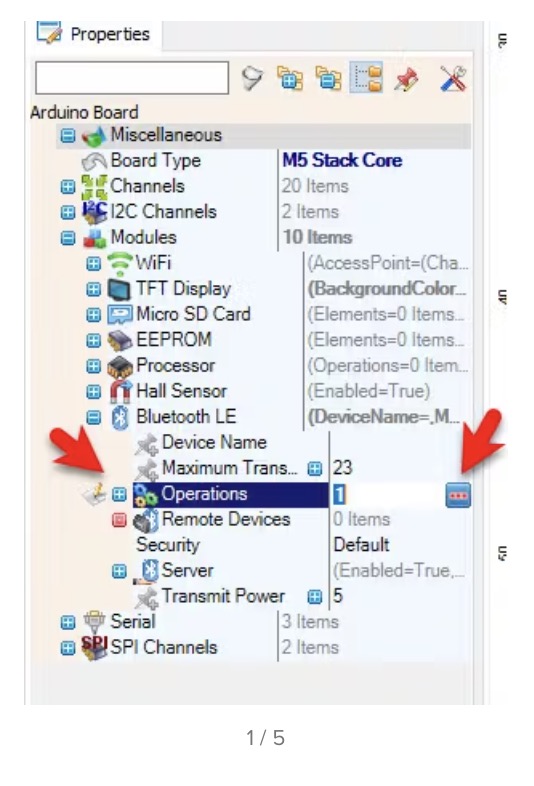

- Select "M5 Stack Core" and in the properties window expand "Modules" > "Bluetooth LE" > "Operations" and click on the 3 dots button.
- In "Operations" window drag "Search Bluetooth Devices" to the left side
- Close the "Operations" window
- Select "M5 Stack Core" and in the properties window expand "Modules" > "TFT Display" > "Elements" and click on the 3 dots button.
- In the "Elements" window drag "Fill Screen" to the left side and close the window
Step 4: In Visuino Connect Components
- Connect "M5 Stack Core" pin Out (B) to "DigitalMultiSource1" pin [In]
- Connect "DigitalMultiSource1" pin [0] to "M5 Stack Core" > "FillScreen1" pin [Clock]"
- Connect "DigitalMultiSource1" pin [1] to "M5 Stack Core" > "Search Devices" pin [Scan]"
- Connect "M5 Stack Core" > pin "Device Name" to "M5 Stack Core" >"TFT Display" pin [In]
Step 5: Generate, Compile, and Upload the Code
In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.
Step 6: PlayIf you power the M5 Stack Core module and click on the B button, the module will start scanning for Bluetooth devices. After the scanning is finished you will be able to se on the display the names of the Bluetooth devices nearby.
Congratulations! You have completed your project with Visuino: https://www.visuino.eu
