4 色环电阻器色码计算器
5 色环电阻器色码计算器
6 色环电阻器色码计算器

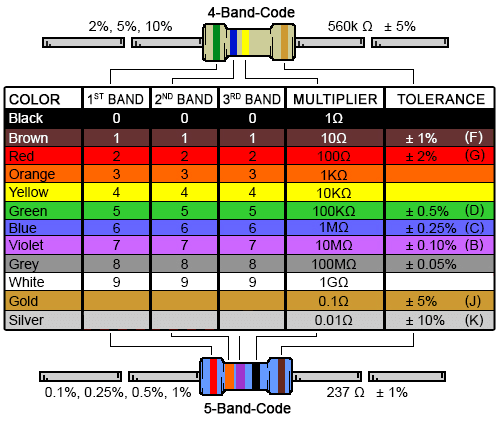

此工具用于解码轴向引线式色环电阻器的规格信息。 选择色环数及其颜色,就可以确定电阻器的阻值和公差,或查看 DigiKey 提供的所有电阻器。
色环数
电阻器参数
第 1 色环-
选择颜色
-
-
黑色0
-
棕色1
-
红色2
-
橙色3
-
黄色4
-
绿色5
-
蓝色6
-
紫色7
-
灰色8
-
白色9
-
-
选择颜色
-
-
黑色0
-
棕色1
-
红色2
-
橙色3
-
黄色4
-
绿色5
-
蓝色6
-
紫色7
-
灰色8
-
白色9
-
-
选择颜色
-
-
黑色0
-
棕色1
-
红色2
-
橙色3
-
黄色4
-
绿色5
-
蓝色6
-
紫色7
-
灰色8
-
白色9
-
-
选择颜色
-
-
黑色×1 Ω
-
棕色×10 Ω
-
红色×100 Ω
-
橙色×1 kΩ
-
黄色×10 kΩ
-
绿色×100 kΩ
-
蓝色×1 MΩ
-
紫色×10 MΩ
-
灰色×100 MΩ
-
白色×1 GΩ
-
金色×0.1 Ω
-
银色×0.01 Ω
-
-
选择颜色
-
-
棕色± 1%
-
红色± 2%
-
绿色± 0.5%
-
蓝色± 0.25%
-
紫色± 0.1%
-
灰色± 0.05%
-
金色± 5%
-
银色± 10%
-
-
选择颜色
-
-
棕色100 ppm
-
红色50 ppm
-
橙色15 ppm
-
黄色25 ppm
-
蓝色10 ppm
-
紫色5 ppm
-
Resistance value
The entered value does not exist in *N
band resistors
输出
-
-
-
-
-
-
电阻值:
电阻值:
个结果
在 DigiKey 搜索结果中查看
显示
/
