STM32® 32-bit MCU Family

Leading Supplier of ARM® Cortex®-M Microcontrollers

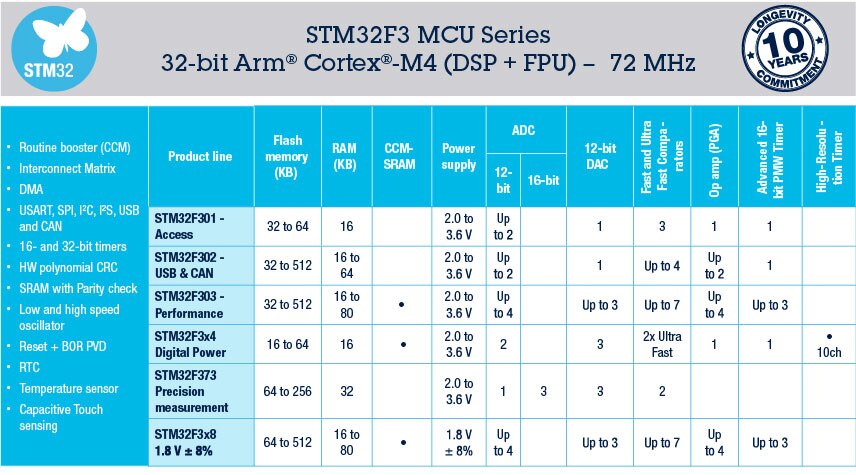

STM32F3 Series of Mixed-Signal MCUs with DSP and FPU Instructions

STMicroelectronics' STM32F3 series combines a 32-bit ARM® Cortex®-M4 core (with FPU and DSP instructions) running at 72 MHz with a high number of integrated peripherals including:

  • Analog: fast 12-bit ADC at 5 Msymb/s (0.2 μs), precise 16-bit sigma delta ADC, fast and ultra-fast comparators (25 ns), op amp with PGA (4 gains, 1% accuracy) and 12-bit DACs
  • Up to 18 timers with 16- and 32-bit resolution running up to 144 MHz
  • Audio: simplex or full-duplex I²S interfaces
  • Large set of communication interfaces including USART (9 Mbit/s), SPI/I²S (18 Mbit/s), I²C (1 MHz in Fast+ mode), CAN (1 Mbit/s), and full-speed USB
  • Cyclic redundancy check (CRC)
  • Capacitive touch sensing (24 keys)
  • High-resolution timer (217 ps) with complex waveform builder and multi-event handler

Package options are LQPF48/64/100, UFBGA100, UQFN32 and WLCSP66/49.
Temperature range from -40 to 85 °C or from -40 to 105 °C

STM32F3 Series of mixed-signal MCUs with DSP and FPU instructions

STM32 F3

图片制造商零件编号描述DigiKey 可编程核心处理器内核规格可供货数量价格查看详情
IC MCU 32BIT 64KB FLASH 32LQFPSTM32F303K8T6IC MCU 32BIT 64KB FLASH 32LQFP未验证ARM® Cortex®-M432 位单核1276 - 立即发货$46.07查看详情
IC MCU 32BIT 128KB FLASH 48LQFPSTM32F302CBT6IC MCU 32BIT 128KB FLASH 48LQFP未验证ARM® Cortex®-M432 位单核1645 - 立即发货$48.27查看详情
IC MCU 32BIT 64KB FLASH 48LQFPSTM32F334C8T6IC MCU 32BIT 64KB FLASH 48LQFP未验证ARM® Cortex®-M432 位单核18792 - 立即发货$41.27查看详情
IC MCU 32BIT 256KB FLASH 48LQFPSTM32F373CCT6IC MCU 32BIT 256KB FLASH 48LQFP未验证ARM® Cortex®-M432 位单核3382 - 立即发货$63.49查看详情
IC MCU 32BIT 256KB FLASH 100LQFPSTM32F302VCT6IC MCU 32BIT 256KB FLASH 100LQFP已验证ARM® Cortex®-M432 位单核3307 - 立即发货$67.16查看详情
IC MCU 32BIT 256KB FLASH 100LQFPSTM32F303VCT6IC MCU 32BIT 256KB FLASH 100LQFP已验证ARM® Cortex®-M432 位单核1374 - 立即发货$73.50查看详情
IC MCU 32BIT 512KB FLASH 64LQFPSTM32F303RET6IC MCU 32BIT 512KB FLASH 64LQFP未验证ARM® Cortex®-M432 位单核2421 - 立即发货$80.10查看详情
IC MCU 32BIT 512KB FLASH 100LQFPSTM32F303VET6IC MCU 32BIT 512KB FLASH 100LQFP已验证ARM® Cortex®-M432 位单核1482 - 立即发货$88.97查看详情
IC MCU 32BIT 512KB FLASH 144LQFPSTM32F303ZET6IC MCU 32BIT 512KB FLASH 144LQFP未验证ARM® Cortex®-M432 位单核141 - 立即发货$105.25查看详情
IC MCU 32BIT 128KB FLASH 100LQFPSTM32F302VBT6TRIC MCU 32BIT 128KB FLASH 100LQFP未验证ARM® Cortex®-M432 位单核1496 - 立即发货$59.83查看详情
