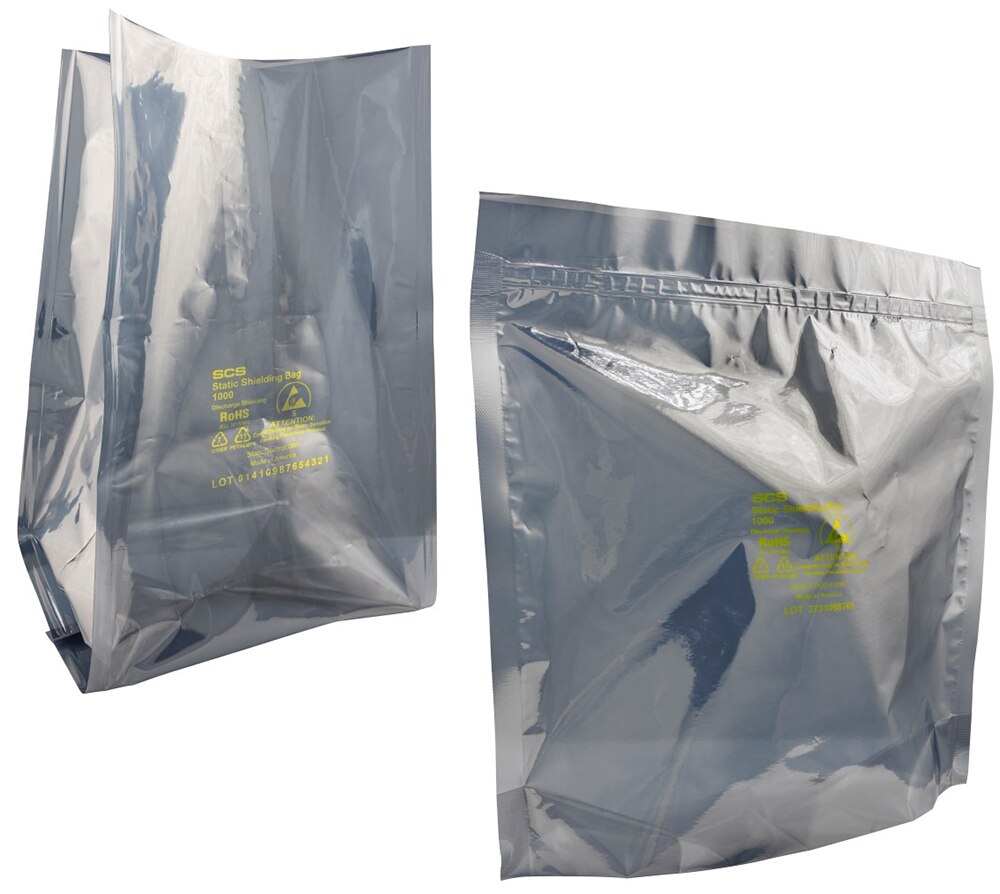

1000 Series Static Shielding Side Gusset Bags
SCS' heat sealable static shielding bags are printed with an ESD protective symbol and a lot code for traceability
SCS' 1000 series transparent metal-in static shielding bags are designed to provide a static-safe environment for electrostatic discharge (ESD) sensitive electronic devices. Bags are printed with an ESD protective symbol and a lot code for traceability. The bags are heat-sealable. The 1000 series static shielding bags are manufactured from polyester, metal, and polyethylene laminate. In concert with the metal layer, the polyester dielectric provides discharge shielding. The exterior being static dissipative allows electrostatic charges to be removed when grounded.
Features
- Side gusset with sealed bottom
- Expand to fit large, bulky items
- Ideal for use as liners for cartons or bins
- Protects ESD-sensitive contents from electrostatic fields and ESD
- <20 nJ discharge shielding energy limit test per ANSI/ESD STM11.31
- Meets ANSI/ESD S20.20 and ANSI/ESD S541 requirements for ESD shielding packaging inside and outside an ESD-protected area (EPA)
- Meets the requirements of ANSI/ESD S541 for quality control purposes
- Metal-in film laminate 0.0028” thick (2.8 mil)
- Dissipative inner and outer surfaces Rs 1 x 104 to <1 x 1011 ohms per ANSI/ESD STM11.11 and static control bag ANSI/ESD S11.4 Level 3
- Allows bag to be used throughout an ESD-protected area and grounded when placed on a grounded surface or handled by a grounded operator
- Printed with ESD protective symbol and lot code information
- Lead-free RoHS 2, REACH, and conflict minerals compliant
1000 Series Static Shielding Side Gusset Bags
| 图片 | 制造商零件编号 | 描述 | 长度 - 内部 | 宽度 - 内部 | 可供货数量 | 价格 | 查看详情 | |
|---|---|---|---|---|---|---|---|---|
 | SZ1009.59.53 | STAND-UP BOTTOM GUSSET ZIP,1000 | 9.5"（241.3mm） | 9.5"（241.3mm） | 2 - 立即发货 | $562.94 | 查看详情 | |
 | SG1007146 | SIDE GUSSET, 1000 SERIES BAG, 7 | 14"（355.6mm） | 7"（177.8mm） | 2 - 立即发货 | $837.79 | 查看详情 | |
| SG10015249 | SIDE GUSSET, 1000 SERIES BAG, 15 | 24"（609.6mm） | 15"（381mm） | 2 - 立即发货 | $1,875.35 | 查看详情 | |
| SG100203610 | SIDE GUSSET, 1000 SERIES BAG, 20 | 36"（914.4mm） | 20"（508mm） | 2 - 立即发货 | $3,044.58 | 查看详情 | |
 | SU100672 | STAND-UP BOTTOM GUSSET, 1000 SER | 7"（177.8mm） | 6"（152.4mm） | 2 - 立即发货 | $351.28 | 查看详情 | |
| SU1008.5183 | STAND-UP BOTTOM GUSSET,1000 SERI | 18"（457.2mm） | 8.5"（215.9mm） | 1 - 立即发货 | $562.67 | 查看详情 |
