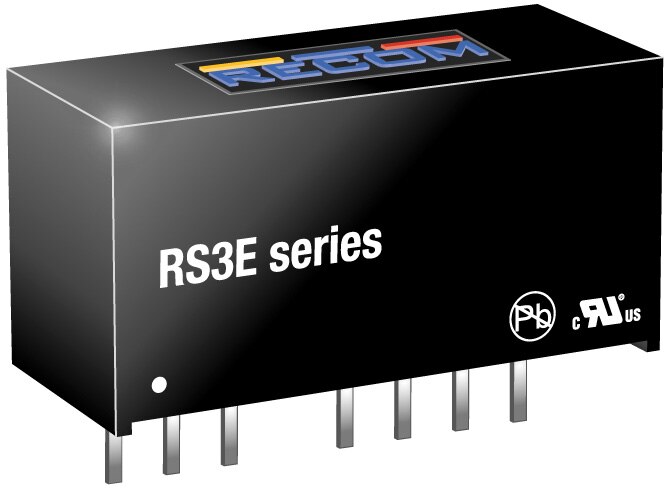

RS3E Series DC/DC Converter
RECOM's economical 3 W DC/DC converter with 2:1 wide input range
RECOM's RS3E energy efficient series provides 3 kVDC/1 minute isolation in a SIP8 package with an operating temperature range of -40°C up to +70°C. It offers wide input voltage ranges, remote ON/OFF controls, and is internationally certified for 62368-1. It is an ideal solution for high-density power supply and industrial applications.

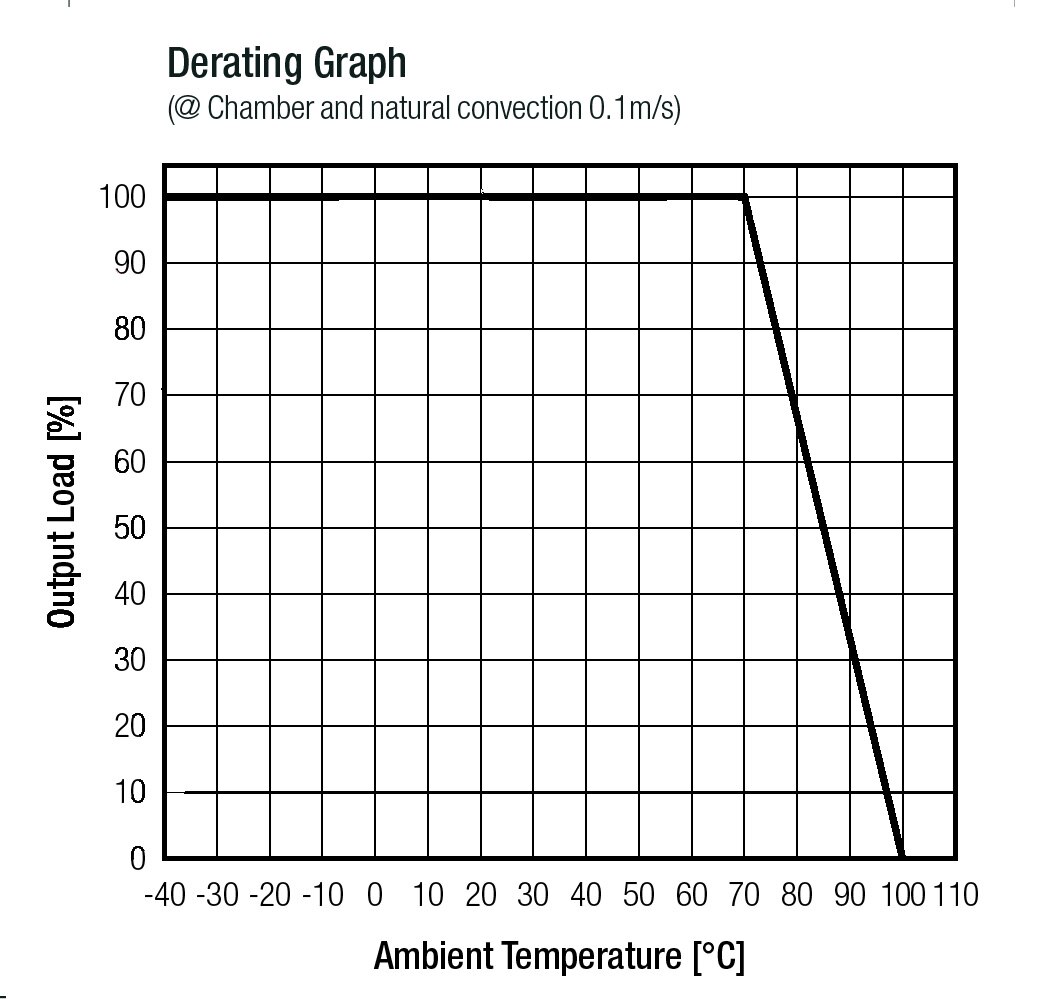

Derating Graph

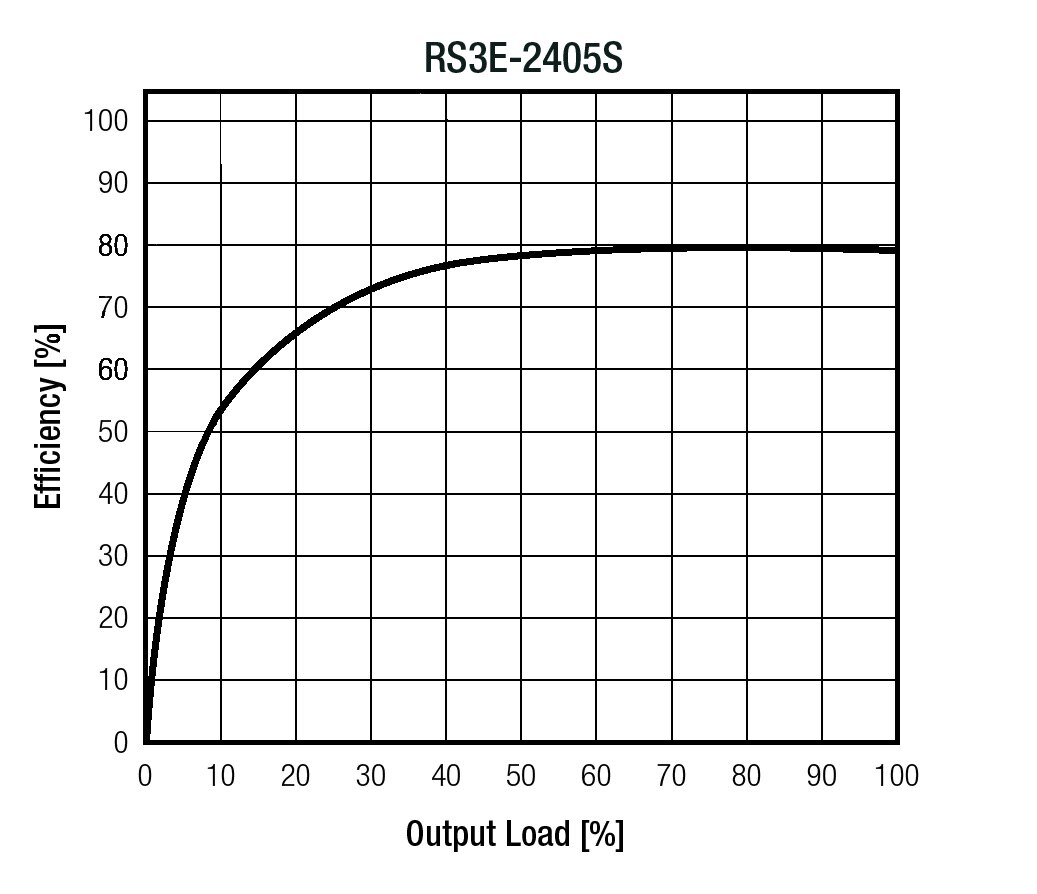

Efficiency Graph
Features
- Economical
- SIP8 package
- 2:1 wide input range
- 3 kVDC/1 min isolation
- IEC/EN/UL/CSA/CAN 62368-1 certified
- ON/OFF control
Applications
- Industrial
- IIoT
- High power density supply
- Battery-powered equipment
- Robotics
RS3E Series DC/DC Converter
| 图片 | 制造商零件编号 | 描述 | 电压 - 输入（最小值） | 电压 - 输入（最大值） | 电压 - 输出 1 | 可供货数量 | 价格 | 查看详情 | |
|---|---|---|---|---|---|---|---|---|---|
 |  | RS3E-2412S/H3 | DC DC CONVERTER 12V 3W | 18V | 36V | 12V | 47 - 立即发货 748 - 厂方库存 | $73.50 | 查看详情 |
| | RS3E-0505S/H3 | DC DC CONVERTER 5V 3W | 4.5V | 9V | 5V | 38 - 立即发货 528 - 厂方库存 | $79.37 | 查看详情 |
| | RS3E-2405S/H3 | DC DC CONVERTER 5V 3W | 18V | 36V | 5V | 60 - 立即发货 374 - 厂方库存 | $73.50 | 查看详情 |
| | RS3E-1205S/H3 | DC DC CONVERTER 5V 3W | 9V | 18V | 5V | 430 - 立即发货 616 - 厂方库存 | $73.42 | 查看详情 |
| | RS3E-2415S/H3 | DC DC CONVERTER 15V 3W | 18V | 36V | 15V | 88 - 立即发货 | $73.50 | 查看详情 |
| | RS3E-243.3S/H3 | DC DC CONVERTER 3.3V 2W | 18V | 36V | 3.3V | 11 - 立即发货 660 - 厂方库存 | $73.50 | 查看详情 |
发布日期： 2021-06-22
