USB-C Solutions from onsemi

USB-C PD Source Controllers

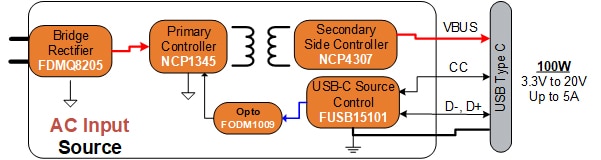

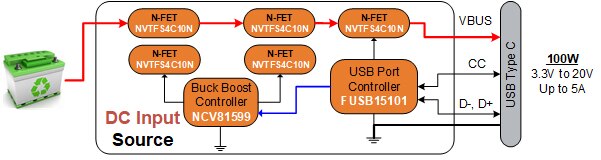

The FUSB15101 Enables a Fully Autonomous & Compliant Rev 2.0 Type-C and Rev 3.0 Power Delivery with PPS (Programmable Power Supplies) Solution for DC-DC and AC-DC Power Sources Delivering Customizable Power Profiles up to 100W (5V/20A).

USB-C PD Port Controllers

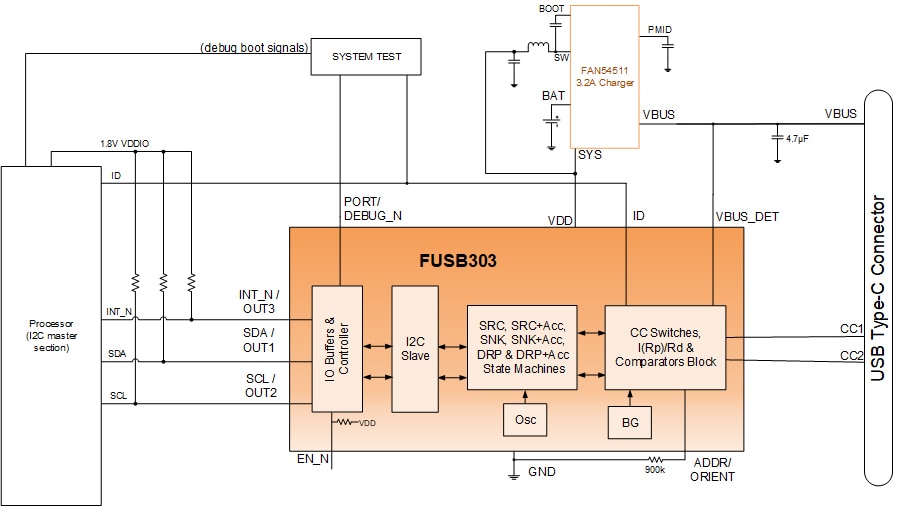

• FUSB303/B: Autonomous USB Type-C Port Controller
• FUSB302B/T/V: Programmable USB Type-C PD Port Controller

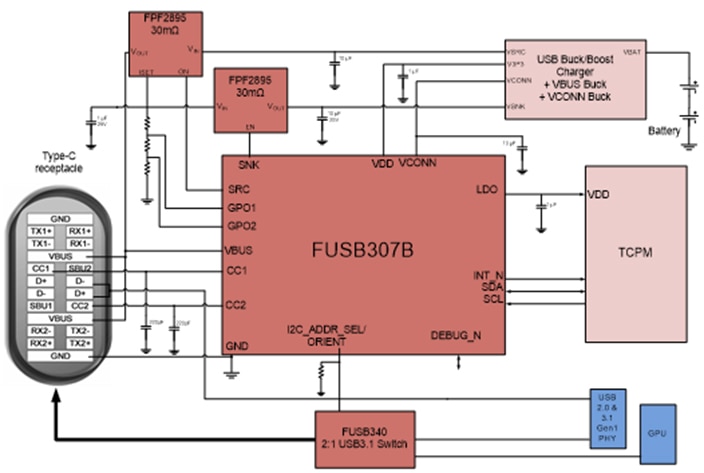

• FUSB307B/V: Programmable USB Type-C PD Port Controller w/ 2 programmable GPIOs

USB-C Protection and Cable Marker

• FUSB252 - Type-C CC with D+\D- Port Protection Switch

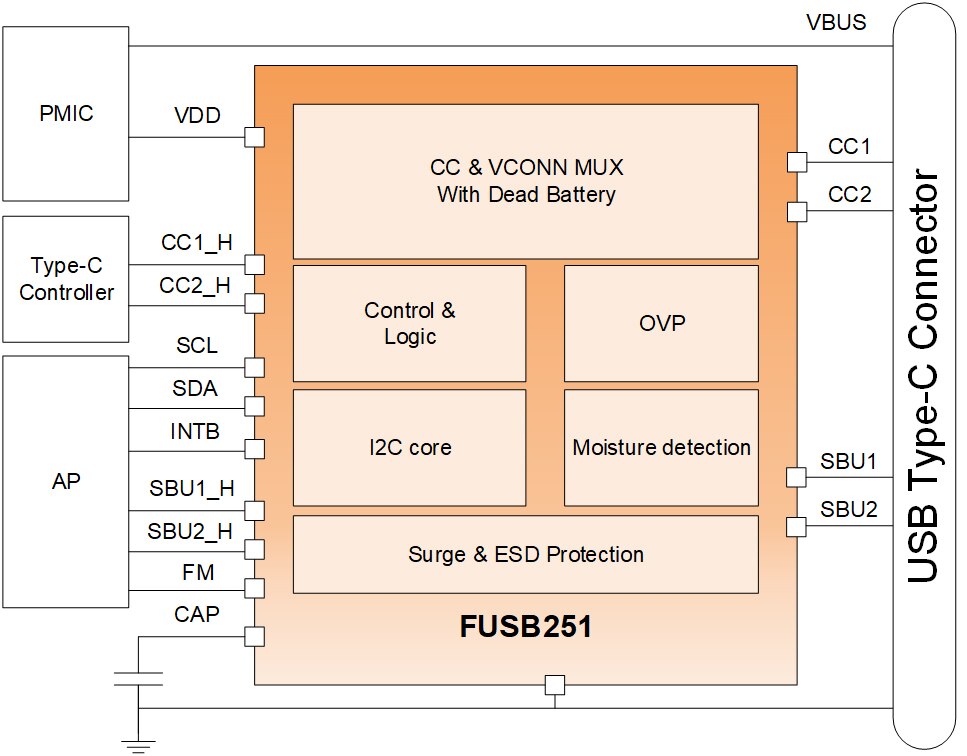

• FUSB251 - CC/SBU Protection with Integrated TVS

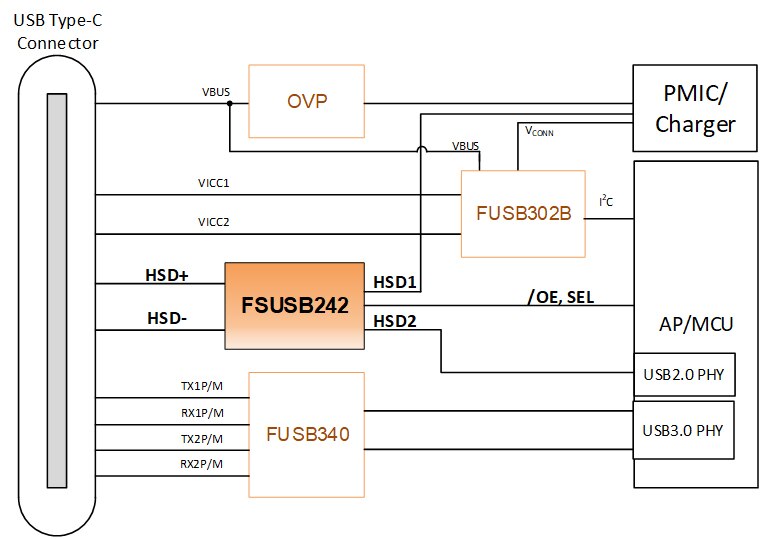

• FSUSB242 - USB Protection Switch, HSD+/HSD-

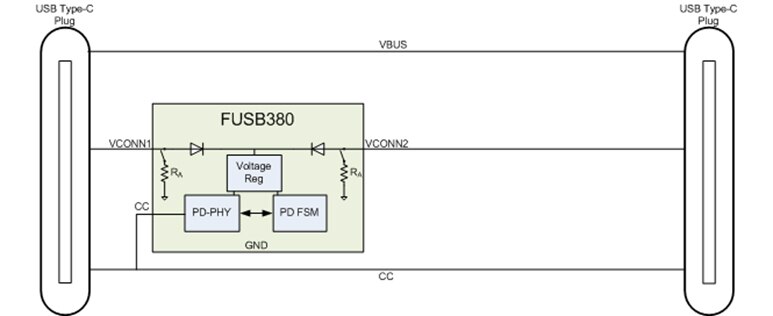

• FUSB380C - Autonomous USB Type-C Cable Marker

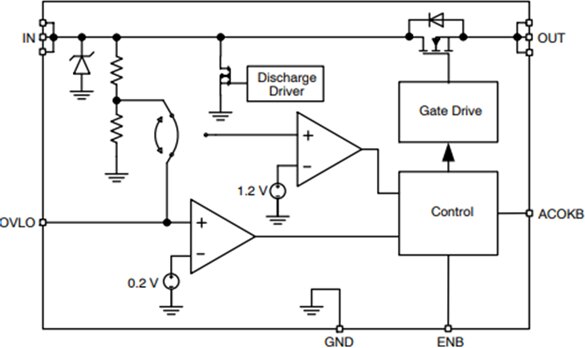

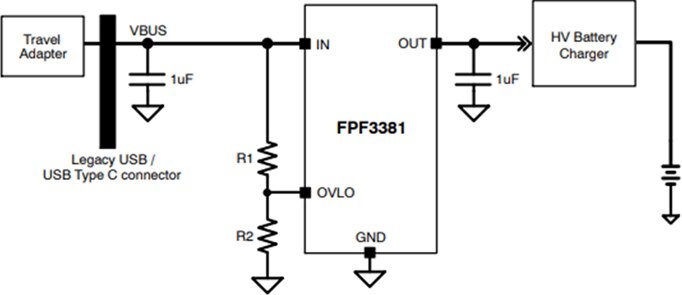

USB-C data / Load Switches

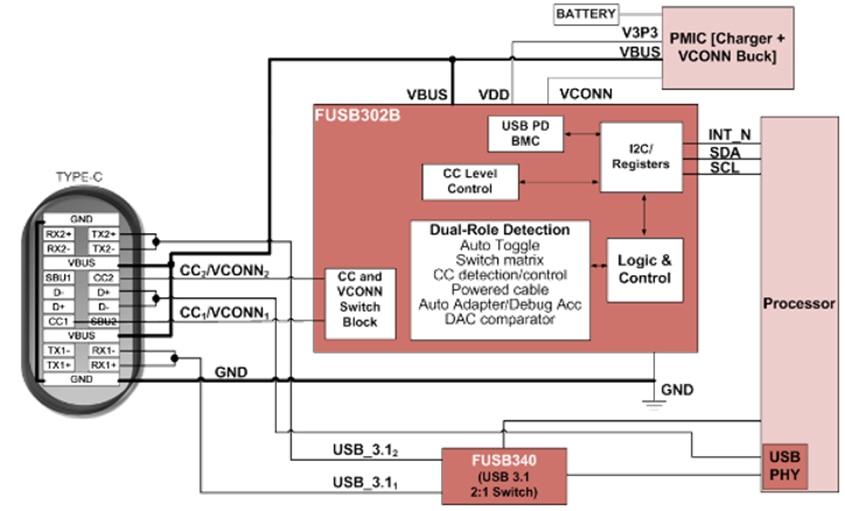

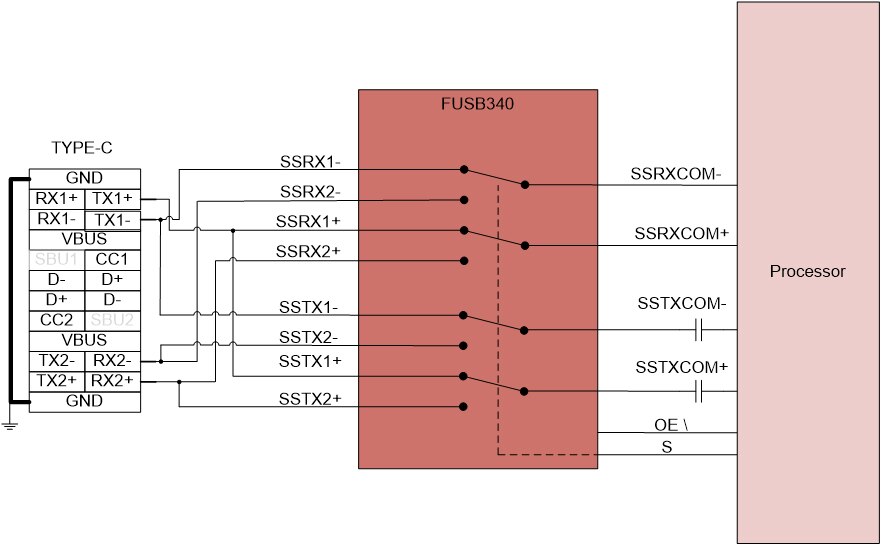

• FUSB340 - 10Gbps USB3.1 SuperSpeed Switch
  • Small discrete solution for the required Type-C USB3.1 connector reversibility for phones, tablets, laptops.
• FSA2275/5A/6 - DPDT (0.5Ω) HiFi Audio Switch w/ Click and Pop Suppression
• FSA1153 - HS 3:1 USB2.0/AUDIO/AUX Type-C Analog Switch with Protection
• FSA4476 - USB Type-C analog switch with protection

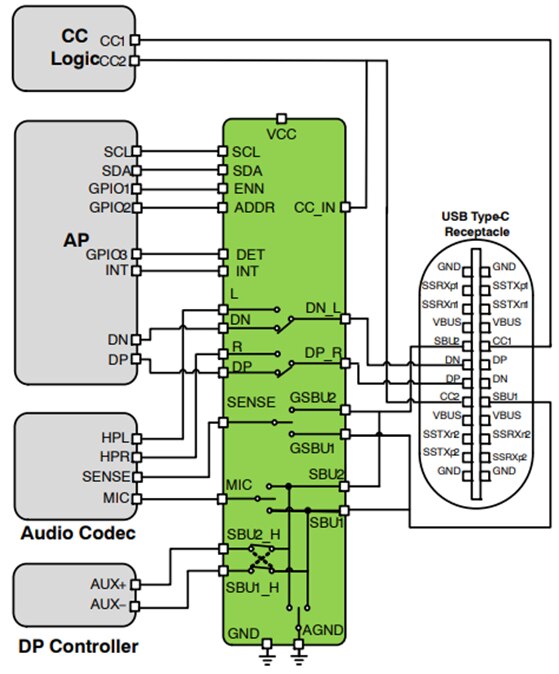

• FSA4480 - USB Type-C analog switch with protection
• FSA4485 - USB Type-C analog switch with protection

USB-C Gen1 / Gen2 Re-drivers

USB 3.1, GEN1 operates at 5Gbps, while Gen2 operates at 10Gbps.

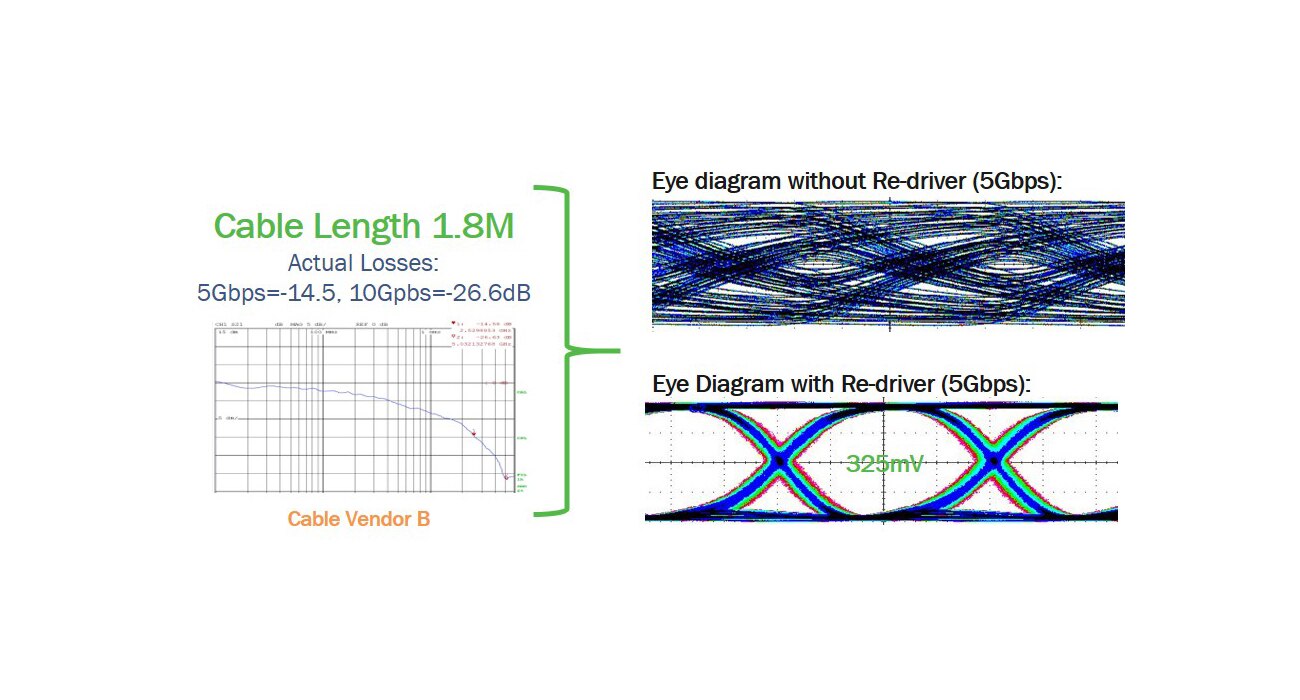

When transmitting at high speed data rates like 5Gbps and 10Gbps, FR4 and cables act like low pass filters attenuating (loss) the signal integrity or “eye diagram” of the data stream, to the point where a receiver begins dropping bits resulting in high bit error rates. Re-drivers provide equalization gain to compensate for this attenuation, or loss.

Re-drivers enable longer FR4 trace lengths and, or longer cable lengths with USB 3.1 Gen 1 or Gen 2.
