The Power of Choice

Beginner or Expert, Bluetooth® Solutions for All

Adding Bluetooth Low Energy (LE) to your application can enhance your product’s capabilities and improve user experience. Unfortunately, working with wireless technologies can be complex, costly and time-consuming. If Bluetooth products were easier to use, you would feel confident about adding them to your application.

Our approach to wireless is simple—we remove as many barriers as possible so that you can focus on your design. This includes offering a robust selection of Bluetooth products and the supporting tools that help you move seamlessly from concept to prototype.

Use the tabs to learn more about our multi-protocol wireless MCUs or easy-to-use plug-and-play Bluetooth modules.

  • PIC32CX-BZ and WBZ Family
  • Plug-and-Play Bluetooth Modules

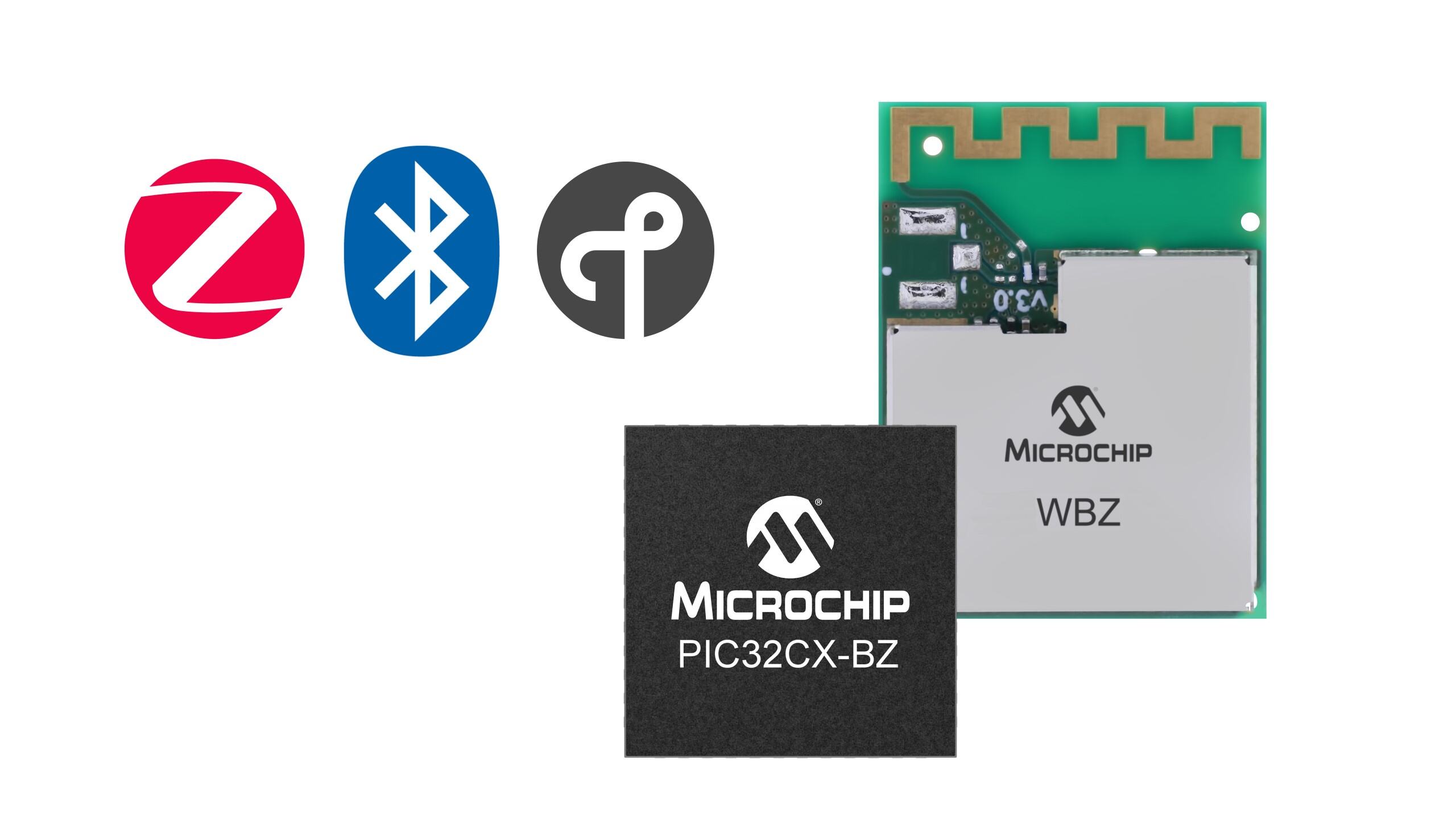

PIC32CX-BZ and WBZ Wireless Microcontroller Family

Simple, Secure and Robust Arm® Cortex®-Based Multi-Protocol MCUs

Designed from the ground up to enable you to go to market quickly, the PIC332CX-BZ and WBZ family are general purpose, multi-protocol wireless MCUs. They are powered by an Arm Cortex-M4F processor supporting a rich set of peripherals and multiple wireless protocols with hardware arbitration for seamless operation. With their high temperature tolerance, stable RF performance and functional safety readiness, these robust MCUs are built to thrive in difficult conditions.

Key Features

  • 64 MHz Arm Cortex-M4F processor
  • Integrated wireless including:
    • Bluetooth® Low Energy (LE) 5.2
    • Zigbee® 3.0
    • Thread 1.3.0
    • Proprietary and other IEEE® 802.15.4 protocols including MiWi™
  • Up to 1 MB flash and 128 KB RAM
  • A rich set of peripherals including ADC, DAC and touch inputs
  • Advanced on-board security engine (with TRNG, SHA and ECC) and secure boot
  • Automotive AEC-Q100 Grade 1-qualified (125°C) SoCs and high-temperature module reference design
  • Functional safety-ready (automotive ISO 26262 ASIL B and industrial IEC 61508 SIL 2 compliance)
  • Globally pre-certified modules that shorten time to market by eliminating RF design and reducing regulatory requirements

Product Selection

WBZ Wireless Modules

PIC32CX-BZ Wireless SoCs

Development Tools

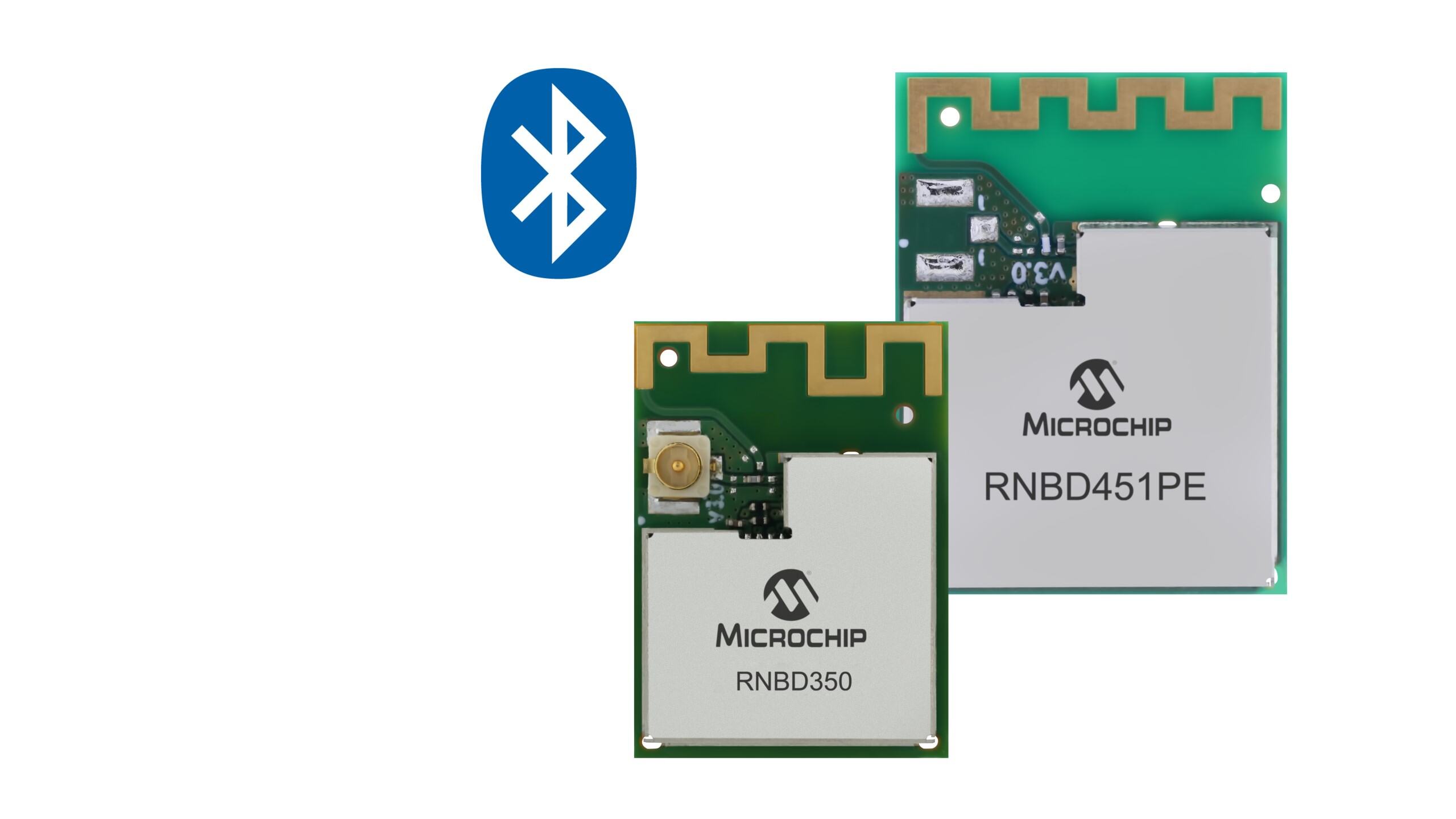

RNBD Plug-and-Play Bluetooth® Modules

Simplify Wireless Development

Wireless product design can be complex and challenging. Navigating the technical considerations—protocols, RF performance and certifications—can slow down development and put projects at risk. Though wireless development is complex, it doesn’t have to be difficult.

Plug-and-play modules remove the barriers typically associated with building wireless products reducing your development time, costs and most importantly, risk. These modules are regulatory certified and pre-programmed so there is no wireless software development needed–just send commands from any MCU over UART.

If you’re ready to simplify wireless design, plug-and-play modules are a good choice.

Key Features

  • Communicate with any microcontroller (MCU) using ASCII or HCI commands sent over UART
  • Host controller interface (HCI) mode for compatibility with hosts running Linux®
  • Globally pre-certified modules, pre-programmed for Bluetooth® Low Energy (LE) 5.2
  • Up to +12 dBm Transmit Power
  • Up to 8 GPIOs
  • 12-bit ADC for processing sensor data
  • 2M PHY for high throughput
  • Coded PHY for long range
  • Connect with up to 6 Bluetooth devices simultaneously (multi-link and multi-role)
  • Supports six public and four private GATT services
  • Packed Traffic Arbitration (PTA) for Wi-Fi coexistence
  • Secure OTA Profile with client and server role

Product Selection

RNBD Modules

Development Tools

WBZ Wireless Modules

图片制造商零件编号描述协议功率 - 输出存储容量工作温度可供货数量查看详情
BLUETOOTH LOW ENERGY/802.15.4 COWBZ350PE-IBLUETOOTH LOW ENERGY/802.15.4 CO蓝牙 v5.2，Zigbee®11dBm512kB 闪存，96kB SRAM-40°C ~ 85°C316 - 立即发货查看详情
RF TXRX MOD 802.15.4 BT TH SMDWBZ351PE-IRF TXRX MOD 802.15.4 BT TH SMD蓝牙 v5.2，Zigbee®11dBm512kB 闪存，96kB SRAM-40°C ~ 85°C94 - 立即发货查看详情
RF TXRX MOD 802.15.4 BTU.FL SMDWBZ351UE-IRF TXRX MOD 802.15.4 BTU.FL SMD蓝牙 v5.2，Zigbee®11dBm512kB 闪存，96kB SRAM-40°C ~ 85°C144 - 立即发货查看详情
RF TXRX MOD 802.15.4 BT TH SMDWBZ450PE-IRF TXRX MOD 802.15.4 BT TH SMD蓝牙 v5.2，Zigbee®5dBm1MB 闪存，128kB SRAM-40°C ~ 85°C168 - 立即发货查看详情
RF TXRX MOD 802.15.4 BTU.FL SMDWBZ450UE-IRF TXRX MOD 802.15.4 BTU.FL SMD蓝牙 v5.2，Zigbee®5dBm1MB 闪存，128kB SRAM-40°C ~ 85°C166 - 立即发货查看详情
BLUETOOTH LE / ZIGBEE COMBO MODUWBZ350UE-IBLUETOOTH LE / ZIGBEE COMBO MODU802.15.4，蓝牙2MbpsPIC32CX5109BZ31032表面贴装型168 - 立即发货查看详情
RF TXRX MOD 802.15.4 BT TH SMDWBZ451PE-IRF TXRX MOD 802.15.4 BT TH SMD802.15.4，蓝牙2MbpsPIC32CX1012BZ25048表面贴装型1617 - 立即发货查看详情
RF TXRX MOD 802.15.4 BTU.FL SMDWBZ451UE-IRF TXRX MOD 802.15.4 BTU.FL SMD802.15.4，蓝牙2MbpsPIC32CX1012BZ25048表面贴装型370 - 立即发货查看详情

PIC32CX-BZ Wireless SoCs

图片制造商零件编号描述类型协议功率 - 输出存储容量工作温度可供货数量查看详情
IC RF TXRX+MCU 802.15.4 48VQFNPIC32CX5109BZ31048-V/ZWXIC RF TXRX+MCU 802.15.4 48VQFNTxRx + MCU蓝牙 v5.2，Zigbee®11dBm512kB 闪存，96kB SRAM-40°C ~ 105°C490 - 立即发货查看详情
IC RF TXRX+MCU 802.15.4 32VQFNPIC32CX5109BZ31032-V/RTBIC RF TXRX+MCU 802.15.4 32VQFNTxRx + MCU蓝牙 v5.2，Zigbee®11dBm512kB 闪存，96kB SRAM-40°C ~ 105°C0 - 立即发货查看详情
IC RF TXRX+MCU 802.15.4 32VQFNPIC32CX1012BZ24032-E/S8BIC RF TXRX+MCU 802.15.4 32VQFNTxRx + MCU蓝牙 v5.2，Zigbee®5dBm1MB 闪存，128kB SRAM-40°C ~ 125°C0 - 立即发货查看详情
IC RF TXRX+MCU 802.15.4 32VQFNPIC32CX1012BZ24032-I/S8BIC RF TXRX+MCU 802.15.4 32VQFNTxRx + MCU蓝牙 v5.2，Zigbee®5dBm1MB 闪存，128kB SRAM-40°C ~ 85°C0 - 立即发货查看详情
IC RF TXRX+MCU 802.15.4 48VQFNPIC32CX1012BZ25048-I/MYXIC RF TXRX+MCU 802.15.4 48VQFNTxRx + MCU蓝牙 v5.2，Zigbee®12dBm1MB 闪存，128kB RAM-40°C ~ 85°C（TA）416 - 立即发货查看详情
IC RF TXRX+MCU 802.15.4 48VQFNPIC32CX1012BZ25048-E/MYXIC RF TXRX+MCU 802.15.4 48VQFNTxRx + MCU蓝牙 v5.2，Zigbee®12dBm1MB 闪存，128kB RAM-40°C ~ 125°C（TA）386 - 立即发货查看详情

Development Tools

图片制造商零件编号描述配套使用/相关产品可供货数量查看详情
WBZ351 CURIOSITY BOARDEV19J06AWBZ351 CURIOSITY BOARDWBZ351PE43 - 立即发货查看详情
WBZ450 CURIOSITY BOARDEV22L65AWBZ450 CURIOSITY BOARDSAME70，WBZ450PE23 - 立即发货查看详情
WBZ451 CURIOSITY BOARDEV96B94AWBZ451 CURIOSITY BOARDPIC32CX-BZ2，WBZ45142 - 立即发货查看详情

RNBD Modules

图片制造商零件编号描述协议功率 - 输出天线类型可供货数量查看详情
BLUETOOTH LE 5.2 RN MODULE, U.FLRNBD350UE-I100BLUETOOTH LE 5.2 RN MODULE, U.FL蓝牙 v5.211dBm不含天线，U.FL305 - 立即发货查看详情
RF TXRX MOD BT PCB TH SMDRNBD451PE-I110RF TXRX MOD BT PCB TH SMD蓝牙 v5.212dBmPCB 印制线299 - 立即发货查看详情
BLUETOOTH LE 5.2 RN MODULE, PCBRNBD350PE-I100BLUETOOTH LE 5.2 RN MODULE, PCB蓝牙 v5.211dBmPCB 印制线158 - 立即发货查看详情

RNBD Development Tools

图片制造商零件编号描述平台功能可供货数量查看详情
RNBD350 ADD-ON BOARDEV65D15ARNBD350 ADD-ON BOARDmikroBUS™ Click™蓝牙低功耗（BLE）7 - 立即发货查看详情
RNBD451 ADD ON BOARDEV25F14ARNBD451 ADD ON BOARDmikroBUS™ Click™蓝牙低功耗（BLE）23 - 立即发货查看详情
