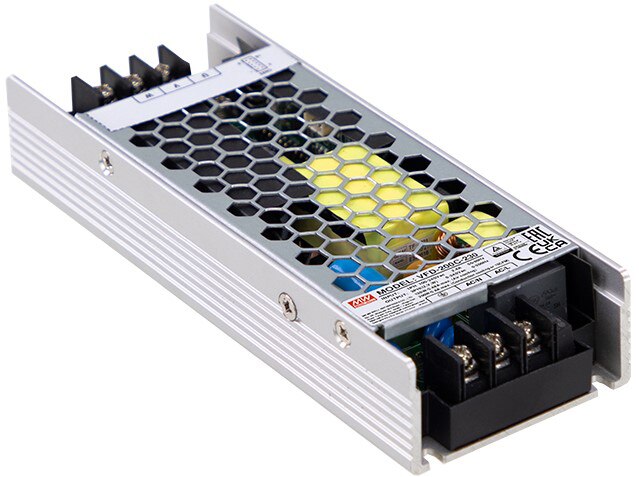

VFD Series Motor Controller and Driver
MEAN WELL VFD series motor controller and driver provides the robust performance required for a wide range of motor-driven systems
MEAN WELL VFD series motor controller and driver stands out with its fanless design, ensuring silent operation while achieving an impressive efficiency of up to 93%. This controller can deliver 200% peak current and provides the robust performance required for a wide range of motor-driven systems. Each unit is equipped with comprehensive protection functions and fully complies with international standards, including IEC/EN61800-5-1 for safety and IEC/EN61800-3 for electromagnetic compatibility.
Features
- 90 VAC to 264 VAC input, built-in PFC
- Power stage, 3-phase switches with sensors in one unit for external control (control board sold separately)
- High peak current up to 200% and 5 seconds
- Fanless design for silent operation and long lifetime
- Protections: Short circuit, overcurrent (OCP)
- Internal sensors feed out for control: Current sensor, motor torque control DC bus voltage sensor, overvoltage protection (OVP)/undervoltage protection (UVP) temperature sensor, and overtemperature protection (OTP)
- -30°C to +60°C wide operating temperature
- Suitable for 3-phase motor drive (e.g., BLDC, induction motor, SynRM)
- Fans and AC systems
- Smoke extraction equipment
- Water pumps
- AGVs
- Power tools
- Automatic doors
- Mechanical equipment
- Conveyors
- Medical devices
- Fitness equipment
VFD Series Motor Controller and Driver
图片 | 制造商零件编号 | 描述 | 可供货数量 | 价格 | 查看详情 | |
---|---|---|---|---|---|---|
VFD-200C-230 | 230VAC INPUT / OUTPUT UVW 0~240 | 5 - 立即发货 | $391.76 | 查看详情 | ||
VFD-350C-230 | 230VAC INPUT / OUTPUT UVW 0~240 | 2 - 立即发货 | $445.26 | 查看详情 | ||
VFD-750C-230 | 230VAC INPUT / OUTPUT UVW 0~240 | 3 - 立即发货 | $797.09 | 查看详情 | ||
VFD-250P-230 | 230VAC INPUT / OUTPUT UVW 0~240 | 1 - 立即发货 | $421.76 | 查看详情 | ||
VFD-350P-230 | 230VAC INPUT / OUTPUT UVW 0~240 | 1 - 立即发货 | $430.01 | 查看详情 | ||
VFD-150P-48 | 48VDC INPUT / OUTPUT UVW 0~34V | 2 - 立即发货 | $177.35 | 查看详情 | ||
VFD-250P-48 | 48VDC INPUT / OUTPUT UVW 0~34V | 1 - 立即发货 | $202.96 | 查看详情 | ||
VFD-350P-48 | 48VDC INPUT / OUTPUT UVW 0~34V | 2 - 立即发货 | $211.55 | 查看详情 |
