微型 Peltier 模块

Same Sky 的微型热电冷却器具有 3.4 mm 至 9.5 mm 的紧凑尺寸

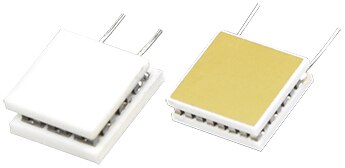

CUI 微型 Peltier 模块的图片Same Sky 的 微型 Peltier 模块提供 3.4 mm 到 9.5 mm 的紧凑封装尺寸,厚度低至 1.95 mm,ΔTmax 额定值为 77°C (Th = 50°C)。由于其可靠的固态结构、精确的温度控制和工作的安静,这些微型 Peltier 模块非常适合不能选择强制风冷的空间受限设计。这些微型热电冷却器还具有 0.7 A 至 3.4 A 的额定电流,0.5 V 至 3.8 V 的额定电压以及 0.2 W 至 4.7 W (Th = 50°C) 的 Qmax 额定值。

特性
  • 3.4 mm 至 9.5 mm 紧凑封装
  • 厚度低至 1.95 mm
  • ΔTmax 额定值为 77°C (Th = 50°C)
  • Imax 从 0.7 A ~ 3.4 A
  • 精确的温度控制

Micro Peltier Modules

图片制造商零件编号描述不同 Th 时 Delta Tmax高度可供货数量价格查看详情
PELTIER, 3.4 X 3.4 X 2.38 MM, 0.CP0734-238PELTIER, 3.4 X 3.4 X 2.38 MM, 0.70°C @ 27°C2.38mm42 - 立即发货$241.43查看详情
PELTIER, 3.4 X 3.4 X 2.77 MM, 0.CP0734-277PPELTIER, 3.4 X 3.4 X 2.77 MM, 0.70°C @ 27°C2.77mm32 - 立即发货$241.43查看详情
PELTIER, 3.4 X 5 X 2.38 MM, 0.7CP073450-238PELTIER, 3.4 X 5 X 2.38 MM, 0.770°C @ 27°C2.38mm104 - 立即发货$241.43查看详情
PELTIER, 4.9 X 3.3 X 2.38 MM, 0.CP074933-238PELTIER, 4.9 X 3.3 X 2.38 MM, 0.70°C @ 27°C2.38mm35 - 立即发货$264.82查看详情
PELTIER, 4.9 X 3.3 X 2.77 MM, 0.CP074933-277PPELTIER, 4.9 X 3.3 X 2.77 MM, 0.70°C @ 27°C2.77mm55 - 立即发货$264.82查看详情
PELTIER, 4.9 X 6.5 X 2.77 MM, 0.CP074965-238PPELTIER, 4.9 X 6.5 X 2.77 MM, 0.70°C @ 27°C2.77mm15 - 立即发货$264.82查看详情
PELTIER, 4.9 X 6.5 X 2.39 MM, 0.CP074965-239PELTIER, 4.9 X 6.5 X 2.39 MM, 0.70°C @ 27°C2.38mm16 - 立即发货$264.82查看详情
PELTIER, 6.5 X 8.1 X 2.38 MM, 0.CP076581-238PELTIER, 6.5 X 8.1 X 2.38 MM, 0.70°C @ 27°C2.38mm57 - 立即发货$275.90查看详情
PELTIER, 6.5 X 8.1 X 2.77 MM, 0.CP076581-238PPELTIER, 6.5 X 8.1 X 2.77 MM, 0.70°C @ 27°C2.77mm16 - 立即发货$275.90查看详情
PELTIER, 6.2 X 6.2 X 2.68 MM, 1CP1062-268PELTIER, 6.2 X 6.2 X 2.68 MM, 170°C @ 27°C2.68mm12 - 立即发货$250.31查看详情
PELTIER, 6.2 X 6.2 X 2.9 MM, 1 ACP1062-268PPELTIER, 6.2 X 6.2 X 2.9 MM, 1 A70°C @ 27°C2.90mm0 - 立即发货$208.19查看详情
PELTIER, 6.2 X 8.3 X 2.68 MM, 1CP106283-268PELTIER, 6.2 X 8.3 X 2.68 MM, 170°C @ 27°C2.68mm49 - 立即发货$255.50查看详情
PELTIER, 6.2 X 8.3 X 2.9 MM, 1 ACP106283-29PPELTIER, 6.2 X 8.3 X 2.9 MM, 1 A70°C @ 27°C2.90mm46 - 立即发货$255.50查看详情
PELTIER, 7.2 X 6 X 2.68 MM, 1 A,CP10726-268PELTIER, 7.2 X 6 X 2.68 MM, 1 A,70°C @ 27°C2.68mm46 - 立即发货$264.82查看详情
PELTIER, 7.2 X 6 X 2.9 MM, 1 A,CP10726-29PPELTIER, 7.2 X 6 X 2.9 MM, 1 A,70°C @ 27°C2.90mm46 - 立即发货$264.82查看详情
PELTIER, 7.6 X 6 X 1.95 MM, 1.4CP147660-195PELTIER, 7.6 X 6 X 1.95 MM, 1.470°C @ 27°C1.95mm60 - 立即发货$264.82查看详情
PELTIER, 7.6 X 6 X 2.36 MM, 1.4CP147660-236PPELTIER, 7.6 X 6 X 2.36 MM, 1.470°C @ 27°C2.36mm1 - 立即发货$264.82查看详情
PELTIER, 11 X 8.8 X 2.71 MM, 1.5CP151188-271PELTIER, 11 X 8.8 X 2.71 MM, 1.570°C @ 27°C2.71mm8 - 立即发货$275.90查看详情
PELTIER, 8.1 X 8.1 X 2.22 MM, 1.CP1881-222PELTIER, 8.1 X 8.1 X 2.22 MM, 1.70°C @ 27°C2.22mm100 - 立即发货$255.50查看详情
PELTIER, 8.1 X 8.1 X 2.54 MM, 1.CP1881-254PPELTIER, 8.1 X 8.1 X 2.54 MM, 1.70°C @ 27°C2.54mm89 - 立即发货$255.50查看详情
PELTIER, 8.8 X 8.8 X 2.19 MM, 2CP2088-219PELTIER, 8.8 X 8.8 X 2.19 MM, 270°C @ 27°C2.19mm56 - 立即发货$275.90查看详情
PELTIER, 8.8 X 8.8 X 2.58 MM, 2CP2088-258PPELTIER, 8.8 X 8.8 X 2.58 MM, 270°C @ 27°C2.58mm41 - 立即发货$275.90查看详情
PELTIER, 9.5 X 9.5 X 4.6 MM, 3.4CP3495-46PELTIER, 9.5 X 9.5 X 4.6 MM, 3.470°C @ 27°C4.60mm14 - 立即发货$275.90查看详情
发布日期: 2020-10-14
