Bel Power Solutions

RCM200 Dual Output Series DC-DC Converters

Bel Power Solutions offers reliable power supplies for railway and transportation systems

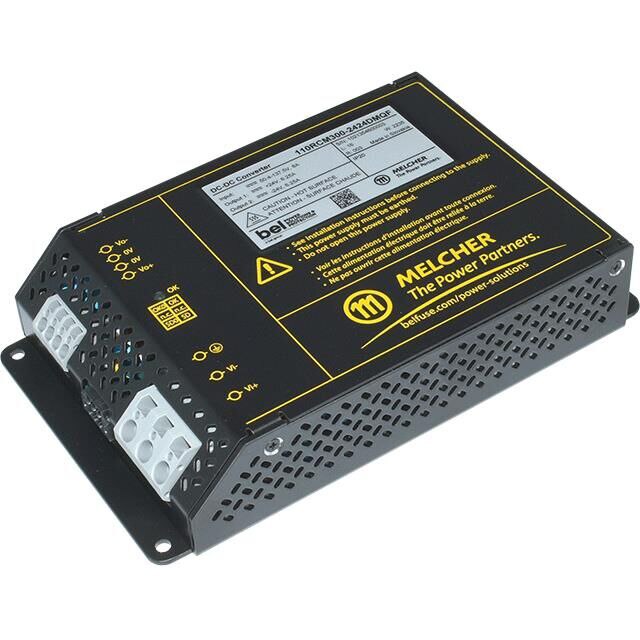

Image of Bel Power Solutions RCM200 Dual Output Series DC-DC Converters Bel Power Solutions RCM200 dual output DC-DC converters are designed for chassis mounting and exhibit a closed housing with cooling openings, offering extremely high efficiency and power density. These dual-output DC-DC converters boast overtemperature, overvoltage, overcurrent, and overload protections. The RCM200 DC-DC converters measure 116 mm x 38 mm x 188.6 mm and comply with EN 50155, EN 50121-3-2, and AREMA. These DC-DC converters are also safety-approved to IEC/EN 62368-1, CSA 62368-1, and UL 62368-1.

Features
  • RoHS lead-free solder product
  • Dual output +15 V/-15 V or +24 V/-24 V
  • Closed housing for chassis mounting
  • Extremely high efficiency and high power density
  • Low inrush current
  • Three connectors: input, output, and auxiliary
  • Overtemperature, overvoltage, overcurrent, and overload protections
  • Compliant with EN 50155, EN 50121-3-2, and AREMA
  • Safety-approved to IEC/EN 62368-1, CSA 62368-1, and UL 62368-11
Applications
  • Railway and transportation systems

RCM200 Dual Output Series DC-DC Converters

图片制造商零件编号描述电压 - 输入（最小值）电压 - 输入（最大值）可供货数量价格查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$4,072.40查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,158.36查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMFDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$3,953.25查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMQDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$3,953.25查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMKDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$3,976.80查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMQFDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$4,000.34查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMQKDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$4,023.90查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMFKDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$4,023.90查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMFDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,035.67查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMQDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,035.67查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMKDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,059.21查看详情
DC-DC,50.4-137.5V INPUT, +/-15V/110RCM200-1515DMQFKDC-DC,50.4-137.5V INPUT, +/-15V/50.4V137.5V0 - 立即发货$4,070.98查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMQFDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,082.74查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMFKDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,106.29查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMQKDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,106.29查看详情
DC-DC,16.8-45V INPUT, +/-15V/6.724RCM200-1515DMQFKDC-DC,16.8-45V INPUT, +/-15V/6.716.8V45V0 - 立即发货$4,153.34查看详情
发布日期： 2024-11-18
